ELECTRICAL COMPONENTS
- 292 -
CHECKING THE SWITCH
CHECKING THE SWITCH
Use multimeter to check the terminals fo
r
continuity. If the continuity is faulty at any point,
replace the switch.
1NOTE:
Set the multimeter to “0” before starting the
test.
• The multimeter should be set to the “ × 1”
range when testing the switch for continuity.
• Turn the switch on and off a few times when
checking it.

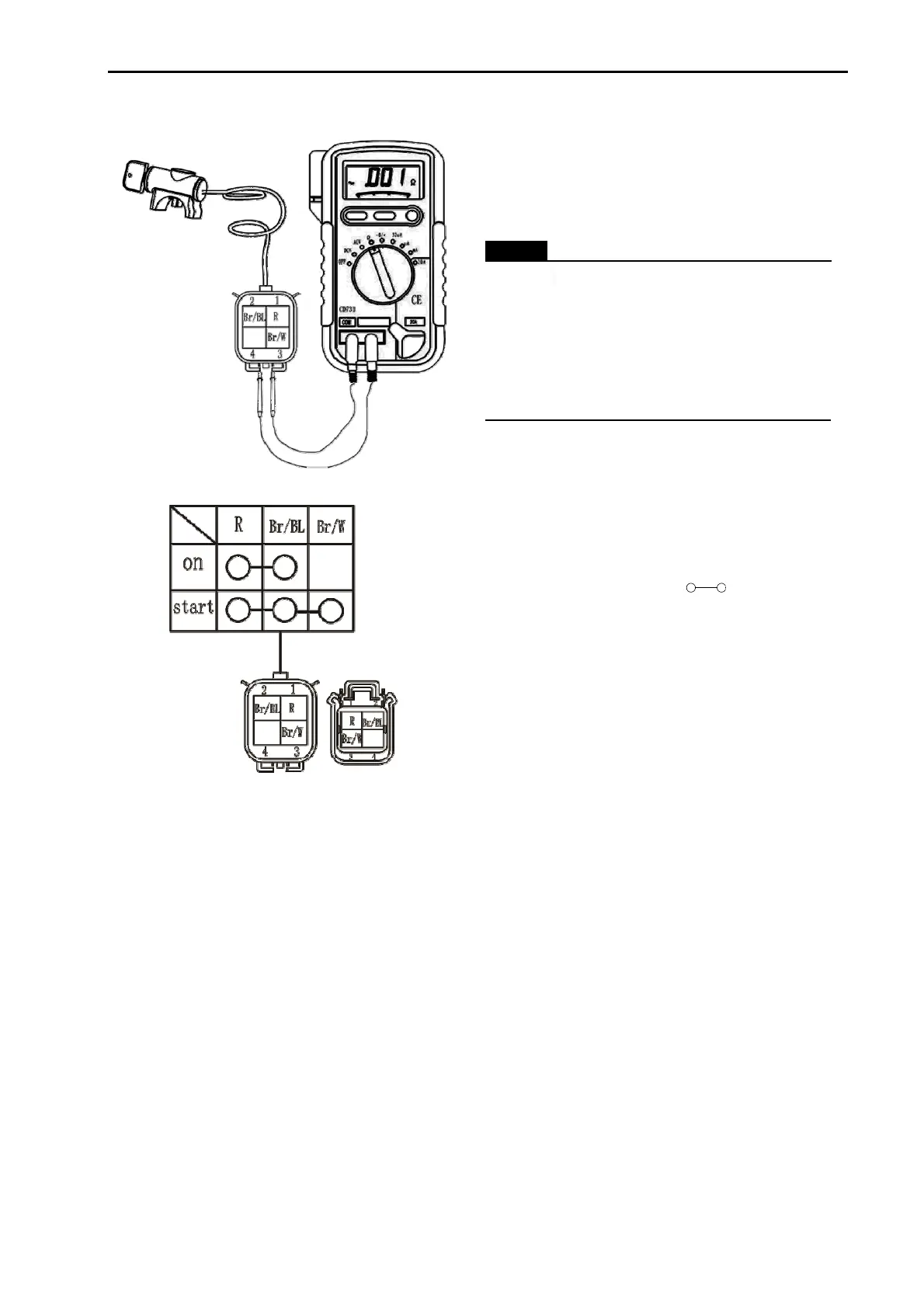

The terminal connections for switches (main
switch, light switch, etc.) are shown in a chart
similar to the one on the left. This chart shows the
switch positions in the column and the switch lead
colors in the top row.
For each switch position, ” indicates the
terminals with continuity.
The example chart shows that:
There is continuity between the “Brown/Blue
and Red” leads when the switch is set to “ON”.
