CHASSIS

- 284-

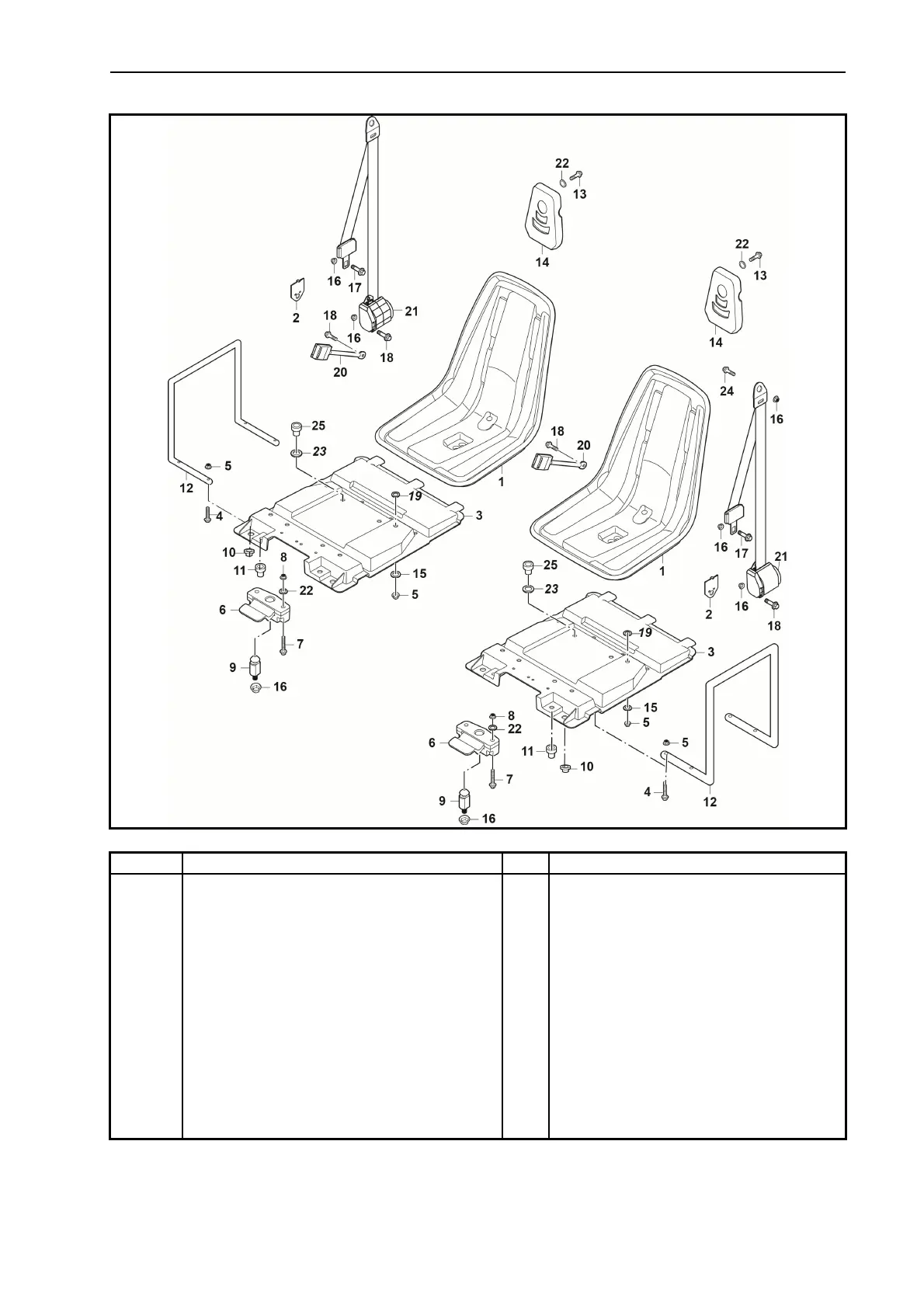

SEAT

No. Part Name Qty Remarks

Removing the seat

1 Seat assy 4

2 Safety belt placing plate 4

3 Seat mounting board 4

4 Hexagon flange bolt M8×30 16

5 Hexagon flange Nut M8 32

6 Seat locker 4

7 Hexagon flange bolt M6×40 8

8 Hexagon flange Nut M6 8

9 Locker bracket, seat 4

10 Rubber cushion Φ30-3 8

11 Rubber cushion Φ24-15 8
