CHASSIS
- 209-
BRAKE SYSTEM
PREPARATION FOR CHECKING BEFORE
THE MAINTENANCE OF THE BRAKE SYSTEM
Brake system is crucial to the life safety of the
operator and therefore must be periodically in-
spected and maintained.
This vehicle uses the double return route
hydraulic pressure disc brake system. Please
follow the tips of inspection as below.
①To check the amount of liquid in the oil cup. If it
is lower than the minimum mark, refill the box
with the same type of fluid as was
recommended by the manufacturer, to ensure
to fluid level is higher than the minimum mark.
② The brake pedal should be kept between
20mm-30mm, Otherwise, please adjust the
screw to meet required travel distance.
1. Inspect the brake pedal does maintain the
certain counter-tension
When checks disk brake plate, the saved liquid
in the oil cup will pour automatically into the
pressure pipe and the liquid level along with it
to reduce, the periodic inspection the disk
brake plate liquid volume will be an important
project.
Must use DOT4 Brake Fluid
2.

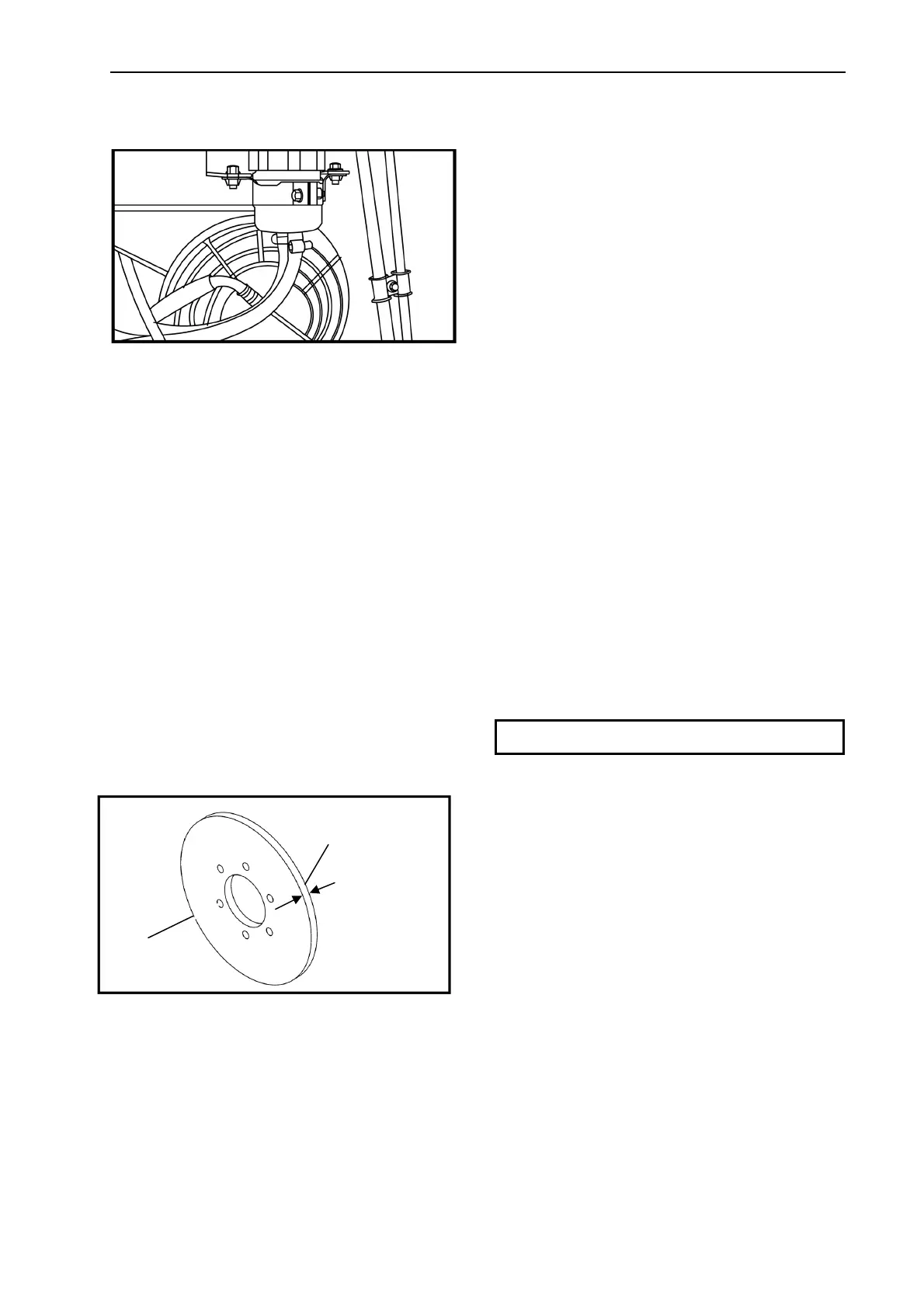

·rear disk brake plate ①
·thickness ②
Periodical inspection of the wear condition o
rear disk brake plate is also necessary. Disk
brake plate must be replaced depending on its
wear condition.
3. Disk brake plate uses hydraulic pressure o
the brake fluid. Therefore, fuel pipe must be
periodically inspected and replaced.
Inspection method: If the oil tubing has the
aging, crack or distortion, must replace the oil
tubing.
①
②
