ENGINE

- 147 -

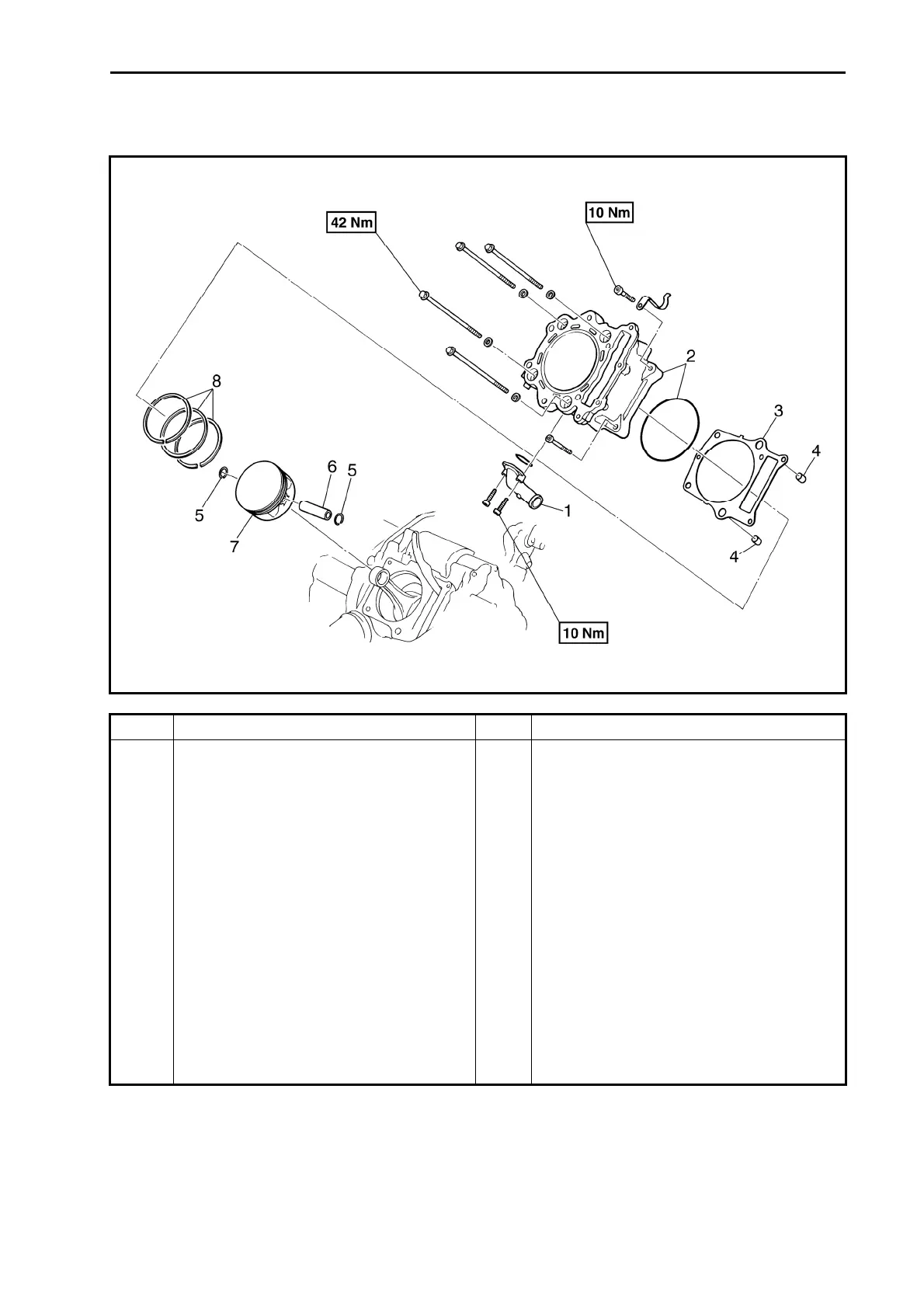

CYLINDER AND PISTON

No. Part Name Qty Remarks

Removing the cylinder and piston Remove the parts in the order listed.

Water pump outlet hose

Cylinder head

1 Coolant inlet joint 1

2 Cylinder/O-ring 1/1

3 Cylinder gasket 1

4 Dowel pin 2

5 Piston pin clip 2

6 Piston pin 1

7 Piston 1

8 Piston ring set 1

For installation, reverse the removal

procedure.
