ENGINE

- 156 -

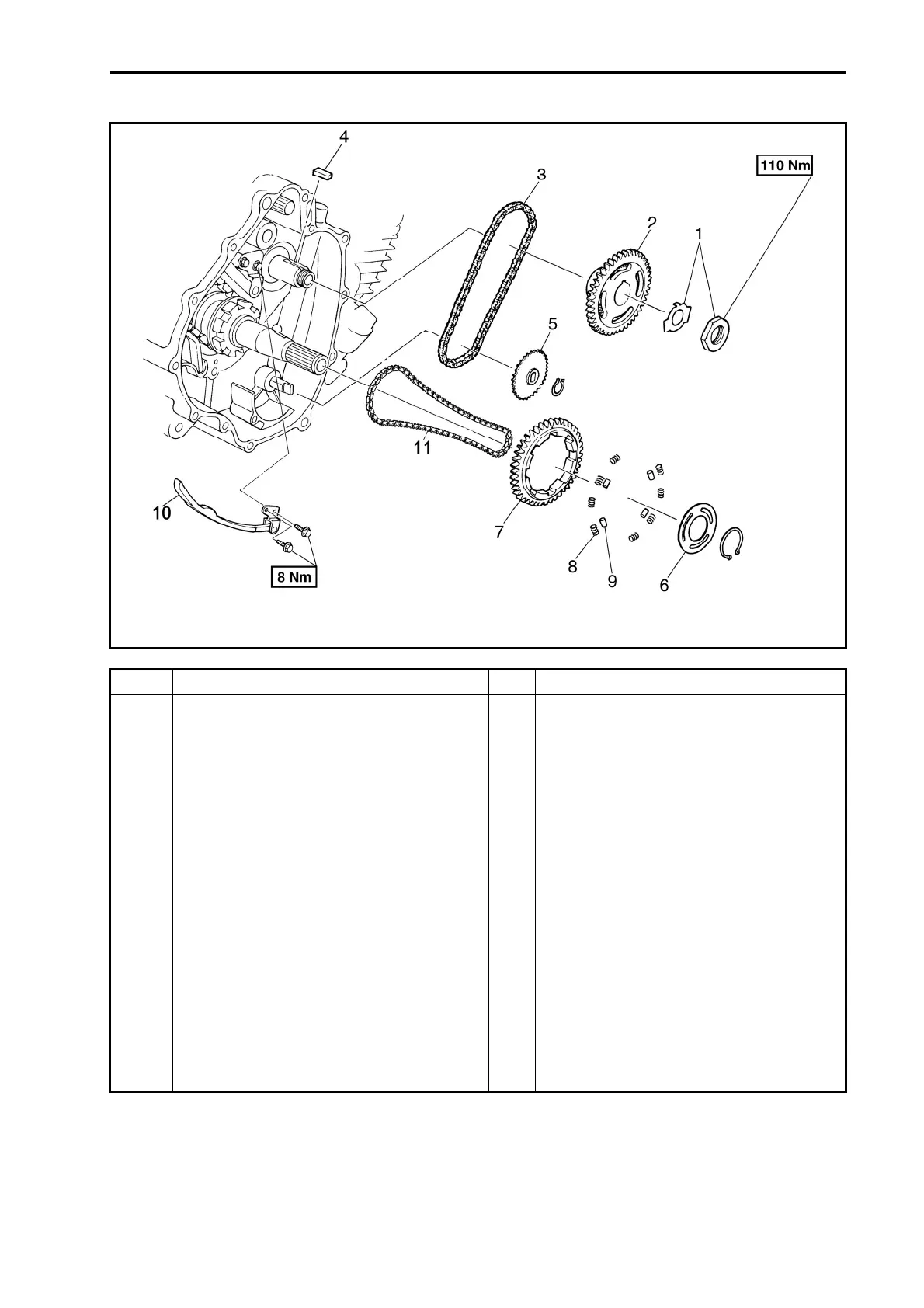

BALANCER GEARS AND OIL PUMP GEARS

No. Part Name Qty Remarks

Removing the balancer gears and oil

pump gears

Remove the parts in the order listed.

Nut/lock washer

1/1

2 Balancer driven/oil pump drive gear 1

3 Chain 1

4 Straight key 1

5 Oil pump driven gear 1

6 Plate 1

7 Balancer drive gear 1

8 Spring 8

9 Pin 4

10 Timing chain guide (intake side) 1

11 Timing chain 1

For installation, reverse the removal

procedure.
