ENGINE

- 178 -

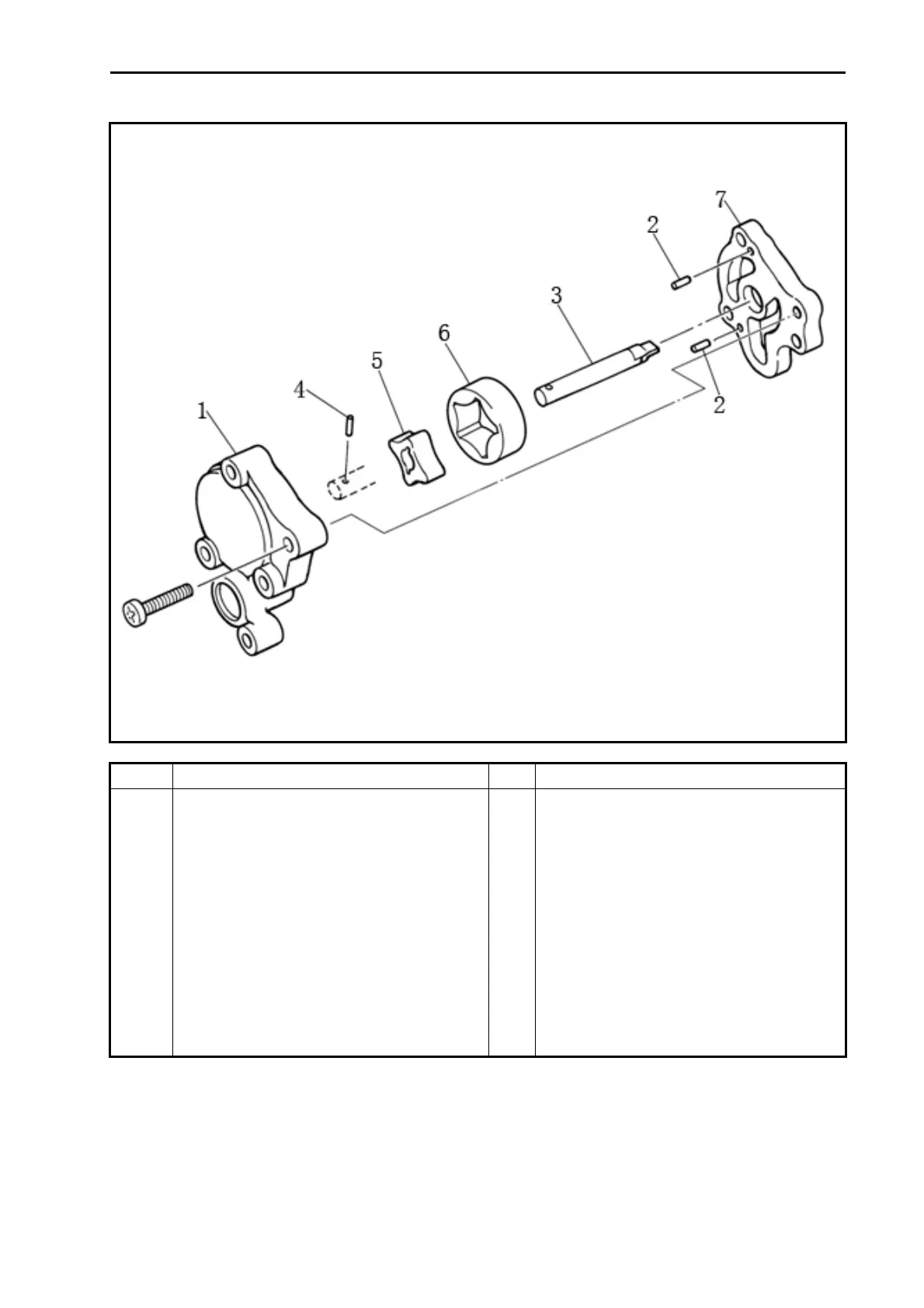

OIL PUMP

No. Part Name Qty Remarks

Disassembling the oil pump Remove the parts in the order listed.

1 Rotor cover 1

2 Pin 2

3 Shaft 1

4 Pin 1

5 Inner rotor 1

6 Outer rotor 1

7 Oil pump housing 1

For assembly, reverse the disassembly

procedure.
