MAINTENANCE AND ADJUSTMENT OF THE UTV
- 125-
related electrical devices.
d. If the fuse immediately blows again, check the
electrical circuit.
Description
Current
rating
Quantity
Main 30 A 1
Lighting
system fuse
15 A 1
Ignition 10 A 1
Terminal
(Auxiliary DC jack)
10 A 1
4WD(Four wheel
drive)
5 A 1
Signaling
system fuse
10 A 1
Backup fuse 10 A 1
Reserve 30 A 1
Reserve 15 A 1
Reserve 10 A 1
Reserve 5 A 1
WARNING
:
Ever use a fuse with a rating other than that
specified. Never use other materials in place
of a fuse. An improper fuse may
cause
extensive damage to the electrical
system, a
malfunction of the lighting and
ignition
systems and could possibly cause
a fire.
4. Install:
• battery case cover
5. Close the hood.

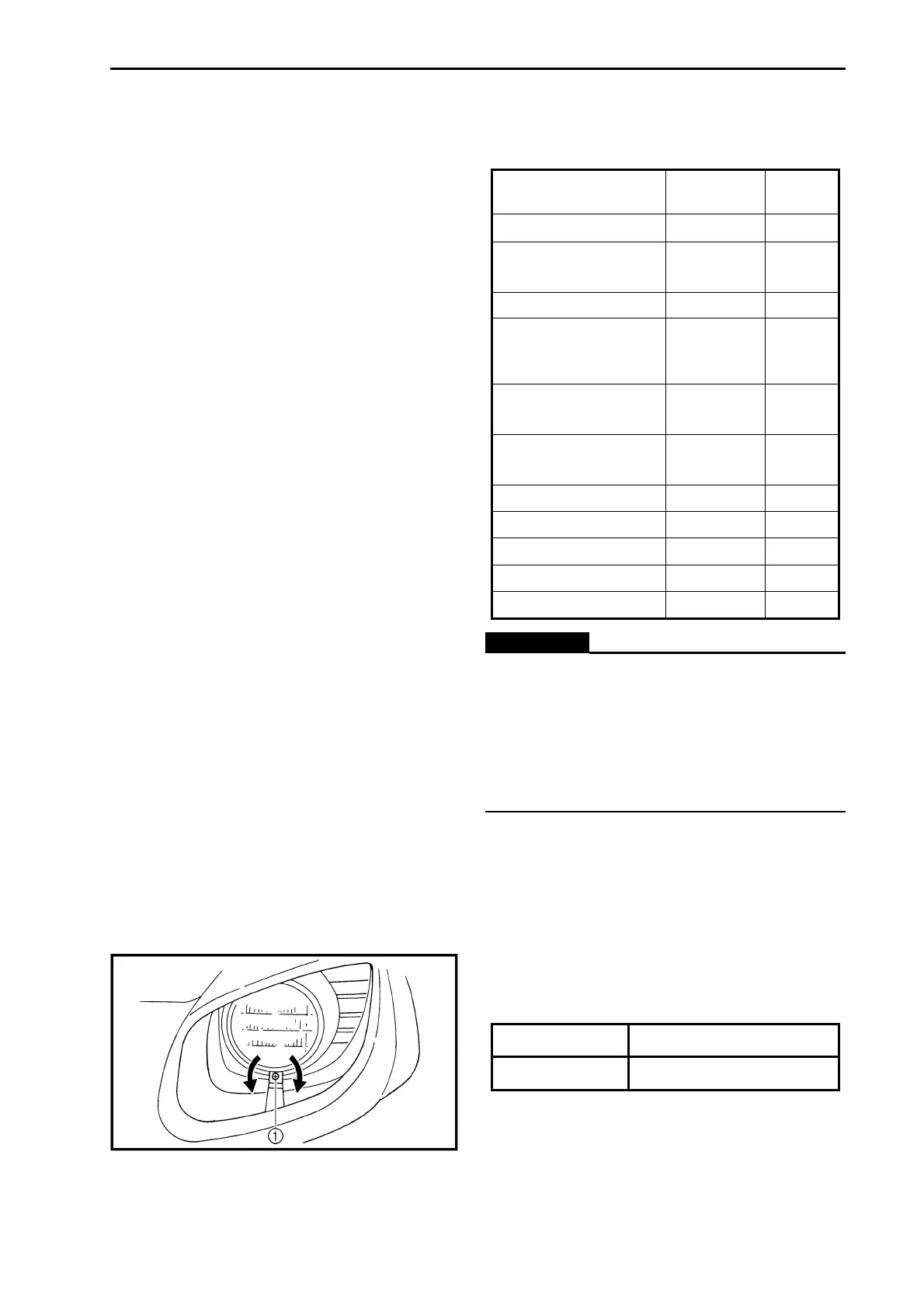

ADJUSTING THE HEADLIGHT BEAM
1. Adjust:
• headlight beam (vertically)
• turn the adjuster in or out.①
Turning in Headlight beam raised.
Turning out Headlight beam lowered.
