CHASSIS

- 257-

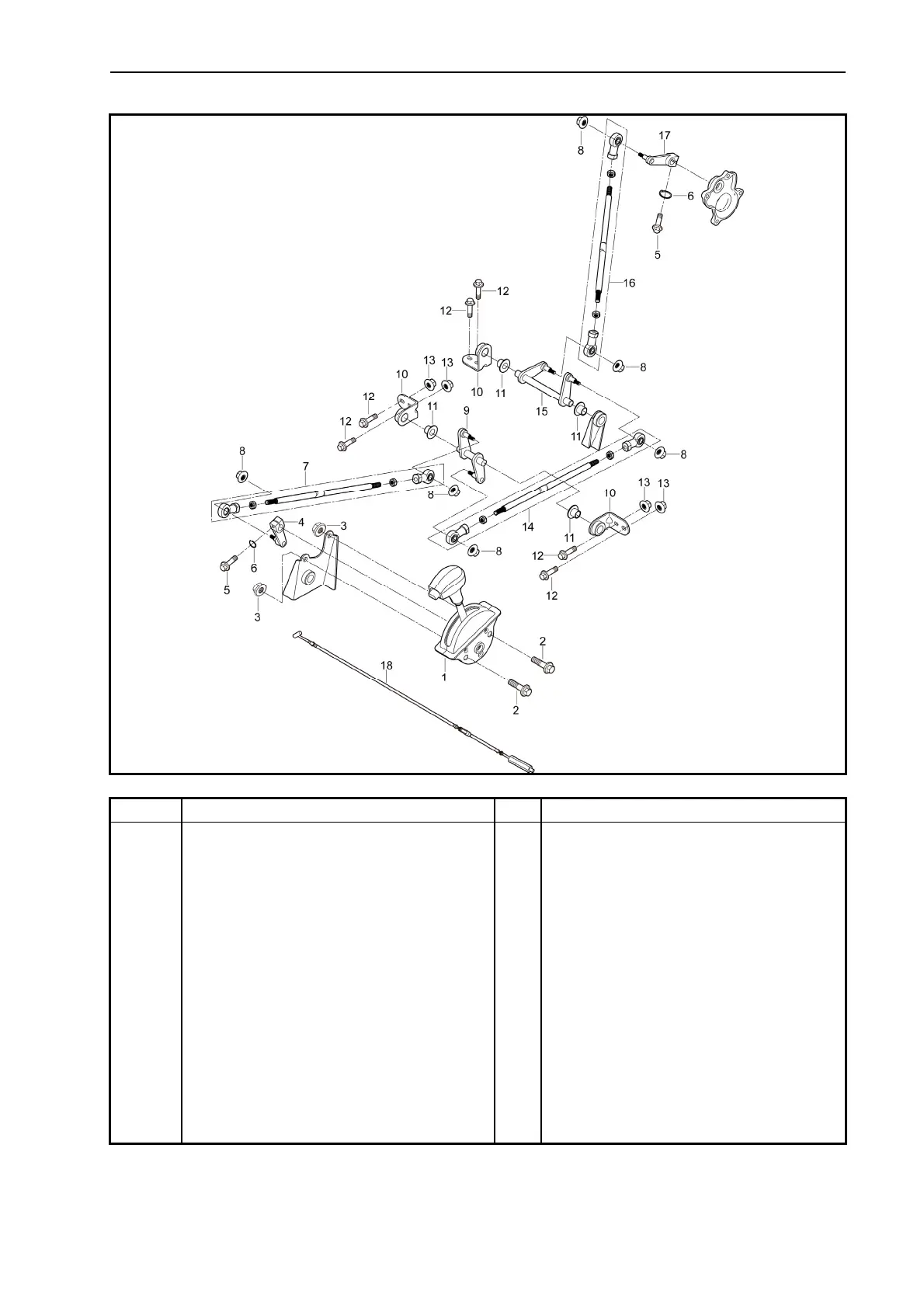

REVERSE MECHANISM PARTS

No. Part Name Qty Remarks

Removing reverse mechanism

1 Gear Shifter Assembly 1

2 Hexagon Flange BoltM8×45 2

3 Hexagon Flange Nut M8 2

4 Gearshift arm 1

5 Hexagon Flange BoltM6×20 2

6 Spring Washer-8 2

7 Gear Shift Rod I 1

8 Hexagon Flange Locked Nut M6 6

9 steering lever I,Gearshift 1

10 Shift steering arm installation I 3

11 Nylon BushingΦ12×Φ15.5 4

12 Hexagon Flange Bolt M6×16 6
