CHASSIS

- 238-

REAR WHEELS

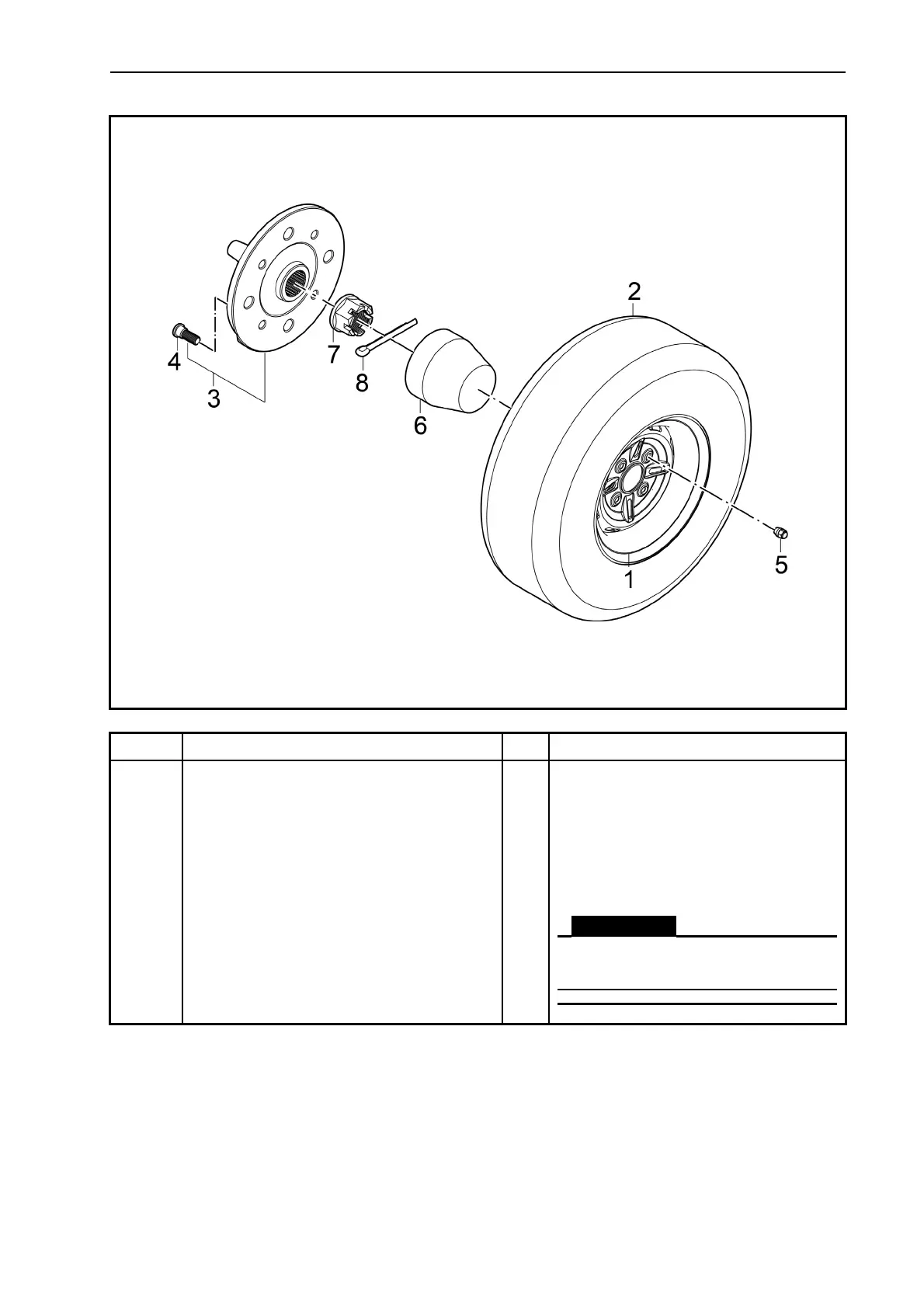

No. Part Name Qty Remarks

Removing the rear wheel

1 Rear rim 2

2 Rear tyre 2

3 Rear hub 2

4 Bolt M10×30 4

5 Nut M10 8

1WARNING

：

Securely support the vehicle so

There is no danger of it falling over.

Wheel decoration cover Ⅳ

7 Nut M22×1.5 2

8 Cotter pin 3.2×50 2
