CHASSIS

- 252-

Rear Axle

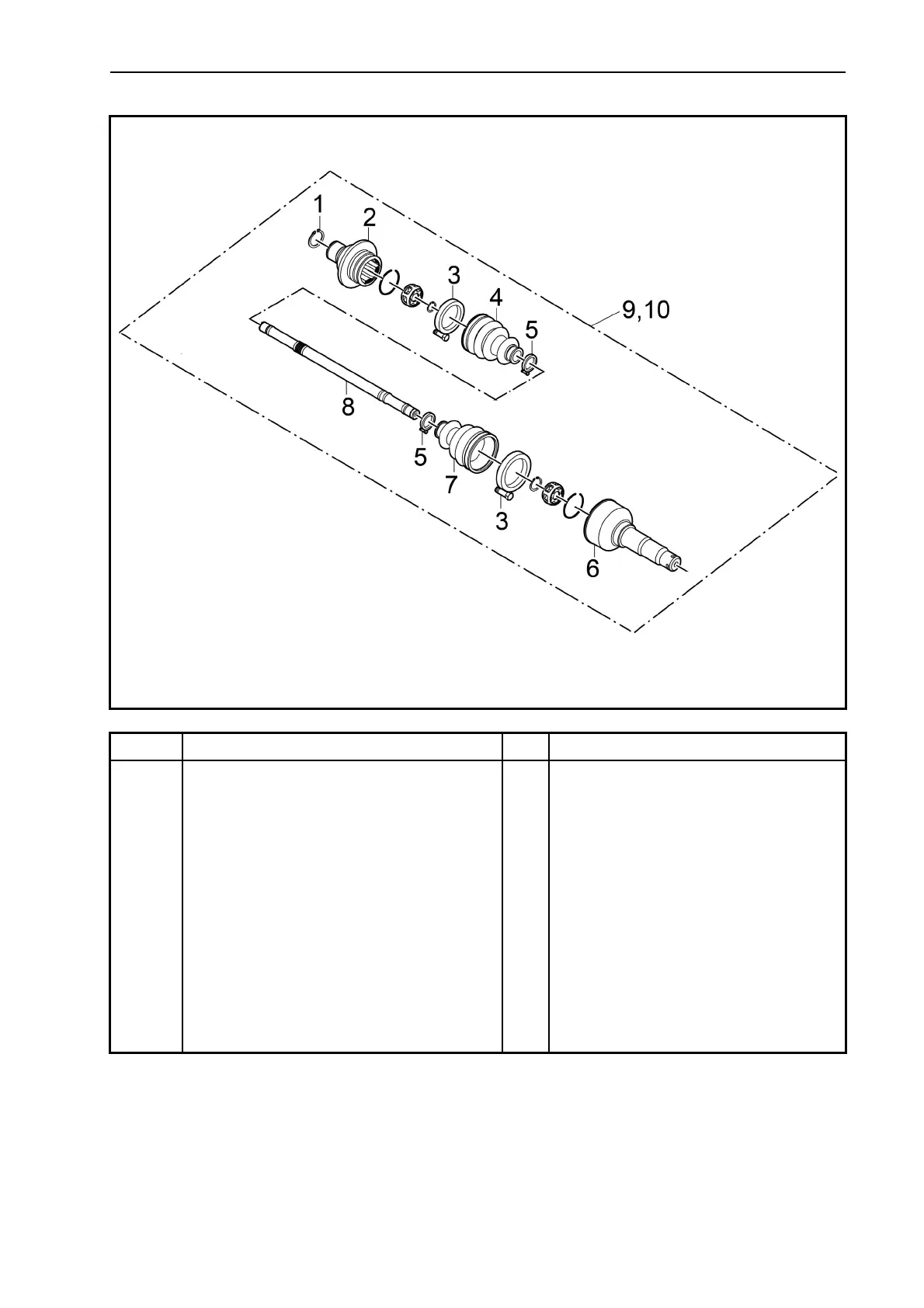

No. Part Name Qty Remarks

Removing the rear axle

1 Circlip 2

2 Double off-set joint assembly 2

3 Hoop A, dust P shed Φ80 4

4 Inner rubber dust-P cover (C-1520) 2

5 Hoop B, dust P shed Φ32 4

6 Double off-set joint assembly 2

7 Inner rubber dust-p cover (C-1605) 2

8 Half axle assembly 2

9 Rear left C.V axle 1

10 Rear right C.V axle 1
