ENGINE

- 160 -

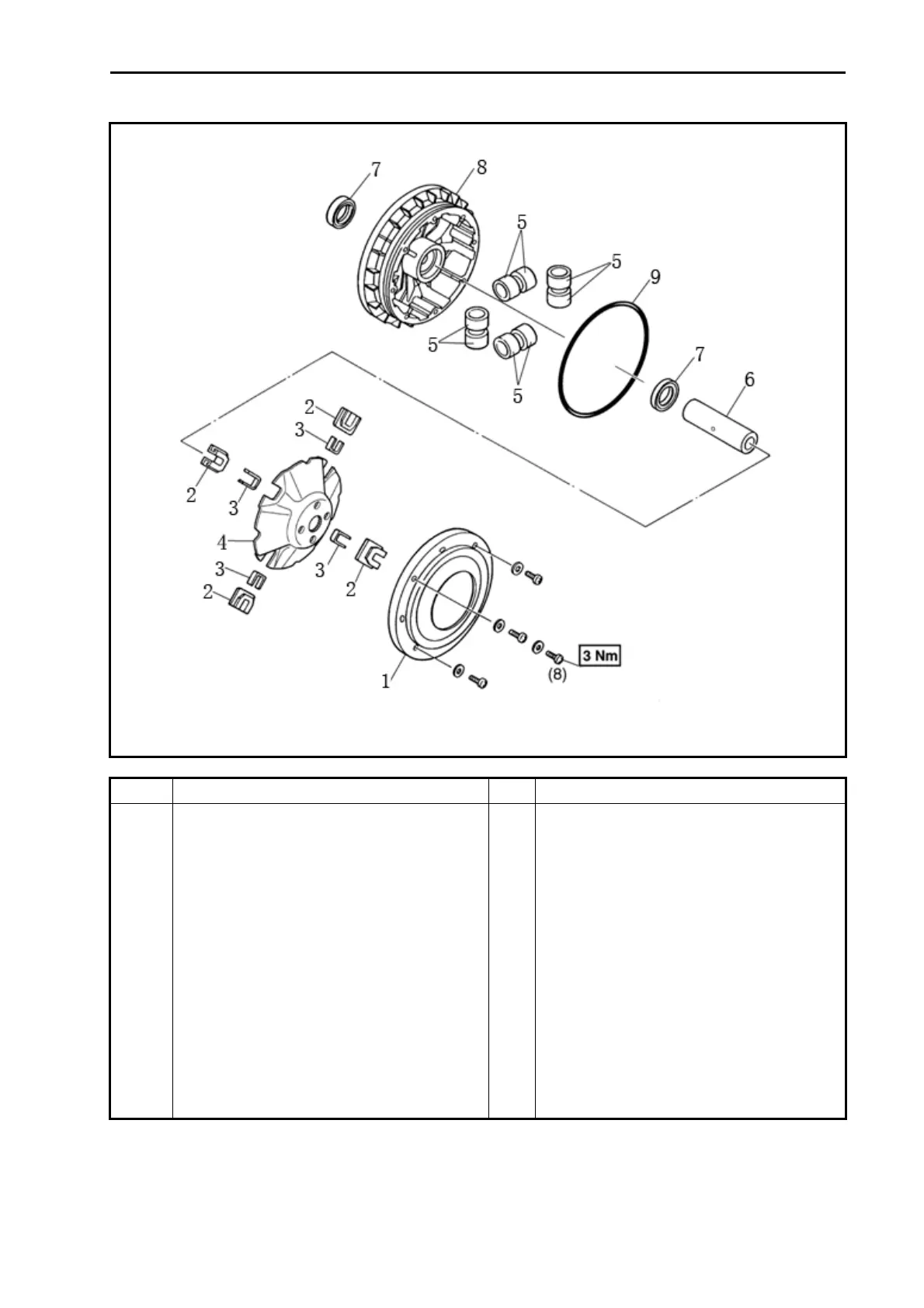

PRIMARY SHEAVE

No. Part Name Qty Remarks

Disassembling the primary sheave Remove the parts in the order listed.

1 Primary pulley sheave cap 1

2 Primary pulley slider 4

3 Spacer 4

4 Primary pulley cam 1

5 Primary pulley weight 8

6 Collar 1

7 Oil seal 2

8 Primary sliding sheave 1

9 O-ring 1

For assembly, reverse the disassembly

procedure.
