ENGINE

- 177 -

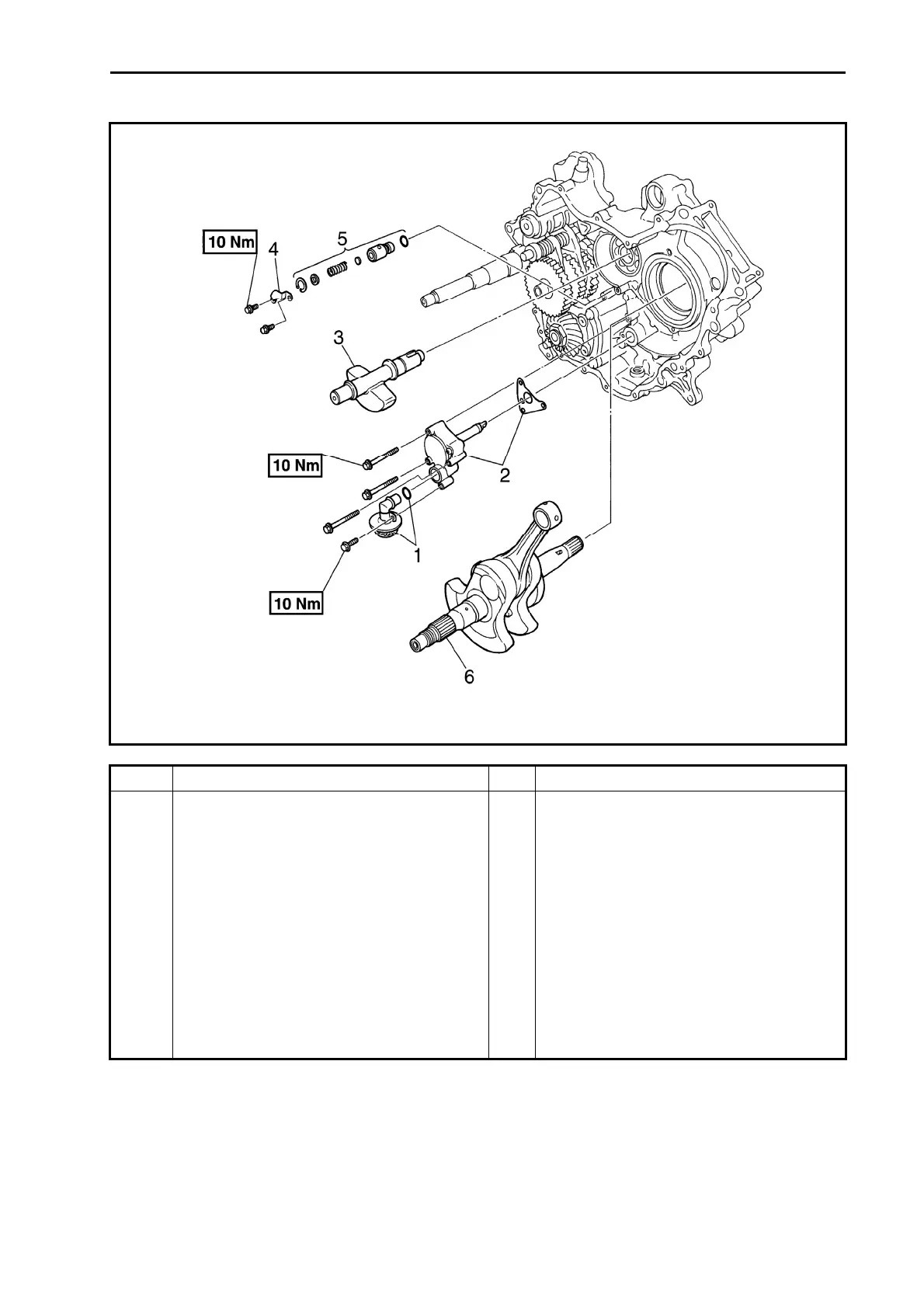

CRANKSHAFT AND OIL PUMP

No. Part Name Qty Remarks

Removing the crankshaft and oil pump Remove the parts in the order listed.

Crankcase separation

1 Oil strainer/O-ring 1/1

2 Oil pump assembly/gasket 1/1

3 Balancer 1

4 Plate 1

5 Relief valve assembly 1

6 Crankshaft 1

For installation, reverse the removal

procedure.
