Lower Kickout ON/OFF, Stop Height Setting
Rotate selector knob (2) to highlight ON (8).
ON/OFF Selection
Press selector knob (2) to turn ON (enabled).
(A box next to ON turns green.)
This enables the setting of the lift arm height.
Press selector knob (2) again to turn OFF (disabled).
When the lower kickout is ON (enabled), indicator (12)
will be displayed on the monitor.

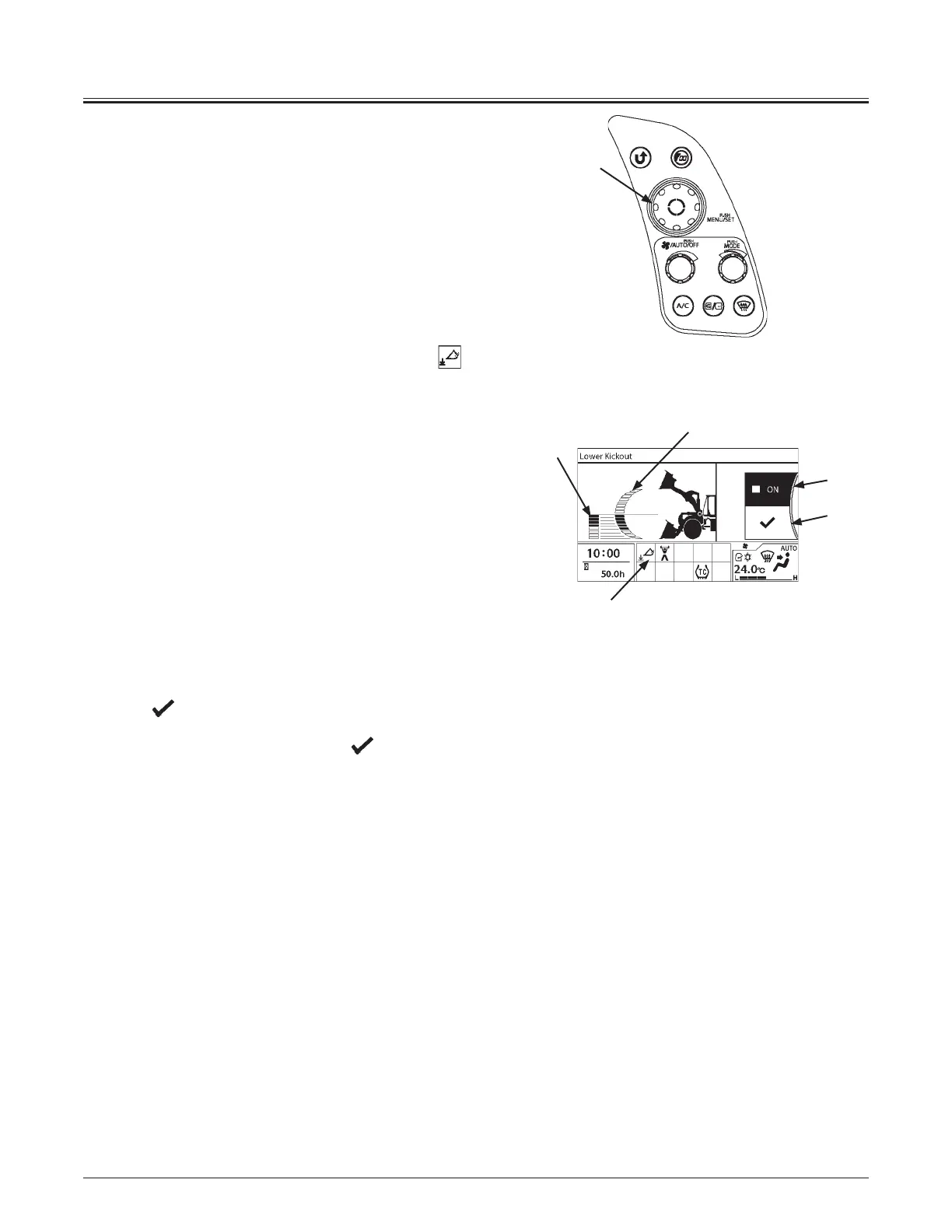

Display content
Segment (10) indicates current set value of the lower
kickout.
Segment (11) indicates current height of the lift arm.
Setting Operation
When the lower kickout is ON (enabled), the lift arm stop
height can be set.
When the lift arm height changes by operating the lift
arm control lever, the height is displayed on segment
(11).
When the lift arm height is within the setting range, the
mark (9) will be displayed.
Rotate selector knob (2) to highlight (9).
Press selector knob (2) to change the lower kickout
setting value.
When the lower kickout setting value changes, the value
will be displayed on segment (10).
