OPERATOR'S STATION
1-85

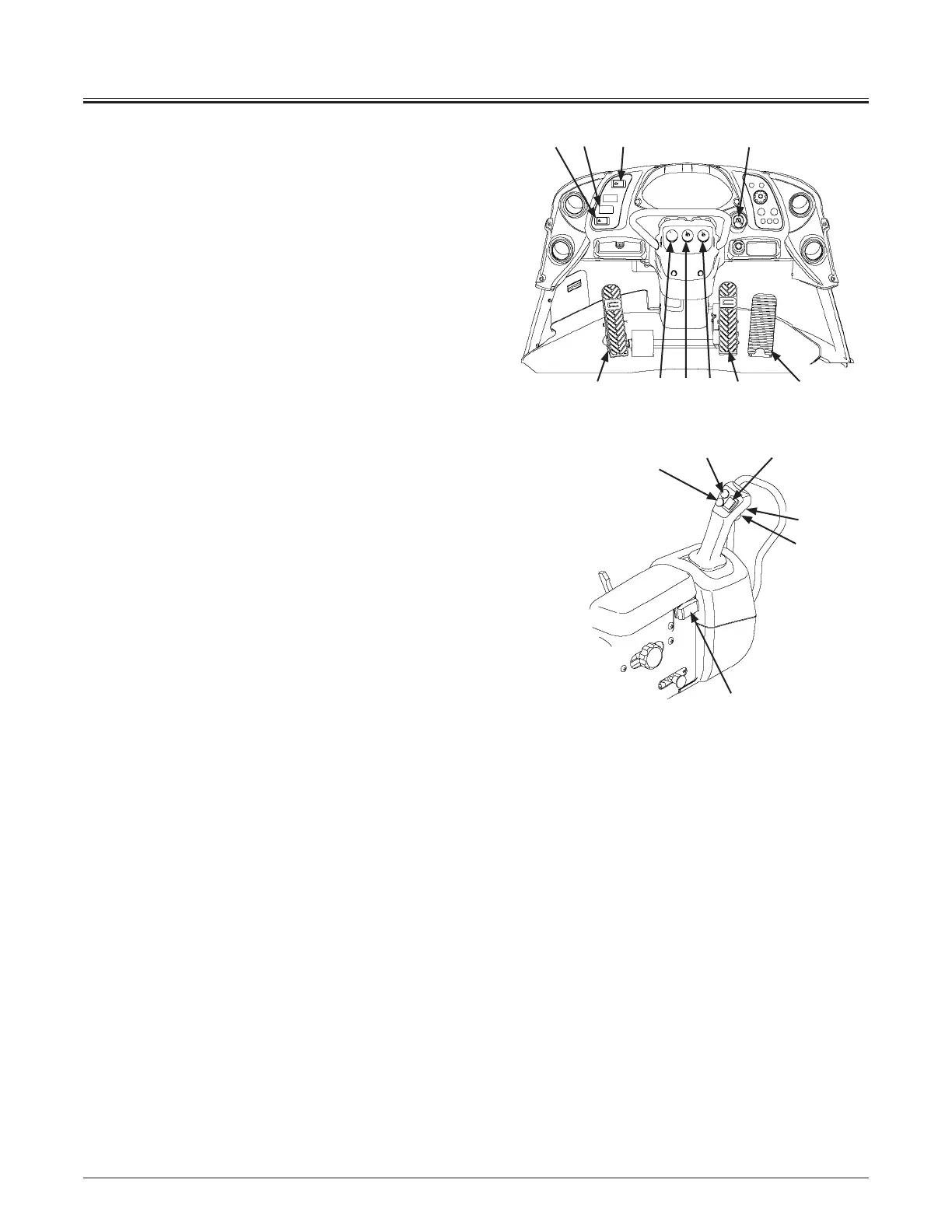

Front Console Switches, Pedals, and Joystick
Steering
1- Hazard Switch
2- Work Light Switch
3- Parking Brake Switch
4- Key Switch
5- Accelerator Pedal
6- Brake Pedal
7- Front Window Wiper Switch
8- Rear Window Wiper Switch
9- Light Switch
10- Brake/Declutch Pedal
11- Forward/Reverse Switch
12- Shift Up Switch (without steering wheel)
Quick Power Switch (with steering wheel)
13- Shift Down Switch (without steering wheel)
Down Shift Switch (DSS) (with steering wheel)
14- Joystick Steering System Switch
15- Horn Switch
16- Hold Switch
115Z7B-1-81-1
95Z7-1-85-1
1112
15
16
13
14
5678910
1 42 3
