MAINTENANCE
7-10

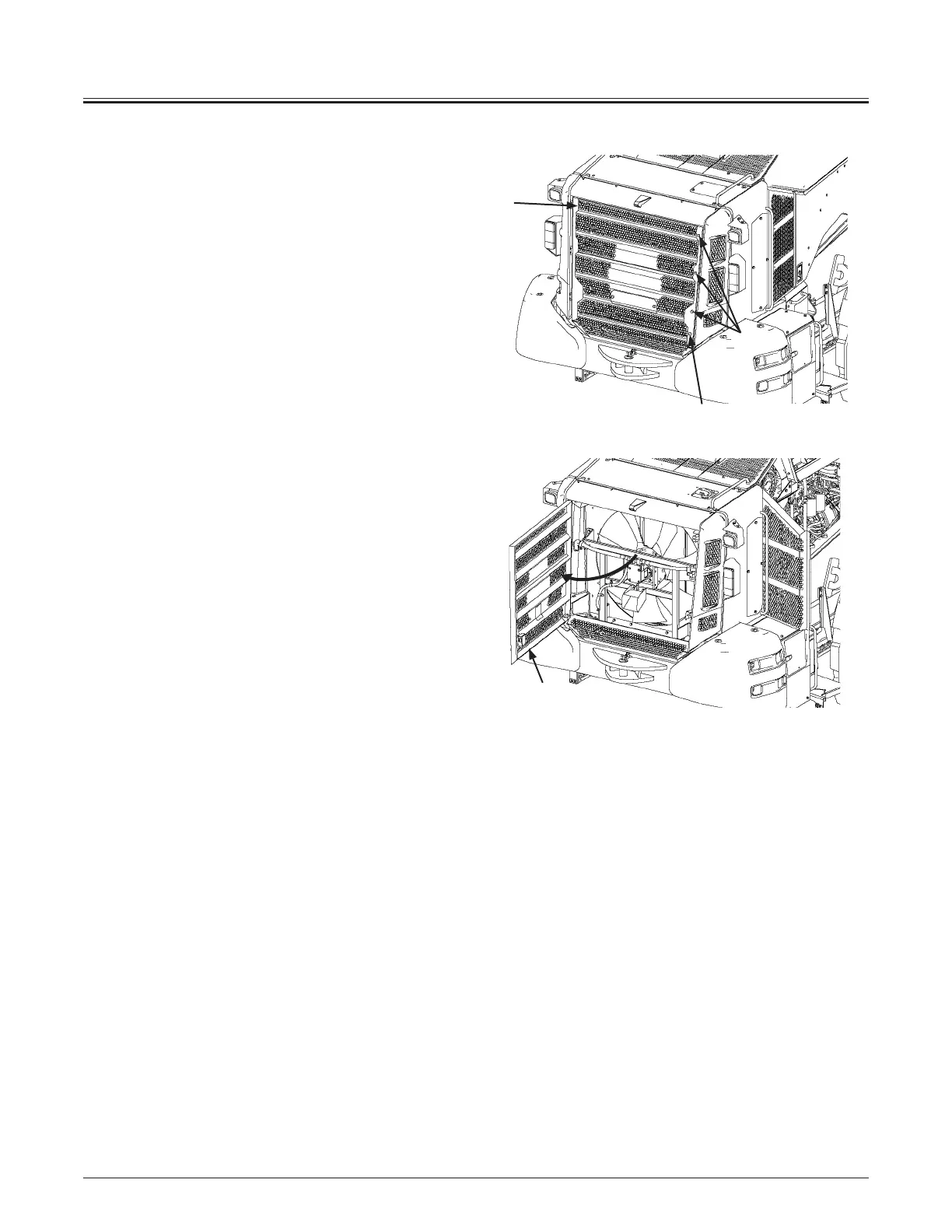

Rear Grille
d
WARNING: Open or close rear grille (4) only after
stopping the engine. It is very dangerous if you are
entangled in the cooling fan. Before operating the
machine, always check that the rear grille is well
latched.
f
NOTE: The starter key cannot be removed from latch (3)
while rear grille (4) is being opened.
Remove bolt caps (1) and bolts (2). Release latch (3) with
the starter key to unlock rear grille (4).
The rear grille opens and the cooling fan can be cleaned.
After closing rear grille (4), turn and remove starter key (3)
to lock rear grille (4). Tighten bolts (2) and install caps (1).
1,2
3
4
4
115Z7B-7-10-1
115Z7B-7-10-2
