OPERATOR'S STATION

1-71

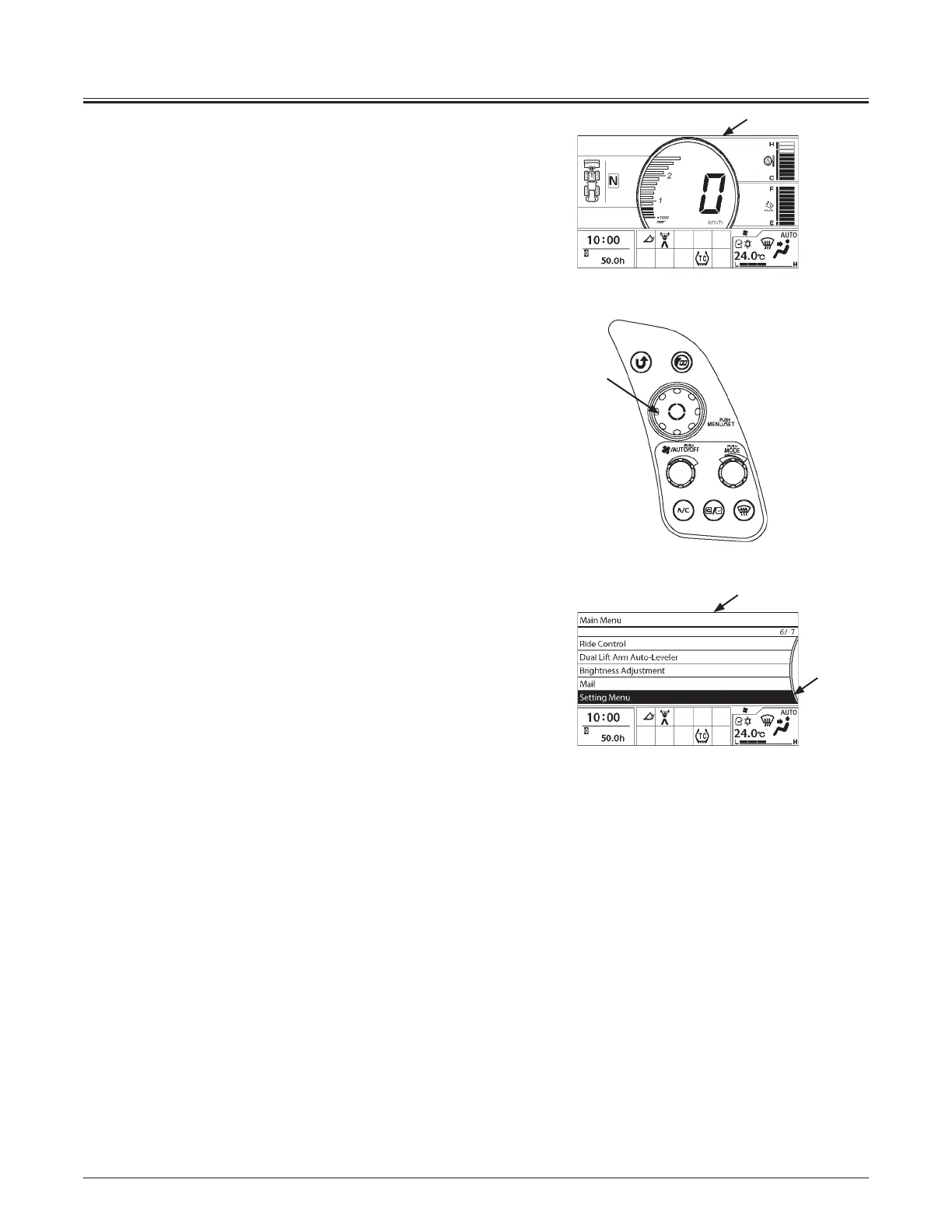

Main Menu Display Order Change

Menu sequence of "Ride Control" (option), "Dual Lift Arm Auto

Leveler", "Brightness Adjustment" and "Mail" can be changed

in this screen. Frequently used menu can be located on top of

the screen.

1. Press selector knob (2) while displaying Basic Screen (1)

to display Main Menu screen (3).

2. Rotate selector knob (2) to highlight Setting Menu (4).

MNEC-01-006

MNHG-01-103EN

MNHG-01-140EN
