OPERATOR'S STATION

1-65

Parallel/Tandem Switching Height Setting

With parallel/tandem circuits, the lift arm and bucket can be

operated at the same time, under a set height. This setting is

adjustable.

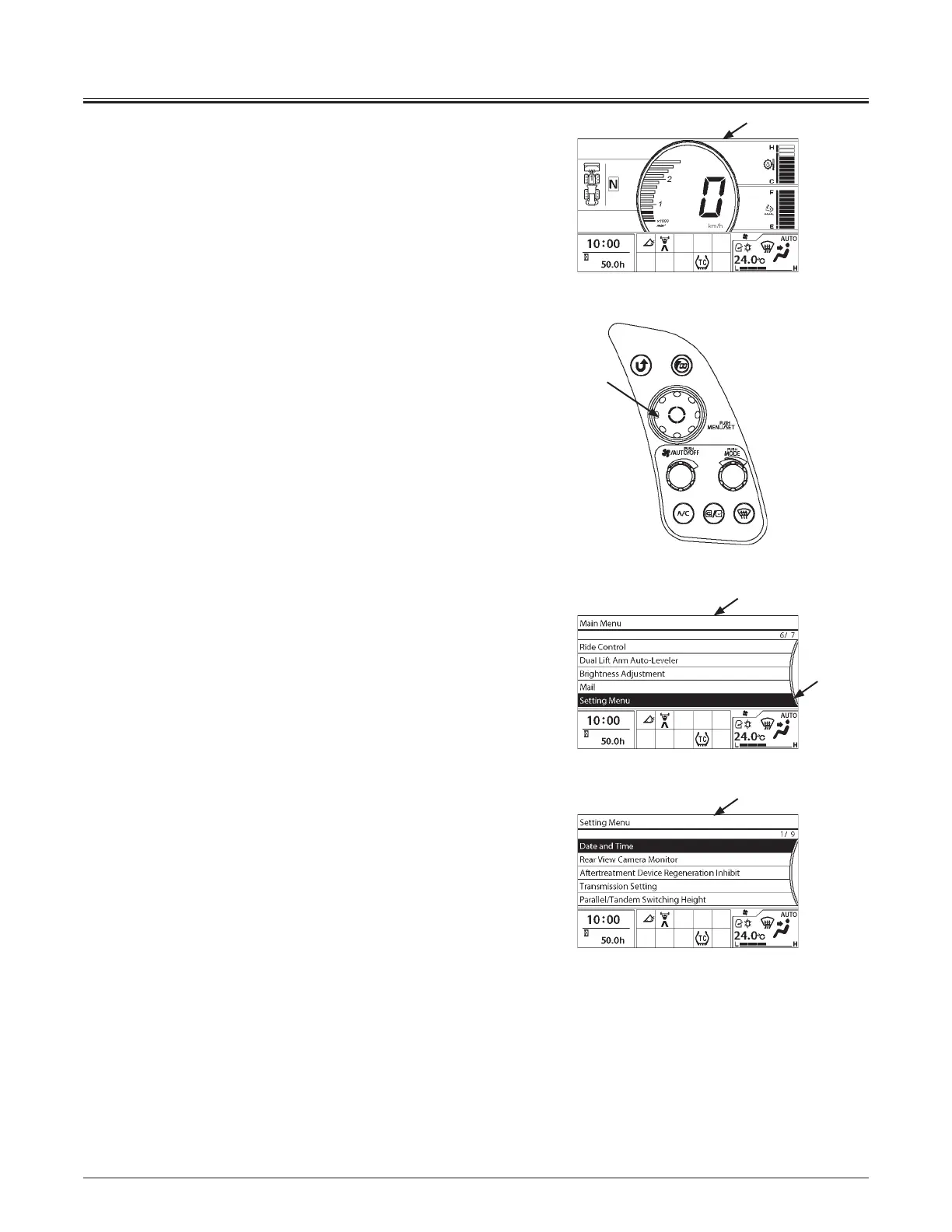

1. Press selector knob (2) while displaying basic screen (1)

to display main menu screen (3).

2. Rotate selector knob (2) to highlight Setting Menu (4).

3. Press selector knob (2) to display Setting Menu screen

(5).

MNEC-01-006

MNHG-01-140EN

MNHG-01-141EN

MNHG-01-103EN
