OPERATOR'S STATION
1-11

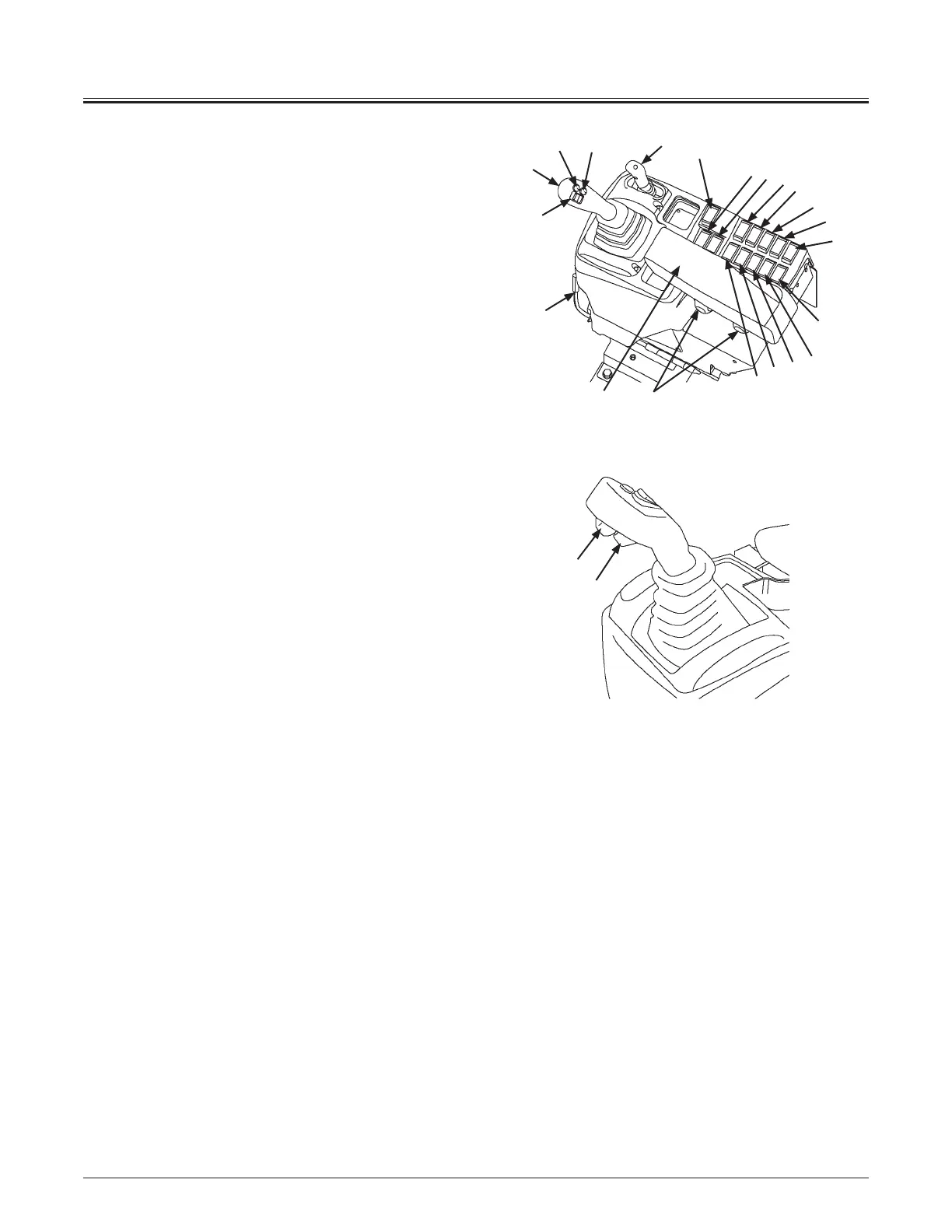

Right Console
Multi-Function Joystick Type
1- Turn Signal Switch
2- Multi-Function Joystick Lever
3- Quick Power Switch
4- DSS (Down Shift Switch)
5- Auxiliary Control Lever (Option)
6- Control Lever Lock Switch
7- Declutch Position Switch
8- Travel Mode Selector Switch
9- Power Mode Selector Switch
10- Auxiliary
11- Fan Reverse Rotation Switch
12- Hydraulic Coupler Switch (Option)
13- Auxiliary
14- Secondary Steering Operation Check Switch (Option)
15- Aftertreatment Device Regeneration Switch
16- Auxiliary
17- 2nd/3rd Speed Limit Switch (Option)
18- Ride Control Switch (Option)
19- Armrest Adjust Handle
20- Armrest
21- Right Console Slide Lever
22- Hold Switch (Under the Lever)
23- Horn Switch (Under the Lever)
1
2
3
4
5
6
8
7
9
10
11
12
13
14
15
16
17
19
20
21
18
22
23
