OPERATOR'S STATION

1-46

Setting Menu

Setting menu consists of date and time setting, auto idling

stop setting, and rear view camera monitor setting.

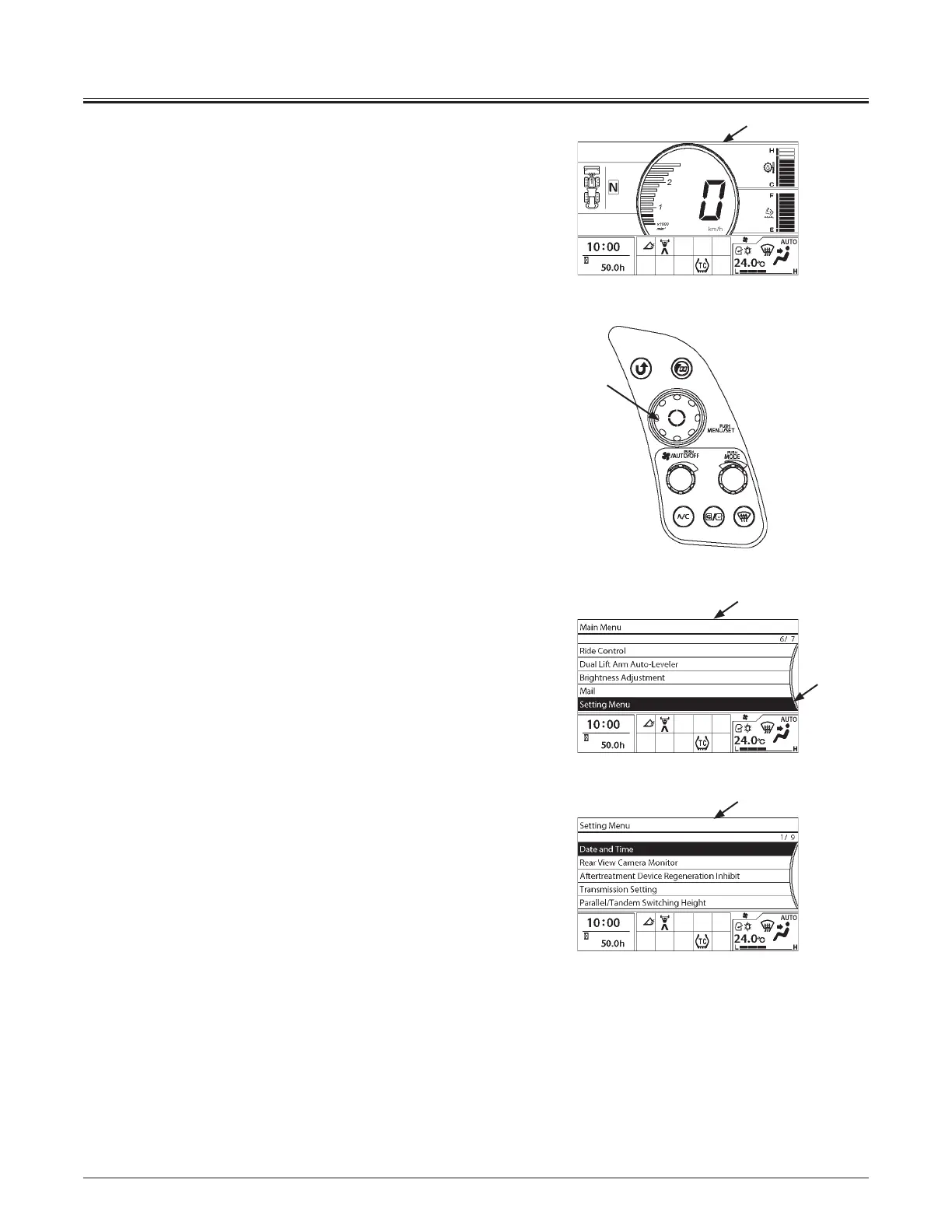

1. Press selector knob (2) while displaying basic screen (1)

to display Main Menu screen (3).

2. Rotate selector knob (2) to highlight Setting Menu (4).

3. Press selector knob (2) to display Setting Menu screen

(5).

MNEC-01-006

MNHG-01-103EN

MNHG-01-140EN

MNHG-01-141EN
