MAINTENANCE
7-9

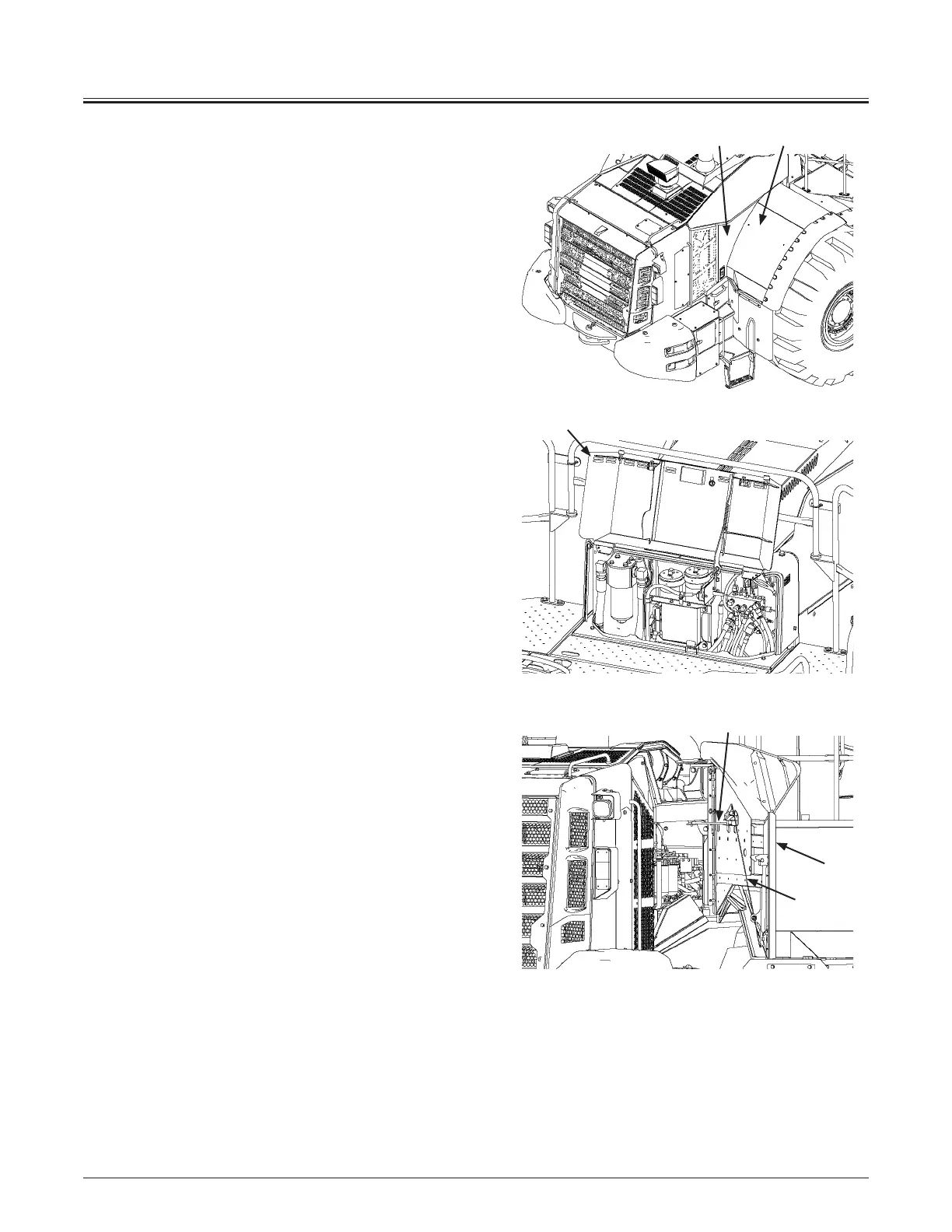

Inspection/ Maintenance Access Covers
d
CAUTION:
Always close side covers (1) and top cover (3) during
operation.
Do not keep side covers (1) open on a slope or when
a strong wind is blowing. Failure to do so may be
dangerous because side cover (1) may unexpectedly
close.
Take care not to pinch your fingers when opening/
closing the side covers (1) and/or top cover (3).
In case the machine is equipped with the fenders (2)
on side covers (1), never ride on the fenders (2).
1. When opening side cover (1), pull latch (6).
2. When fully opening side cover (1), lock lever (5)
automatically slides and is positioned in the lock
position. Make sure that lock bar (5) is firmly positioned
to lock the cover.
3. To release the lock, pull wire (4) and release the end of
lock bar (5) from the lock position.
f
NOTE: Top cover (3) is locked when fully opened. Make sure it
is secured before starting work.
115Z7B-1-142-2
115Z7B-1-142-3
1 2
3
5
1
4
115Z7B-1-142-1
To Next Page
