OPERATOR'S STATION
1-93

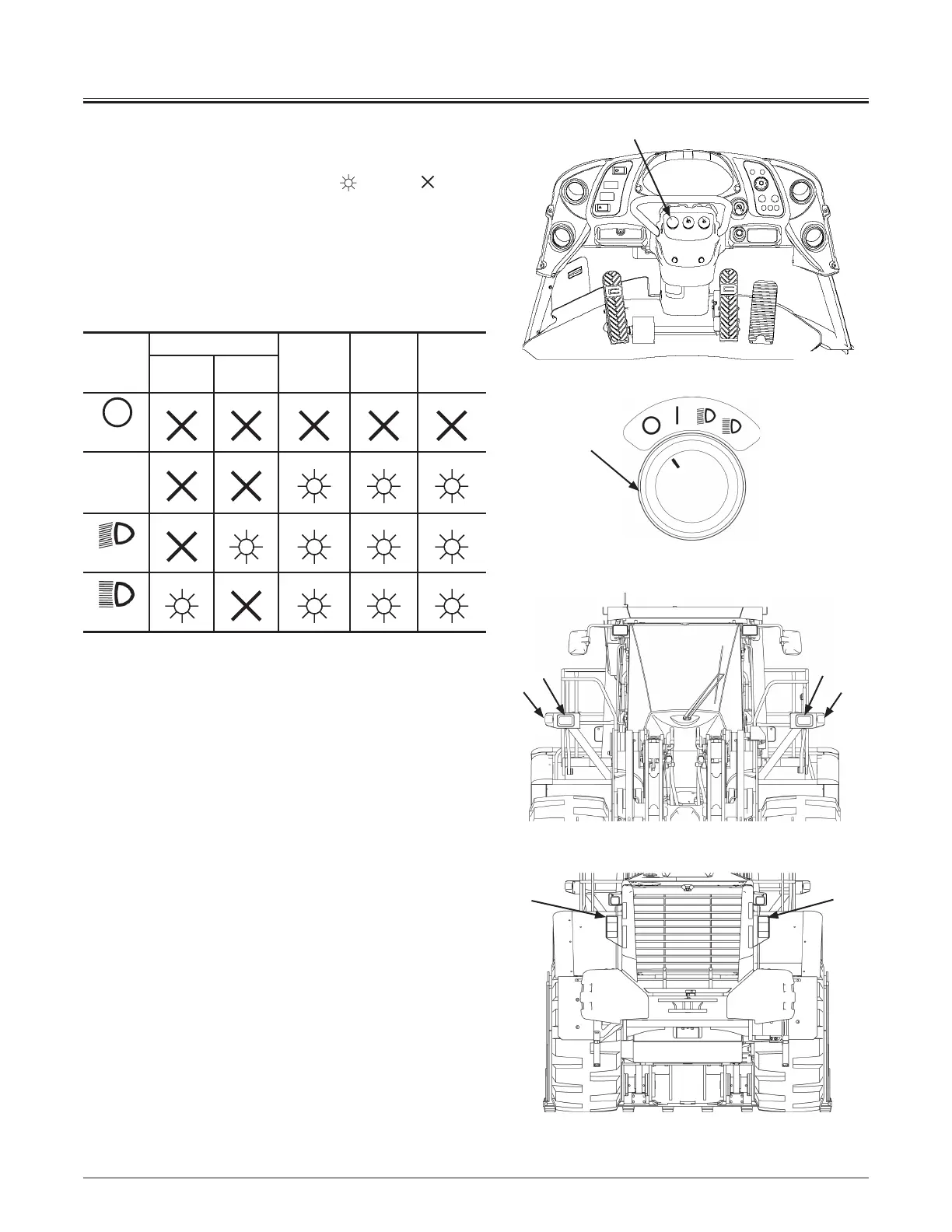

Light Switch
Light switch (1) has four positions; OFF, tail, high and low.
As shown below, each light comes ON ( ) or OFF ( )
according to the selected position of the light switch.
2- Headlight
3- Clearance Light
4- Tail Light
Light
Switch
Position
Headlight
Clearance
Light
Tail Light
Monitor
Panel
Light
High Low
(OFF)
I
(Tail)
(Low)
(High)
f
NOTE: The light switch position I (Tail) keeps lit even if
the key switch is turned OFF. It is used as a parking light
when parking the machine by a public road.
IMPORTANT: Do not hold the switch position at
"ON" for a long time with the engine stopped. The
batteries will become discharged.
115Z7-AK-Light SW
1
2
33
2
4
4
115Z7_front
115Z7_rear
1
115Z7B-1-81-1
