Hitachi ZW 550-6 User Manual

OPERATOR'S STATION
1-21
MNHG-01-101EN

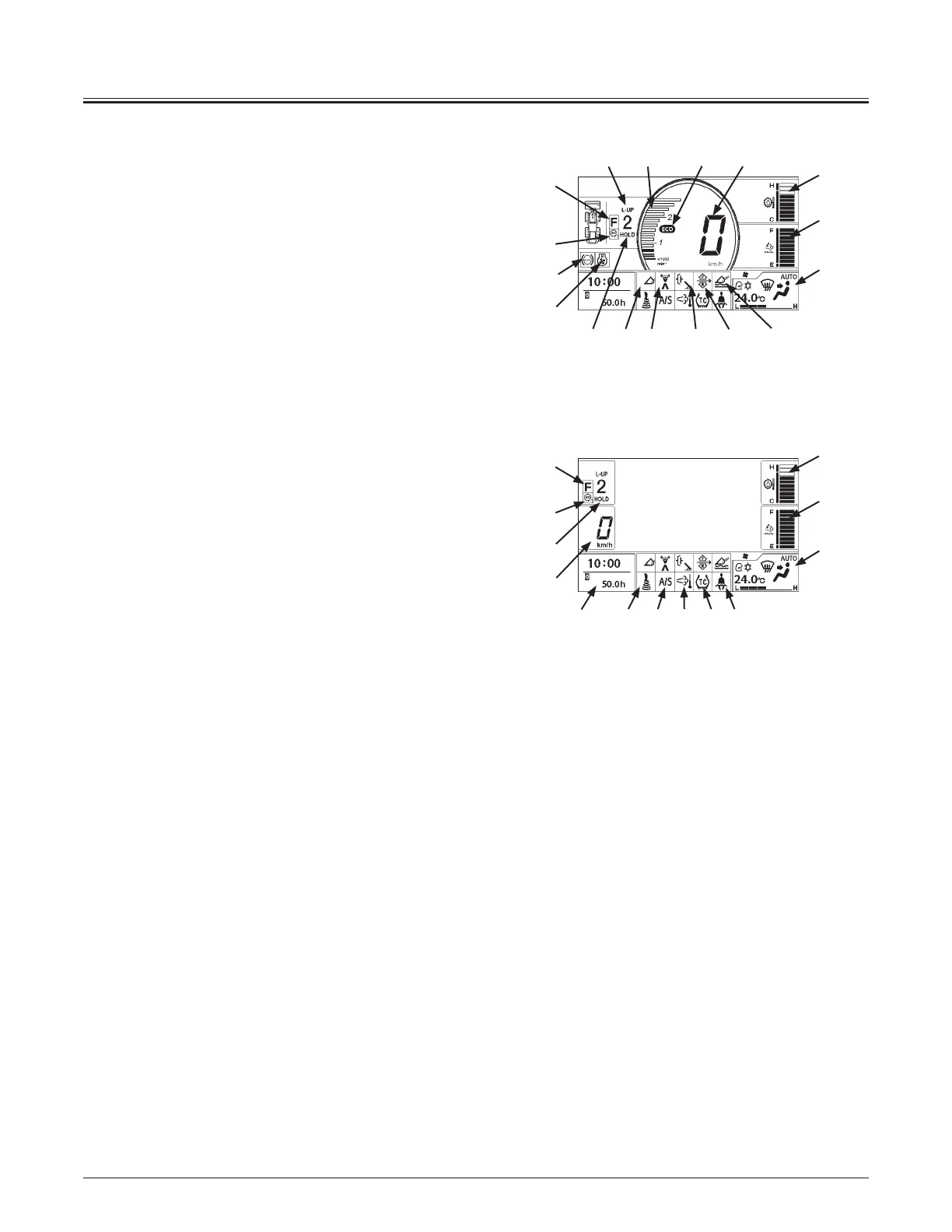

Basic Screen
1- Engine Tachometer
2- Economy (ECO) Indicator
3- Speedometer
4- Transmission Oil Temperature Gauge
5- DEF Level Gauge
6- Air Conditioner Display
7- Ride Control Indicator (Option)
8- Seat Belt Indicator
9- Forward/Reverse Selector Switch Indicator
10- Declutch Indicator
11- Aftertreatment Device Indicator
12- Power Mode Indicator
13- Auto Idling Stop Indicator
14- Dual Lift Arm Auto Leveler Indicator
15- Clock, Hour Meter, Odometer
16- Fan Reverse Rotation Indicator
17- Shift Hold Display
18- Transmission Auto-shifting Indicator
19- F-N-R/Shift Position Indicator
20- Auto Brake Indicator
21- Joystick Steering Indicator
22- Traction Control Indicator
23- Torque Converter Lock-Up Indicator
When Rear View Monitor is Operative
123 2 3
4
4
5
5
6
6
7910
22
12
13 811
14
15
16
3
17
17
19
19
18
20
18
(Rear View Camera Sight)
MNHG-01-100EN
21
