SAFETY
S-39
Joystick Steering System ON/OFF
d
WARNING: Accidental movement of the stick while
getting on or off the machine may cause unexpected
movement of the machine resulting in an accident,
injury, or death.
Always stop, and properly park the machine and turn off the
joystick steering system while getting on or off the machine.

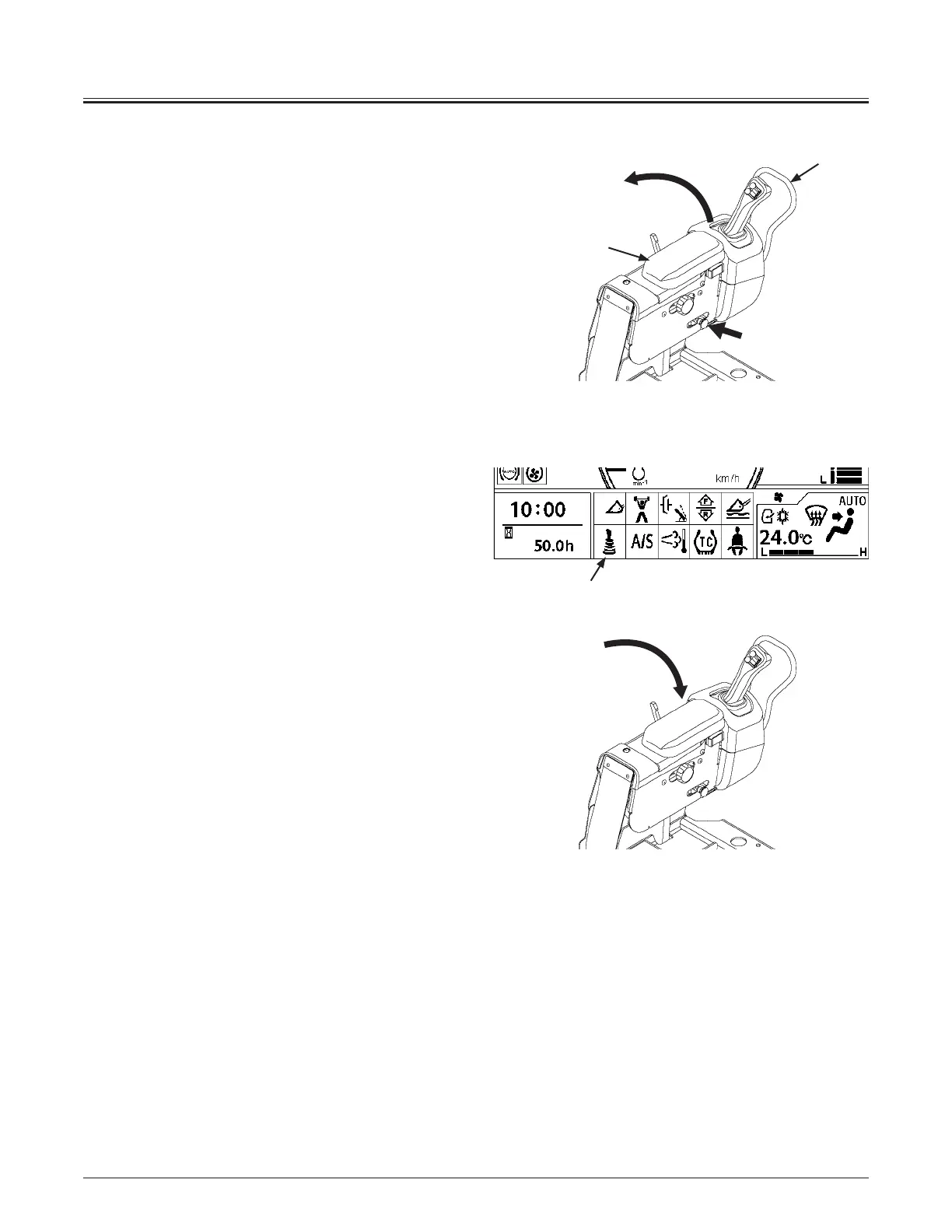

To turn OFF:
1. Push the lock button, hold lever (2) and lift armrest (1) to
the fully raised position before getting off the machine.
2. When armrest (1) is fully raised, the joystick steering
system is turned off automatically.
3. Then indicator lamp (3) on the monitor display goes out.
To turn ON:
1. Before operating the machine, lower armrest (1) back to
the operating position.
2. When armrest (1) is completely lowered the joystick
steering system is turned on automatically.
3. Then indicator lamp (3) on the monitor display turns on.
"Raised" position
PUSH
115Z7B-1-10-3
115Z7B-1-10-3
95Z7B-3-7-1
"Lowered" position
1
3
2
