OPERATOR'S STATION
1-96

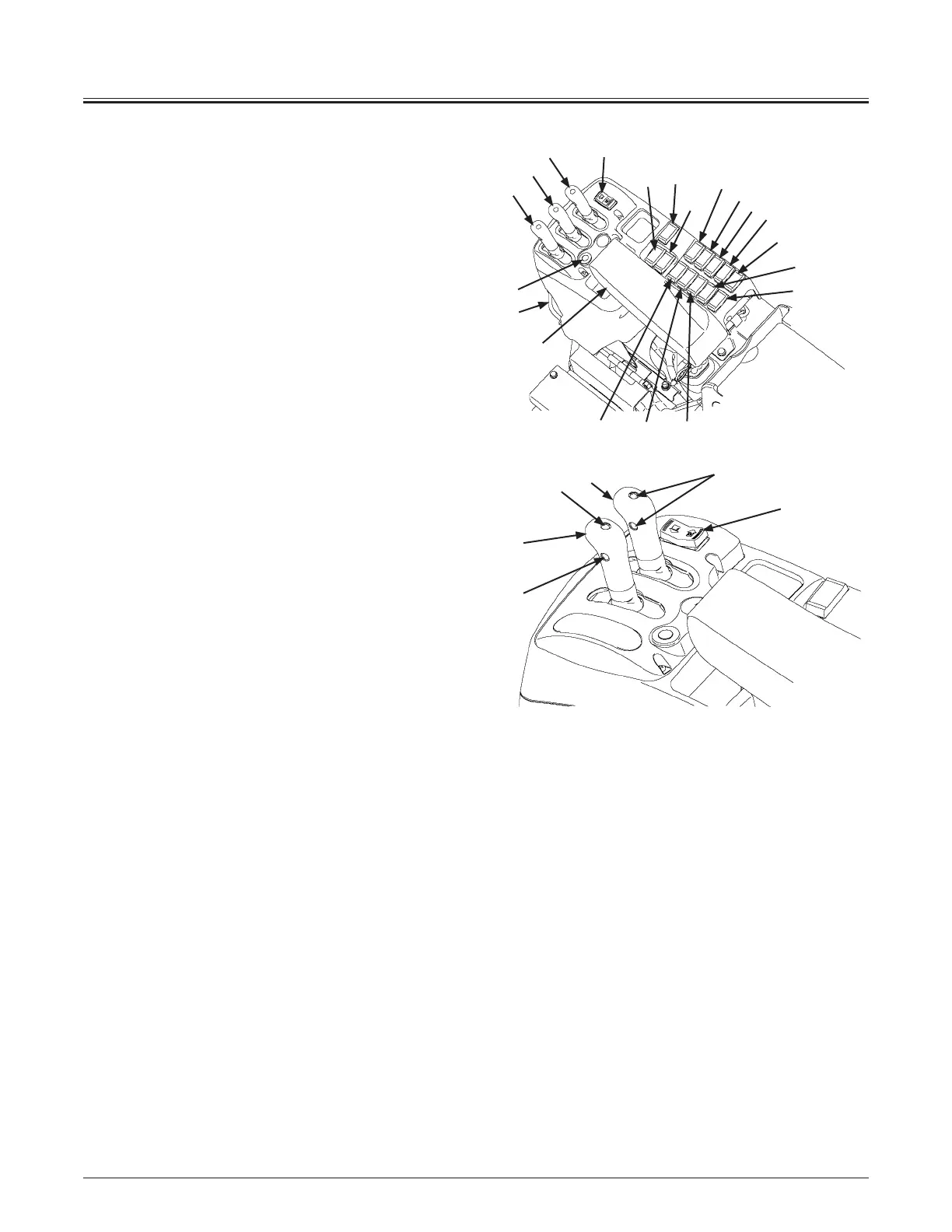

Right Console/Switches
Fingertip Control Type
1- Auxiliary Control Lever (Option)
2- Bucket Control Lever
3- Lift Arm Control Lever
4- Turn Signal Switch
5- Control Lever Lock Switch
6- Declutch Position Switch
7- Travel Mode Selector
8- Power Mode Selector
9- Auxiliary
10- Fan Reverse Rotation Switch
11- Hydraulic Coupler Switch (Option)
12- Auxiliary
13- Aftertreatment Device Regeneration Switch
14- Secondary Steering Operation Check Switch (Option)
15- Auxiliary
16- 2nd/3rd Speed Limit Switch
17- Ride Control Switch (Option)
19- Armrest
20- Hold Switch
21- Right Console Slide Lever
22- DSS (Down Shift Switch)
23- Horn Switch
24- Quick Power Switch
12
13
14
21
20
19
17 16 15
11
10
9
86
7
5
4
3
2
1
24
23
22
3
2
4
115Z7B-1-9-4
115Z7B-1-9-3
