MAINTENANCE
7-71
F. Air Cleaner
Replace Air Cleaner Element
Outer element --- each time the monitor indicator
illuminates.
Inner element --- at the time of the fifth
replacement (or every 2 years) of the outer
element

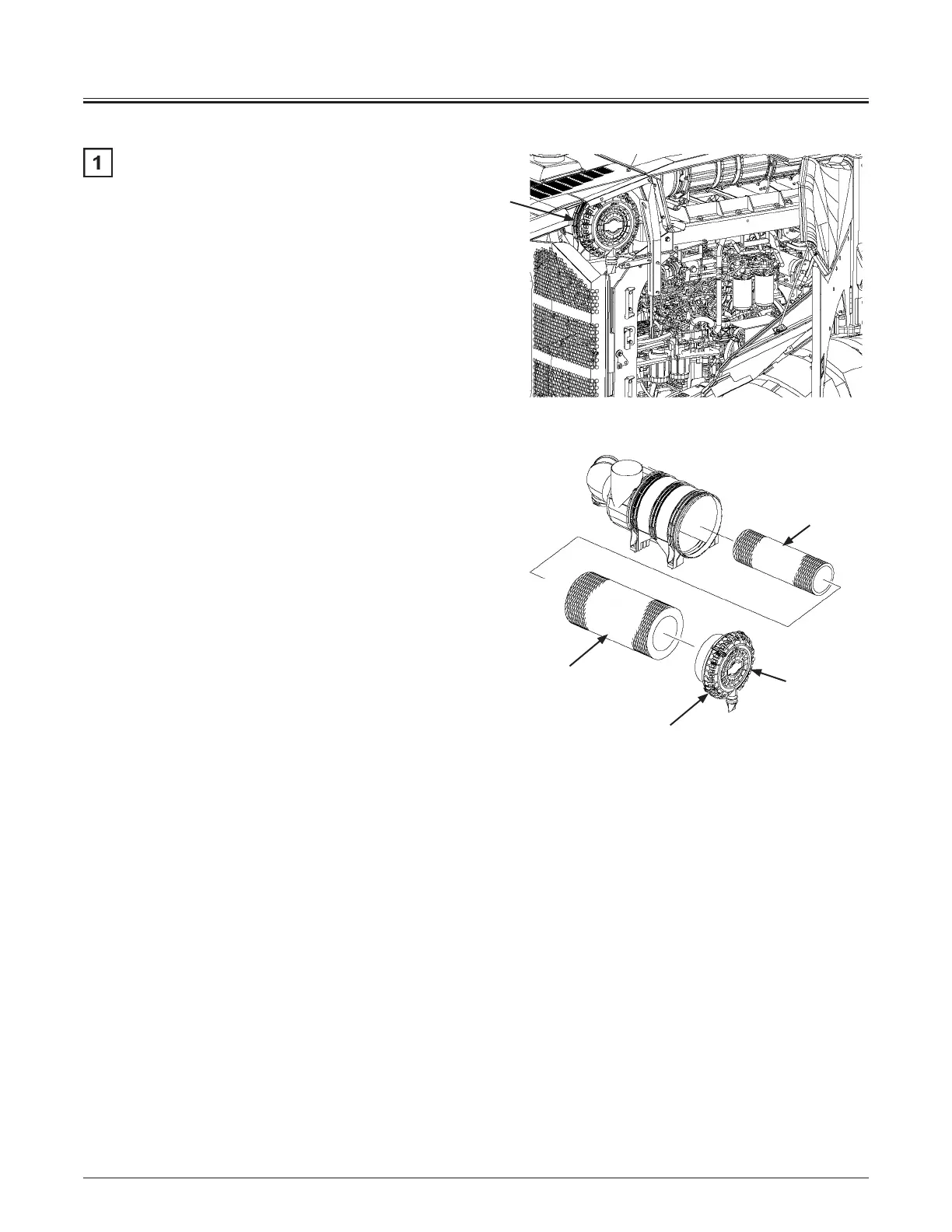

Air cleaner (1) is comprised of double elements, outer
element (6) and inner element (5).
1. Park the machine following the same procedures as
described on page 7-6 for preparation of inspection/
maintenance work.
IMPORTANT: Do not allow foreign matter such as dirt
to enter the engine when replacing elements.
2. Remove clip band (3) and remove cover (2).
Clean out dust from inside cover (2) thoroughly.
3. Remove outer element (6) by slowly pulling it out.
Replace outer element with new one.
IMPORTANT: Do not reuse inner and outer element (5,
6).
4. In case the air filter restriction indicator lights soon
after replacing outer element (6), replace both outer
and inner elements with new ones.
Inner element (5) is threaded.
5. Confirm that gasket (7) fits properly onto cover (2).
6. Install cover (2) in the original position.
7. After replacing is complete, run the engine at slow
speed. Then, check that the air filter restriction
indicator is not ON.
6
3
95Z7B-7-69-3
95Z7B-7-69-2
1
5
2
