OPERATOR'S STATION
1-130
Front Interior Light

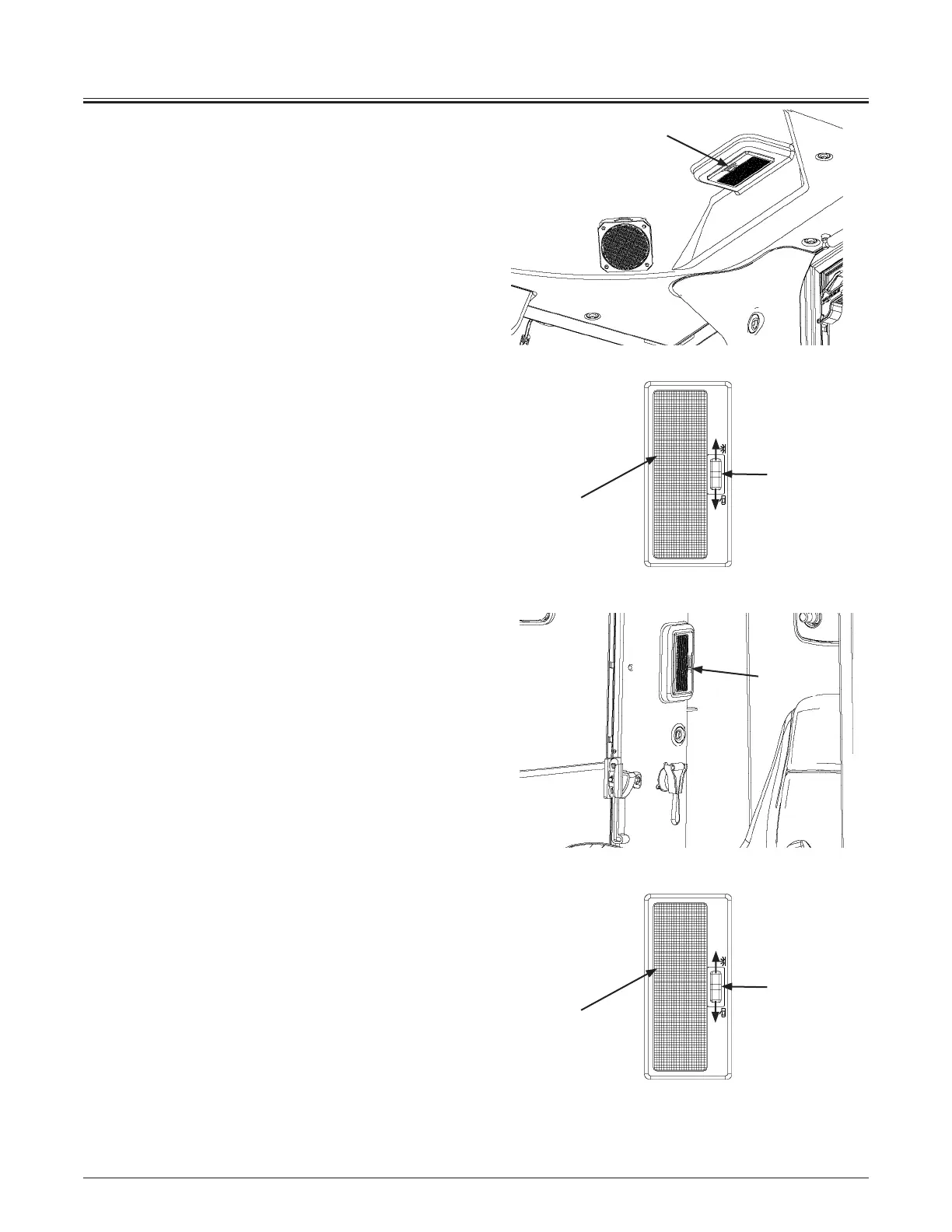

Slide to ON side of switch (1) to turn the interior light ON.
The front interior light switch has three operation positions.
ON: The light (2) turns and stays ON.
Neutral: When the cab door is opened, the light (2)
turns ON. When closed, the light (2) goes OFF.
OFF: The light (2) remains OFF.
Rear Interior Light
Slide to ON side of switch (1) to turn the interior light ON.
The rear interior light switch has three operation positions.
ON: The light (3) turns and stays ON.
Neutral: When the cab door is opened, the light (3)
turns ON. When closed, the light (3) goes OFF.
OFF: The light (3) remains OFF.
115Z7B-1-130-2
115Z7B-1-129-2
115Z7B-1-130-2
1
1
(Center: OFF)
(Center: OFF)
(ON)
(ON)
(Neutral)
(Neutral)
2
3
3
115Z7B-1-128-2
2
