OPERATOR'S STATION
1-125
Fuse Box
IMPORTANT: If a fuse blows, turn the key switch OFF.
After checking and correcting the cause of the
trouble, replace the fuse with a new one.
The slow blow fuses (1 and 2) function as a "safety valve"
to prevent excess current from flowing through, and to
protect the electrical system.
The fuse capacity varies depending on its corresponding
circuit. Be sure to replace the blown fuses only with the
specified one.
When checking fuses, check the fuse A, B and slow blow
fuses in the battery box (1 and 2) in this order.
1- 140 A x 2
2- 70 A x 2
Front
attachment side

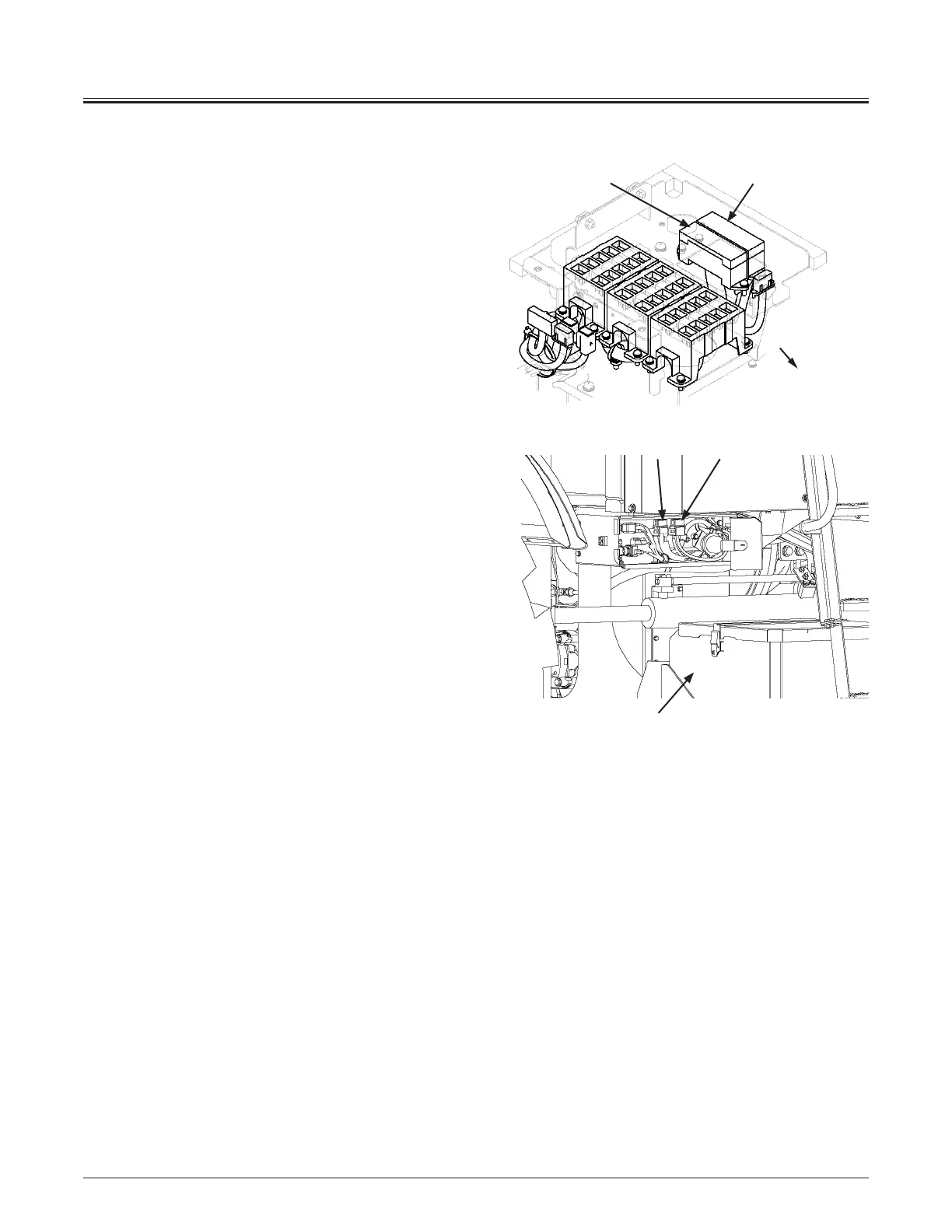

Fuse box A
Battery box
Fuse box B
FuseBox_550
115Z7B-SlowBlow
21
