15. HANDLE / CONTROL LEVERS

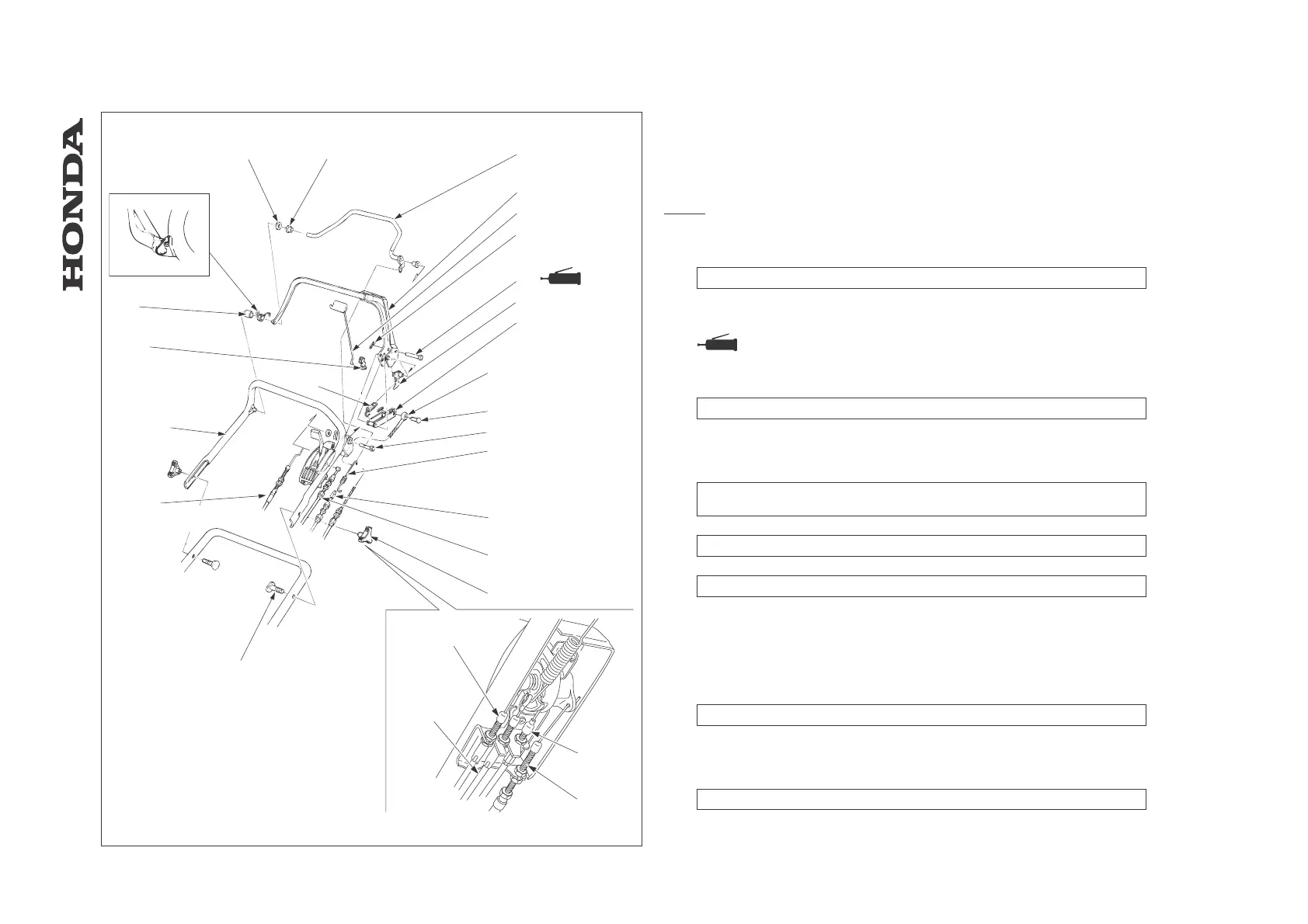

15.1 Upper handle
a. Disassembly / Reassembly
S type
[1] WASHER
[2] BUSH (2)
[3] DRIVE CLUTCH LEVER
ADJUSTMENT: ch. 3.5
[4] ROTOSTOP LEVER
[5] RATCHET PUSH ROD
[6] LOCK PIN, 6 mm
[7]
HINGE PIN
[8] LOCKING LEVER
[9] ROTOSTOP CABLE ARM
[10] ROTOSTOP CABLE
ADJUSTMENT: ch. 3.6
[11] ROTOSTOP CABLE JOINT PIN
[12] RATCHET RETURN SPRING
[13] HINGE PIN
[14] CLUTCH SPRING
REASSEMBLY: Hook to the drive clutch lever from inside as shown to avoid inter-fering
with the Rotostop lever.
[15] DRIVE CLUTCH CABLE
ADJUSTMENT: ch. 3.5
[16] HROTTLE CABLE
ADJUSTMENT: ch. 3.4
[17] HANDLE JOINT KNOB (2)
[18] SHIFT CABLE
[19] THROTTLE CABLE
[20] ROTOSTOP CABLE
[21] DRIVE CLUTCH CABLE
[22] HANDLE HOLDER SCREW (2)
[23] SHIFT CABLE
ADJUSTMENT: ch. 3.7
[24] UPPER HANDLE
[25] JOINT ROD
[26] COLLAR
[27] ROTOSTOP LEVER RETURN SPRING
REASSEMBLY: Hook the spring as shown.
- 105 -
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
GREASE
- HANDLE / CONTROL LEVERS
GREASE

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
