Honda HRD536 User Manual

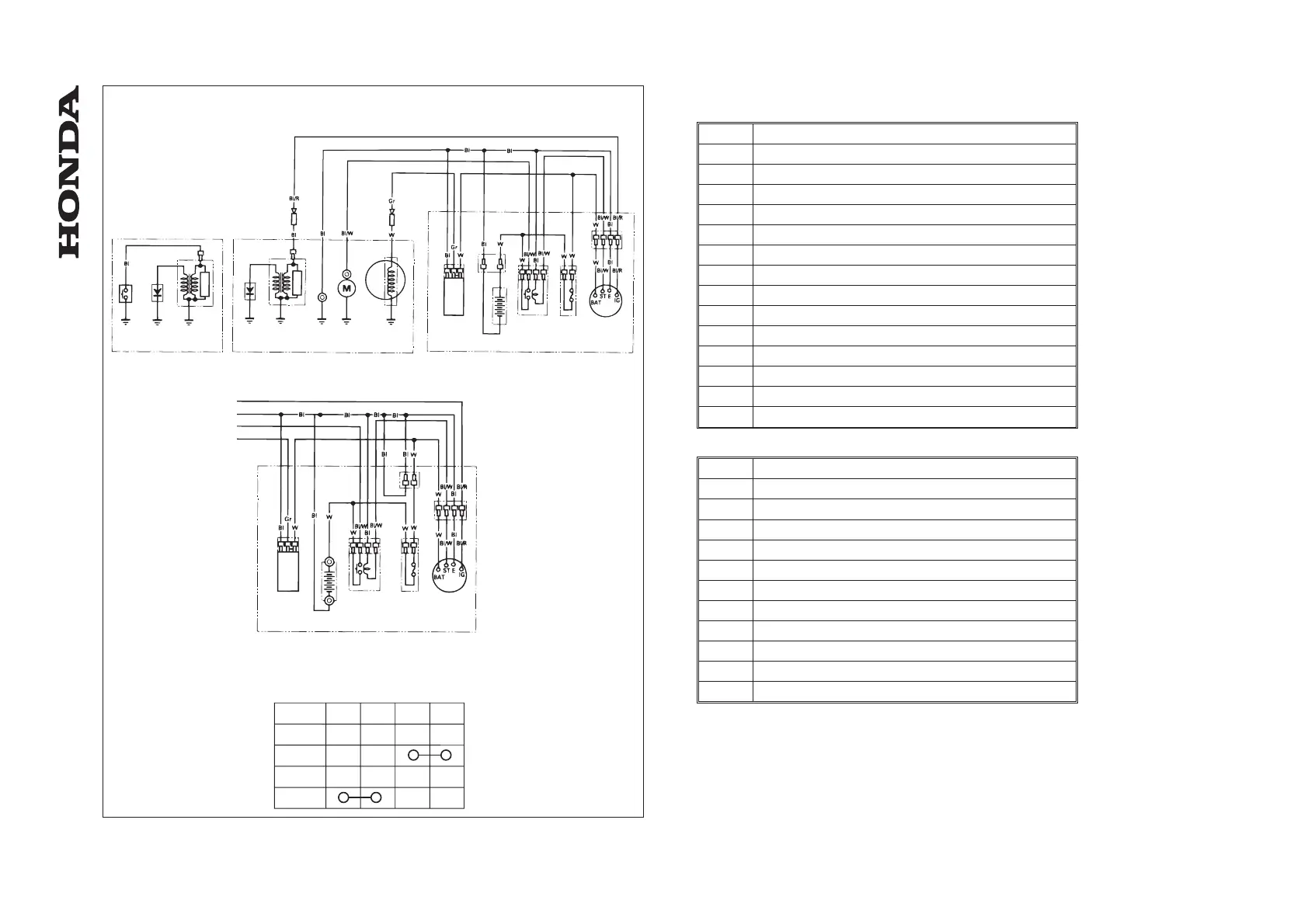

1.3 Wiring diagrams
[1] Engine stop switch
[2] Spark plug
[3] Ignition coil
[4] Engine block (without starter motor model)
[5] Earth terminal
[6] Starter motor
[7] Charging coil
[8] Engine block (with starter motor model)
[9] Regulator / Rectifier
[10] Battery
[11] Starter relay
[12] Main fuse (1A)
[13] Combination switch
[14] Control box block (with starter motor model)
[15] Combination switch continuity
Bk Black
Y Yellow
BI Blue
G Green
R Red
W White
Br Brown
O Orange
Lb Light blue
Lg Light green
P Pink
Gr Grey
-10-
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[2]
[3]
[5]
[6]
[7]
[4]
[14]
[8]
[13]
[14]
[12][11]
[9]
[10]
HRD535 SME, QME
HRD535K1 SME, TME, QME
HRD535K2 QME
[9]
[11] [12]
[13]
[10]
HRD536 HME
HRD536K1 HME
HRD536K2 HME
[15]
[10]
BAT
ST IG
E
[6] [3]
[5]
OFF
ON
ST
- SPECIFICATION

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
