4.3 Inspecting the Rotostop
If the steps described below show that the clutch or brake is worn, the clutch lining and
spring must be replaced.

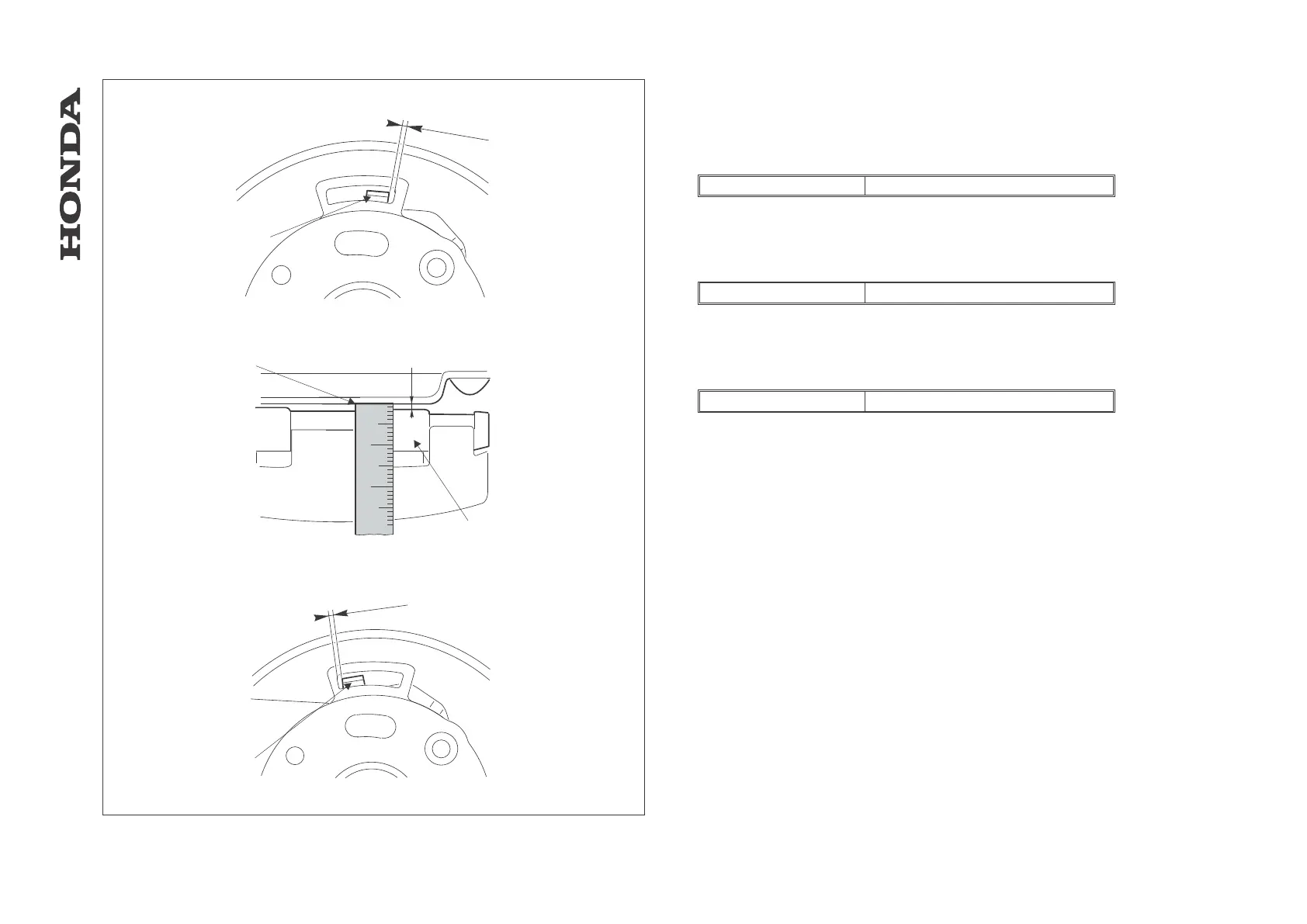

1. Set the clutch cable to the engaged position.
The distance between the light and the finger [1] should be between:
Distance
2. Measuring the wear on the clutch:
Engage the Rotostop lever,
The distance between the brake anchor plate [2] and the lining [3] should be greater
than:
Distance
≥ 0.5 mm
3. Measuring the wear on the brake:
Engage the Rotostop lever.
The distance between the finger [4] and the left-hand edge of the light must be greater
than:
Distance
-36-
HRA536 - HRD535 - HRD536
- BLADE / ROTOSTOP
[1]
1
2
[2]
[3]
[4]
0,5 mm
≥ 1,5 mm
≥
≥ 0,5 mm
≥ 1,5 mm
≥ 0,5 mm

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
