Honda HRD536 User Manual

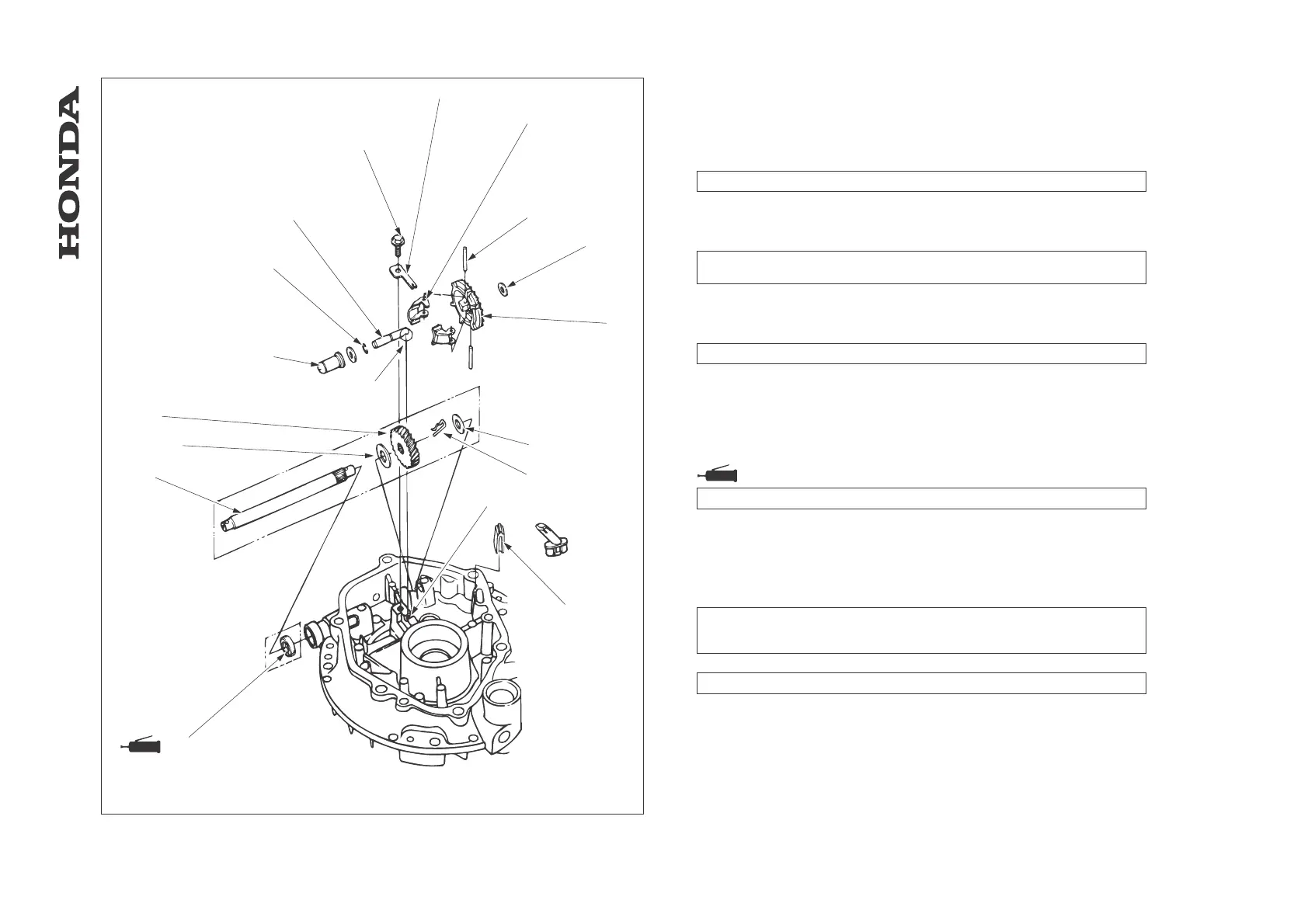

11.2 Drive shaft / Governor
a. Disassembly / Reassembly
[1] GOVERNOR HOLDER SHAFT
REASSEMBLY: Align the shaft groove with the lug in the oil pan.
[2] SCREW,6x12mm
[3] GOVERNOR HOLDER SHAFT PLATE
[4] GOVERNOR WEIGHT (2)
REASSEMBLY: Check that the weight opens smoothly.
Before installing, check for gear wear or damage.
[5] GOVERNOR WEIGHT PIN (2)
[6] PLAIN WASHER (2)
[7] GOVERNOR WEIGHT HOLDER
REASSEMBLY: Before installing, check for gear wear or damage.
[8] PLAIN WASHER
[9] LOCK PIN
[10] LUG
[11]-1
OIL RETURN PIPE (HRD535/K1/K2)
[11]-2
OIL RETURN RUBBER (HRA536 - HRD536/K1/K2 only)
[12]
OIL SEAL, 12 x 20x6mm
Apply to the lip of the oil seal.
[13] DRIVE SHAFT
[14] THRUST WASHER
[15] DRIVEN GEAR
[16] GROOVE
[17] GOVERNOR SLIDER
REASSEMBLY: After opening the governor weight to both sides, insert the slider onto
the shaft.
After installing, confirm that the slider moves smoothly.
[18] SNAP RING
REASSEMBLY: Insert firmly into the shaft groove.
-74-
HRA536 - HRD535 - HRD536
[1]
[2]
[
3
]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]-2
[11]-1
[12]
[13]
[14]
[15]
[16]
[18]
[17]
GREASE
- OIL PAN / DRIVE SHAFT / GOVERNOR
GREASE

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
