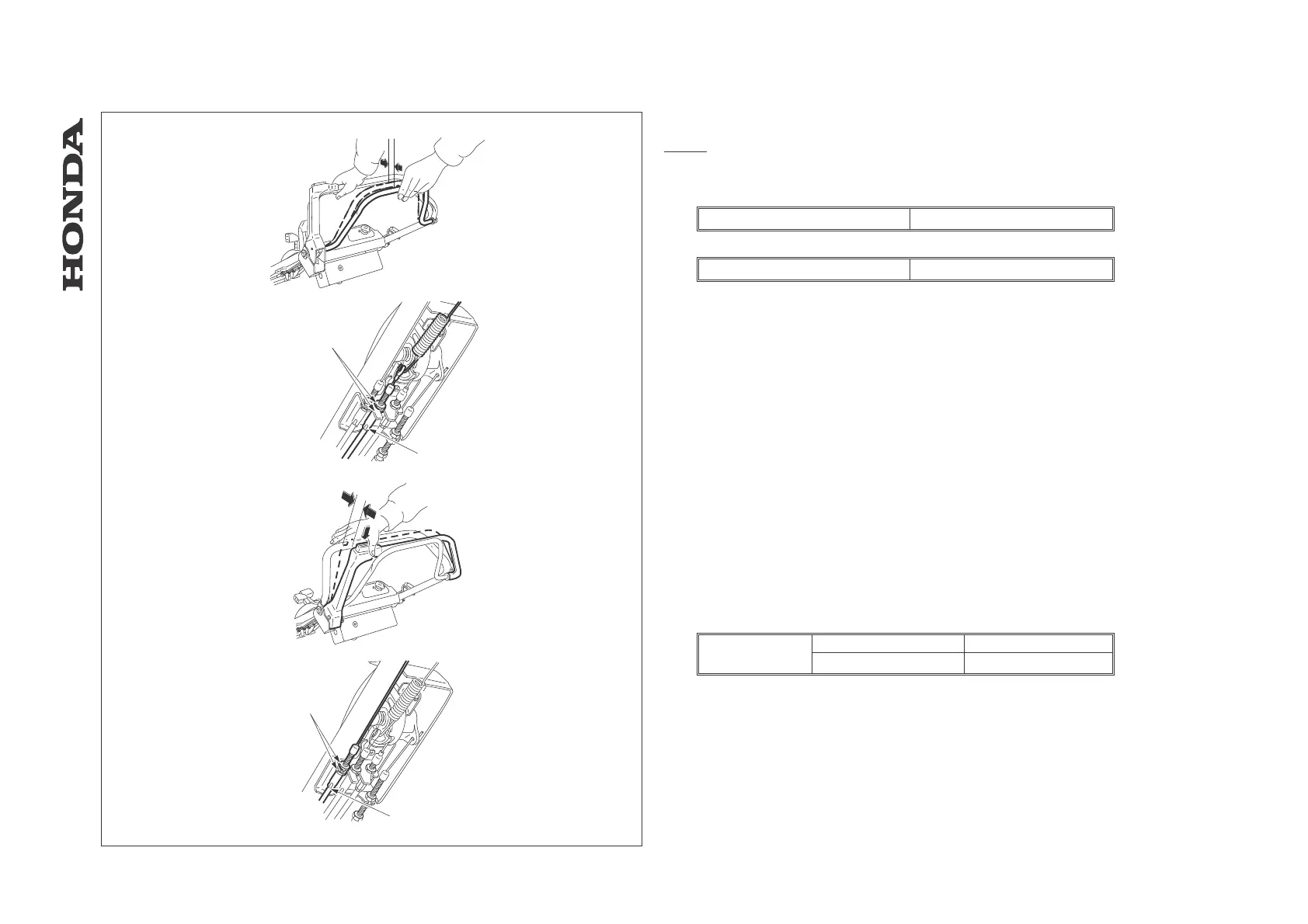

3.5 Drive clutch cable (except H type)
NOTE: Before making any cable tension adjustements, always check that the cables are
corrected routed.
1. Stop the engine and disconnect the spark plug cap.
2. Measure clearance at the tip of the lever.
[1] Lever clearance (except TME type) 5 - 15 mm
[1] Lever clearance TME type 1-5mm
3. If adjustment is necessary, loosen the lock nuts and adjust as required.
Retighten the lock nuts securely.
[1] CLEARANCE
[2] LOCK NUTS
[3] DRIVE CLUTCH CABLE
3.6 ROTOSTOP cable
a. HRD535/K1 ~ 8106639
HRD536/K1 ~ 8107479
1. Stop the engine and disconnect the spark plug cap.
2. Measure clearance at the tip of the lever with the button pushed down.
Lever clearance [4]
HRA HRD
10-15mm 20-30mm
3. If adjustment is necessary, loosen the lock nuts and adjust as required.
Retighten the lock nuts securely.
[4] CLEARANCE
[5] LOCK NUTS
[6] ROTOSTOP CABLE
-25-
HRA536 - HRD535 - HRD536
[
1
]
[2]
[
3
]
[4]
[5]
[6]
- MAINTENANCE

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
