17.2 Grass bag
a. Assembly
NOTE:
Before assembly, check the grass bag for frying, tears or clogged mesh.

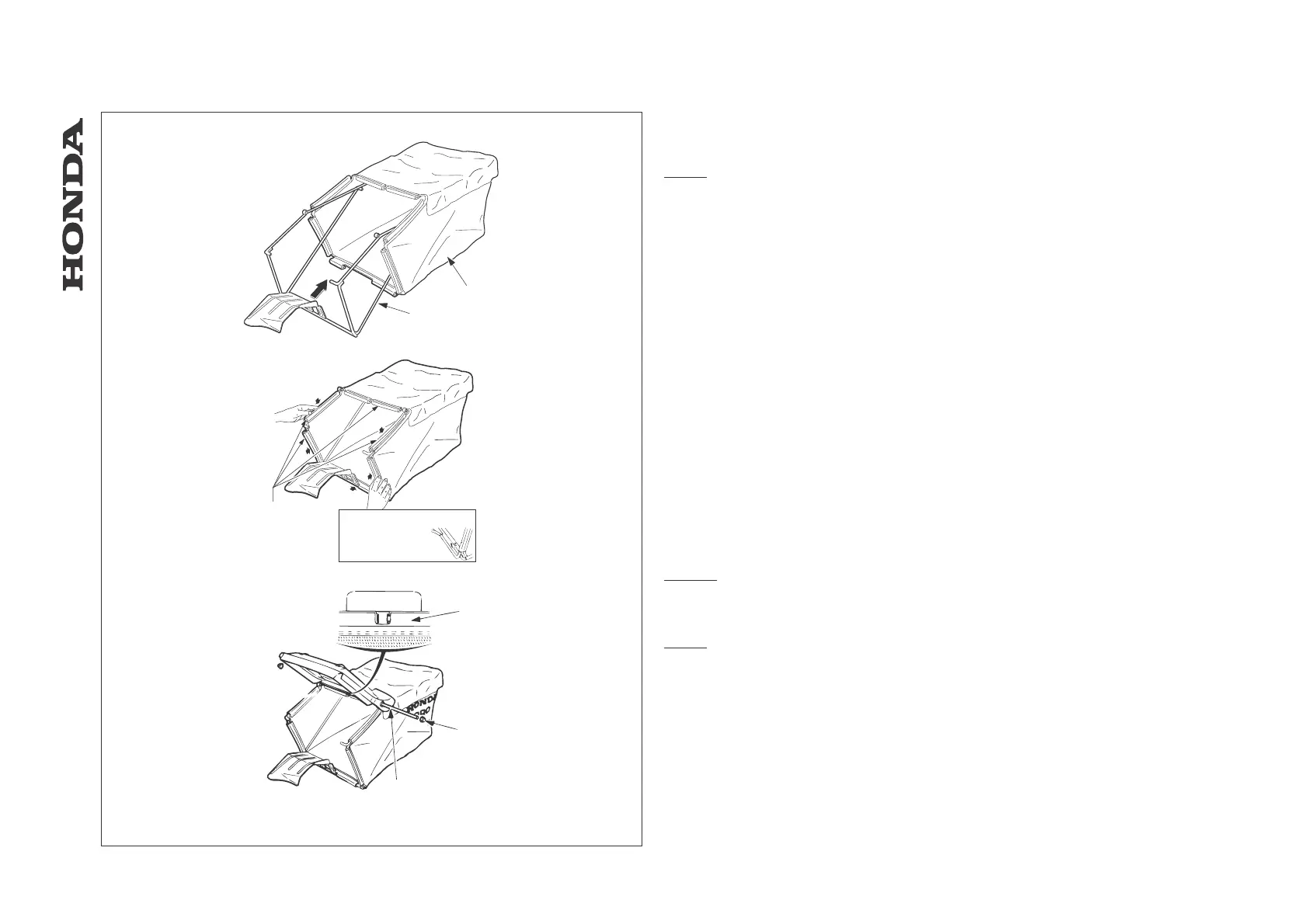

1. Insert the grass bag frame into the grass bag as shown.
2. Hook the plastic edges of the grass bag onto the frame.
HRA536
1. Assemble the upper lid by threading the shaft through the hinge and the plastic edge
of the grass bag. Fix the two caps to each end of the shaft using a mallet.
NOTE:
Be sure to replace the cap nuts with a new one when disassembling or replacing
the grass bag, as an assembly.
When assembling the grass bag, insert the shaft in the sequence shown.
2. Hook the plastic edges of the grass bag onto the frame.
[1] GRASS BAG FRAME
[2] GRASS BAG
[3] PLASTIC EDGES
[4] SHAFT
[5] CAP
- 119 -
HRA536 - HRD535 - HRD536
- DISCHARGE GUARD / GRASS BAG
[2]
[1]
[3]
HRD535/K1/K2
HRD536/K1/K2
[
4
]
[5]
[3]

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
