6. AIR CLEANER / MUFFLER

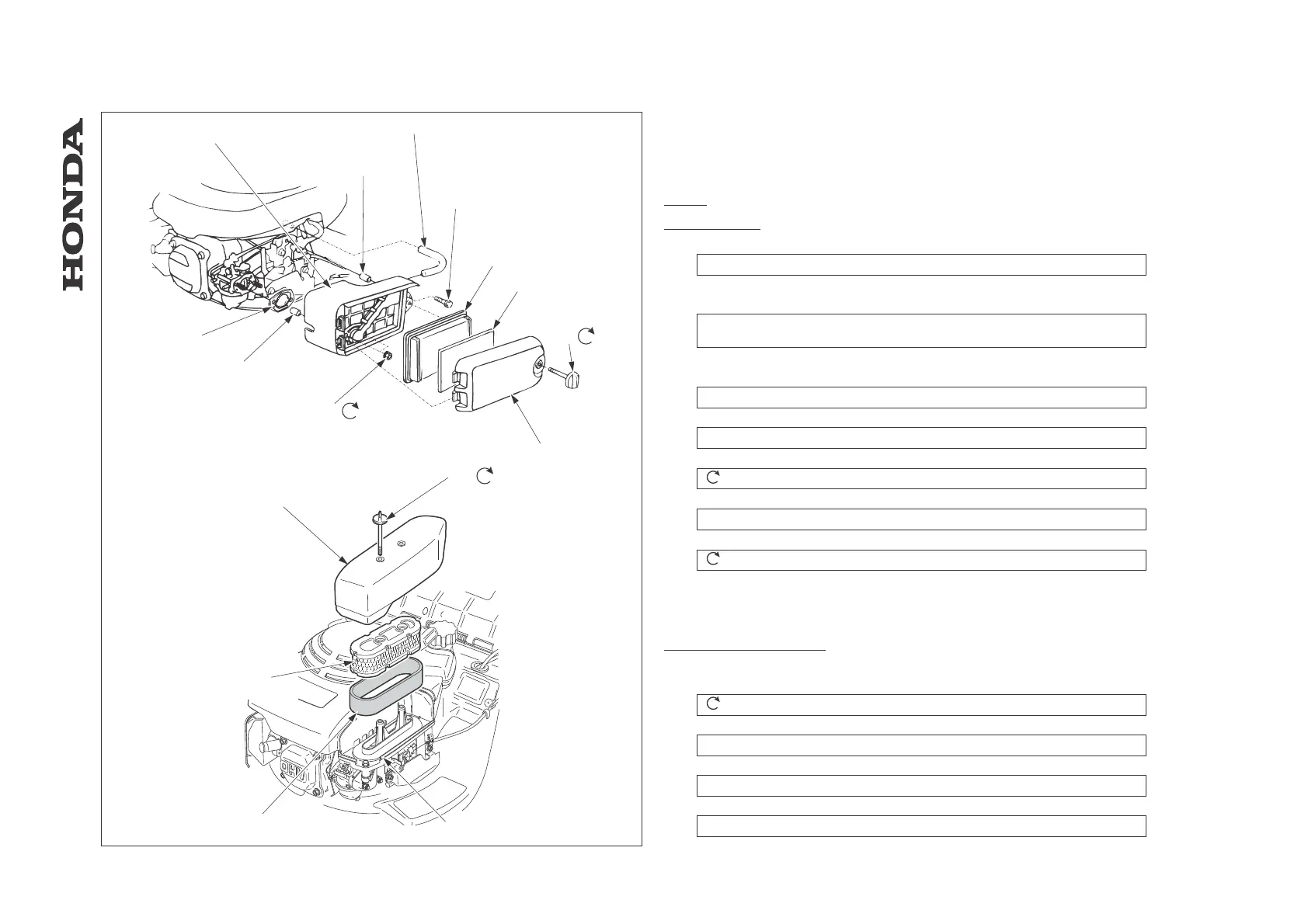

6.1. Air cleaner
a. Disassembly / Reassembly
NOTE:
Air cleaner service can be accomplished with the engine installed.
HRD535/K1
/K2
[1] AIR CLEANER CASE
REASSEMBLY: When reassembly, clean inside of the air cleaner case.
[2] COLLAR
[3] CRANKCASE BREATHER TUBE
REASSEMBLY: Connect the breather tube between the crankcase and air cleaner
case.
[4] SCREW,6x36mm
[5] PAPER ELEMENT
INSPECTION: ch. 3.3
[6] FOAM ELEMENT
INSPECTION: ch. 3.3
[7] AIR CLEANER COVER SCREW
TIGHTENING TORQUE: 2 N.m
[8] AIR CLEANER COVER
REASSEMBLY: Set the tabs of the cover into the groove of the air cleaner case.
[9] FLANGE NUT, 6 mm (2)
TIGHTENING TORQUE: 8.5 N.m
[10] COLLAR (2)
[11] GASKET
HRA536 - HRD536/K1/K2
[12] AIR CLEANER COVER
[13] AIR CLEANER COVER SCREW (2)
TIGHTENING TORQUE: 2 N.m
[14] AIR CLEANER CASE / FUEL TANK
REMOVAL / INSTALLATION: ch. 7.1
[15] FOAM ELEMENT
INSPECTION: ch. 3.3
[16] PAPER ELEMENT
INSPECTION: ch. 3.3
-45-
HRA536 - HRD535 - HRD536
[1]
[2]
[
3
]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[15]
[16]
[
14
]
2
8,5
2
- AIR CLEANER / MUFFLER
