8. IGNITION COIL / CONTROL ARM / CARBURETOR

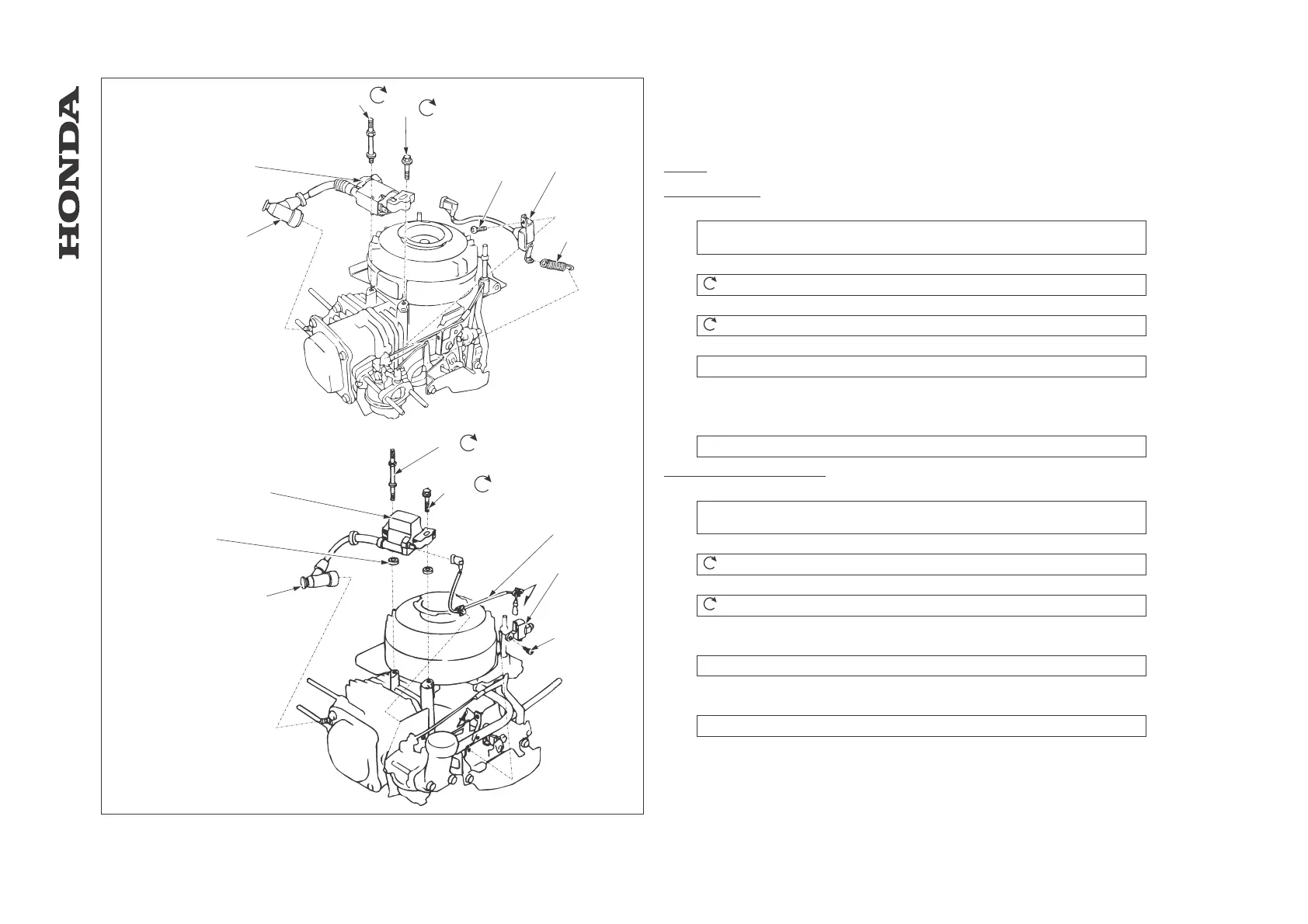

8.1 Ignition coil / Engine stop switch
a. Removal / Installation
NOTE:
It is not necessary to remove the engine.
HRD535/K1/K2
[1] IGNITION COIL
INSPECTION: ch. 8.1b
ADJUSTMENT: ch. 8.1c
[2] FUEL TANK STUD BOLT
TIGHTNING TORQUE: 10 N.m
[3] SCREW,6x25mm
TIGHTNING TORQUE: 10 N.m
[4] ENGINE STOP SWITCH (without starter motor model only)
INSPECTION: ch. 8.1b
[5] PAN SCREW,4x8mm
[6] SWITCH SPRING
[7] SPARK PLUG CAP
INSPECTION: ch. 8.1b
HRA536 - HRD536/K1/K2
[8] IGNITION COIL
INSPECTION: ch. 8.1b
ADJUSTMENT: ch. 8.1c
[9] FUEL TANK STUD BOLT
TIGHTNING TORQUE: 10 N.m
[10] SCREW,6x28mm
TIGHTNING TORQUE: 10 N.m
[11] ENGINE STOP SWITCH WIRE (without starter motor model only)
[12] ENGINE STOP SWITCH (without starter motor model only)
INSPECTION: ch. 8.1b
[13] PAN SCREW,4x8mm
[14] SPARK PLUG CAP
INSPECTION: ch. 8.1b
[15] SPACER (2)
-52-
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
HRD535/K1/K2
HRA536
HRD536/K1/K2
10
10
10
10
