Honda HRD536 User Manual

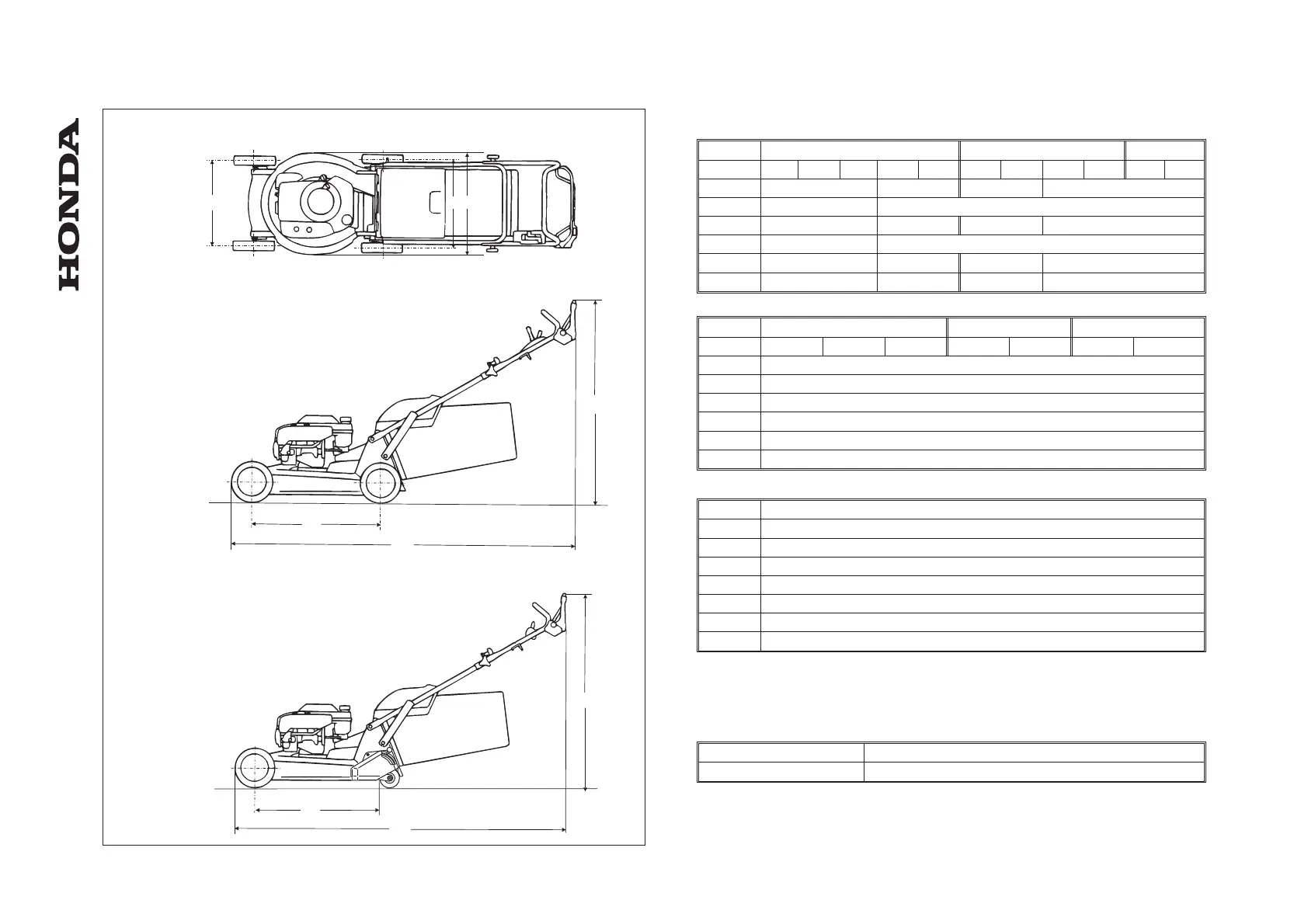

1.2 Dimensionnal drawing
Models
HRD535 HRD535K1 HRD535K2
Types
SXE SME HXE QXE QME SME TME QME QXE QME QXE
A (mm) 1694 1655 1694 1655
B (mm) 574 574
C (mm) 1018 1031 1018 1031
D (mm) 476 476
E (mm) 512 490 512 490
F (mm) 625 656 625 656
Models
HRD536 HRD536K1 HRD536K1
Types
SXE HXE HME HXE HME HXE HME
A (mm) 1694
B (mm) 574
C (mm) 1018
D (mm) 476
E (mm) 512
F (mm) 625
Model
HRA536
Type
HXE
A (mm) 1665
B (mm) 565
C (mm) 1020
D (mm) 480
E (mm) 500
F (mm) 635
The models shown:
[1] HRD536 HME
[2] HRD535 QME
The dimensions are measured using the following parameters:
Cutting height 30 mm
Adjustment of handle height supports adjustable in intermediate position
-9-
HRA536 - HRD535 - HRD536
- SPECIFICATION
D
E
B
F
A
C
[1]
C
F
A
[2]

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
