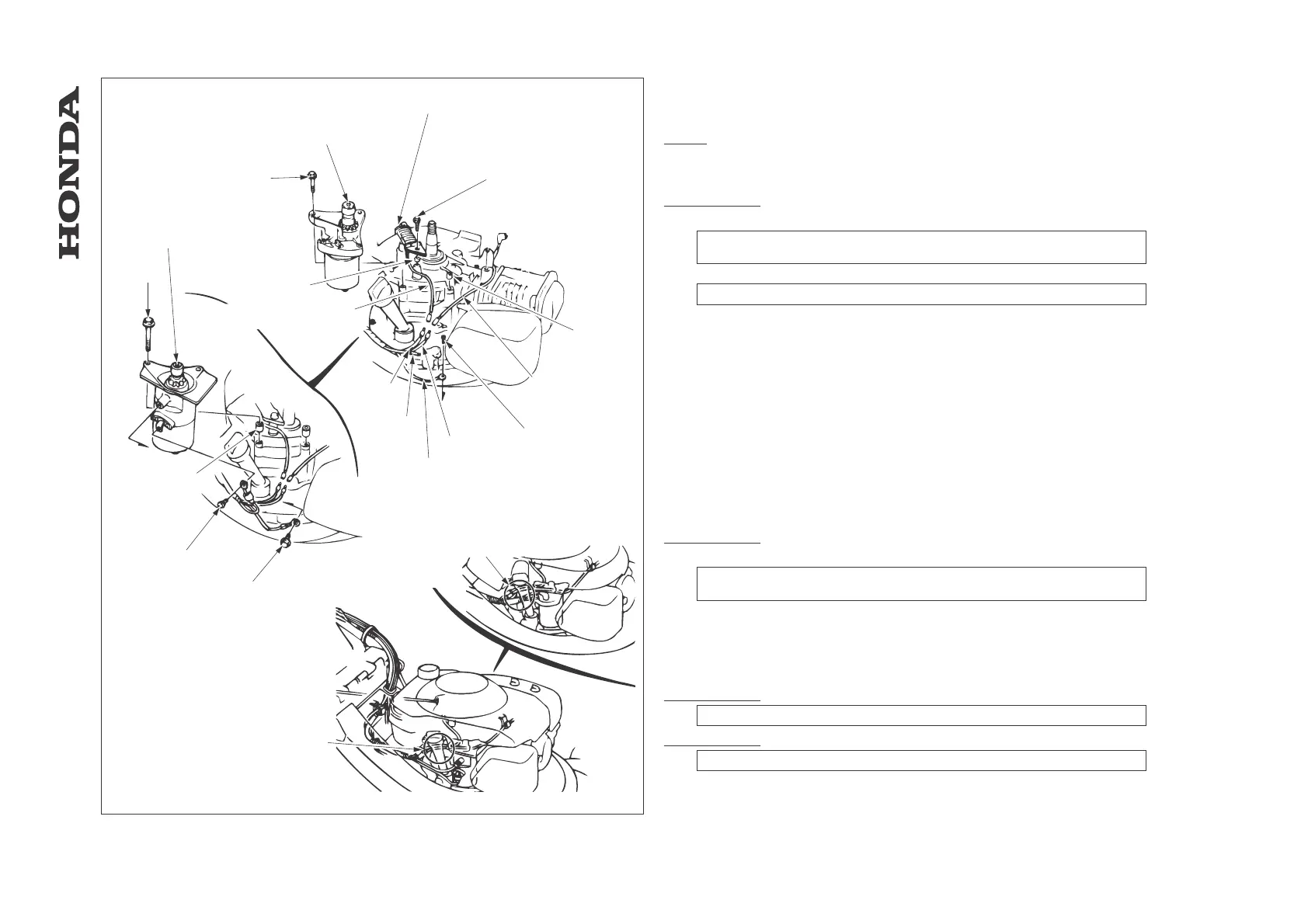

9.2 Starter motor / Charging coil
a. Removal / Installation
NOTE:
It is not necessary to remove the engine.
1. Remove the flywheel (ch. 9.1).
HRD535/K1/K2
[1] STARTER MOTOR
DISASSEMBLY / REASSEMBLY: ch. 9.2b
INSPECTION: ch. 9.2c
[2] CHARGING COIL
INSPECTION: ch. 9.2c
[3] SCREW,6x29mm(2)
[4] COLLAR (2)
[5] IGNITION COIL WIRE (BLACK)
[6] SCREW - WASHER,5x16mm
[7] BLACK / RED
[8] BLACK
[9] BLACK / WHITE
[10] GREY
[11] CHARGING COIL WIRE (GREY)
[12] COLLAR (2)
[13] SCREW,6x32mm(2)
HRD536/K1/K2
[14] STARTER MOTOR
DISASSEMBLY / REASSEMBLY: ch. 9.2b
INSPECTION: ch. 9.2c
[15] SCREW,6x32mm(2)
[16] COLLAR (2)
[17] SCREW - WASHER,5x8mm
[18] SCREW,6x12mm
HRD535/K1/K2
Route the all wire harnesses between the oil filler tube and crankcase.
HRD536/K1/K2
Route the charging coil and ignition coil wires between the oil filler tube and crankcase.
-62-
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
HRD535/K1/K2
HRD535/K1/K2
HRD536/K1/K2
HRD536/K1/K2
- FLYWHEEL / STARTER MOTOR
