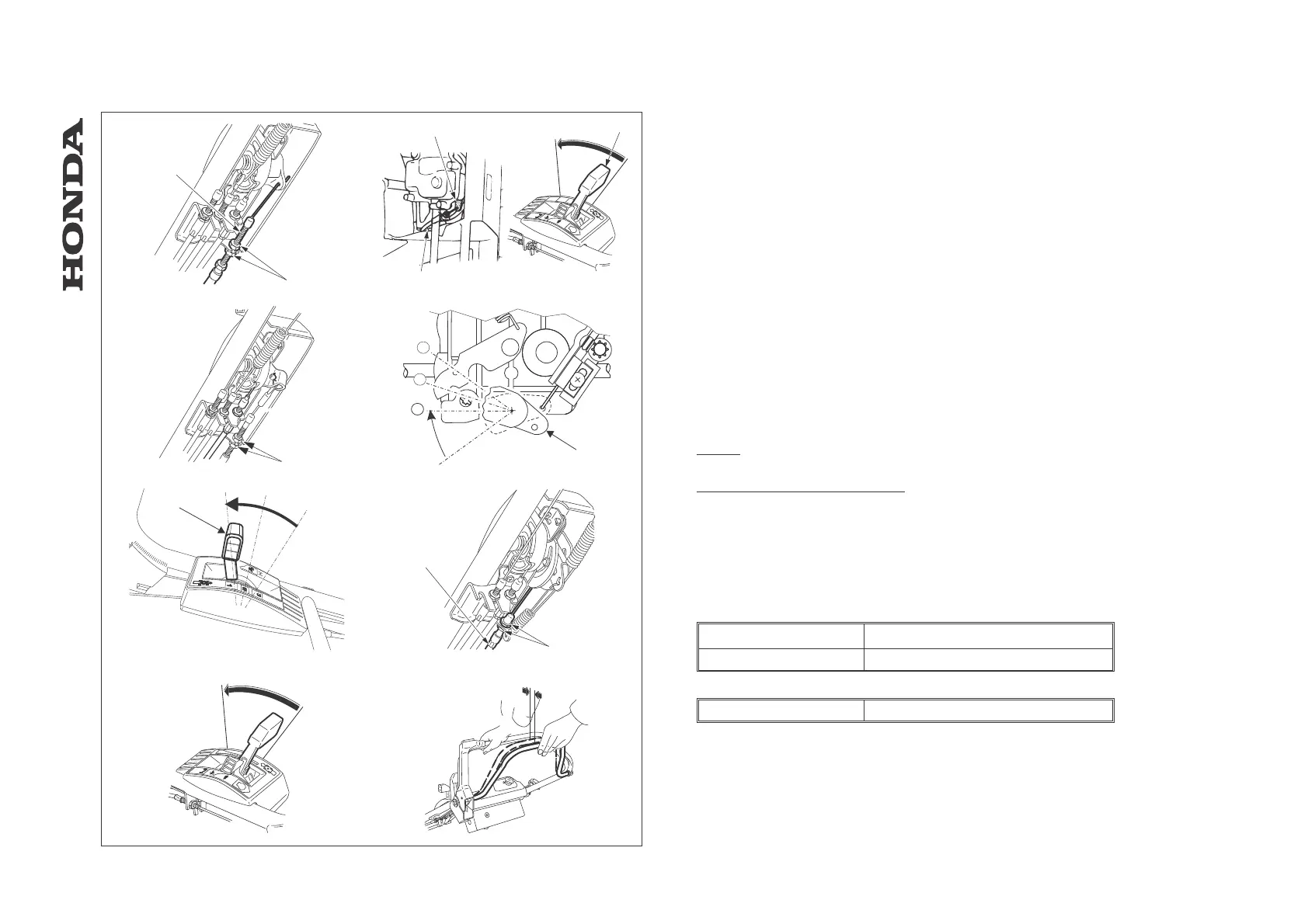

3.7 Shift cable (except Q type)
a. S type
1. Stop the engine and remove the spark plug cap.
2. Loosen the shift cable lock nut [2] completely.
3. Tilt the mower and set the transmission in 2nd (move the shift arm [3] toward the cable
stay).
4. Raise mower, set the shift lever [4] to the center of 2nd position mark and tighten the
shift cable lock nuts [2] securely.
5. Verify that the shift lever operates smoothly.
6. Install the spark plug cap and start the engine, and verify that the shift lever engages
1st and 2nd gear. Readjust if necessary.
b. TME type
1. Stop the engine and remove the spark plug cap.
2. The shift lever [5] must be in ligne with the “1" mark on the case when it is pulled to its
maximum rearward position.
3. All three of the shift lever’s positions must correspond to the three positions of the
transmission’s selector arm [6].
4. If adjustement is required, turn the adjustment nuts [7] accordingly.
NOTE:
Install the spark plug cap and start the engine, and verify that the shift lever
engages. Readjust if necessary.
c. H type HRD535 - HRD536/K1/K2
1. Stop the engine and remove the spark plug cap.
2. Make sure that the cables routing properly and cable bands are set in the place
correctly (ch. 15.4).
3. Set the shift lever to the fastest position [8] and loosen the lock nuts.
4. Turn the lock nuts [9] to make the drive clutch lever clearance 1.5 - 6.5 mm.
5. Tighten the lock nuts securely.
6. Verify the highest speed. If it does fall outside the specified listed below.
Maximum engine speed
2 900 rpm
Mower driving speed 1.3 - 1.5 m/s
[10] Clearance 1.5 - 6.5 mm
-27-
HRA536 - HRD535 - HRD536
[1]
[2]
[
3
]
[4]
[
1
]
S
TO
P
2
1
[
7
]
3
2
1
[6]
2
- MAINTENANCE
[
10
]
STO
P
[
8
]
[1]
[9]
[5]
+0
- 100

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
