Honda HRD536 User Manual

3.11 Fuel filter
Petrol is extremely flammable and explosive under certain conditions. Do not smoke
or allow flames or sparks in the work area.
1. Drain petrol and remove the fuel tank.
2. Visually inspect the fuel filter in the fuel tank.
3. Clean the fuel filter if it is contaminated with dirt.
3.12 Blade
Blade will start spinning if the Rotostop lever is pulled back while the engine is
running.
Stop the engine and disconnect the spark plug cap before inspecting the blade or
placing your hands near the cutter housing.
Wear heavy gloves to protect your hands when handling the blade.
1. Move the throttle lever to “STOP” position and turn the fuel shut-off valve (HRA536 -
HRD535K1/K2 - HRD536/K1/K2), drain the carburetor.
2. Tilt the mower so the carburetor side up.
3. Check for loose the blade screws and blade holder screw, retighten if necessary.
TIGHTNING TORQUE: 55 N.m
4. Inspect the blade for signs of wear or damage. A blade that is worn out, bent, cracked,
or other damaged must be replaced. A dull blade can be sharpened (ch. 4.6).
Worn or damaged blade can break and throw pieces with great force. Thrown blade
pieces can seriously injure you. Replace worn or damaged blade.
Use genuine Honda replacement blade.

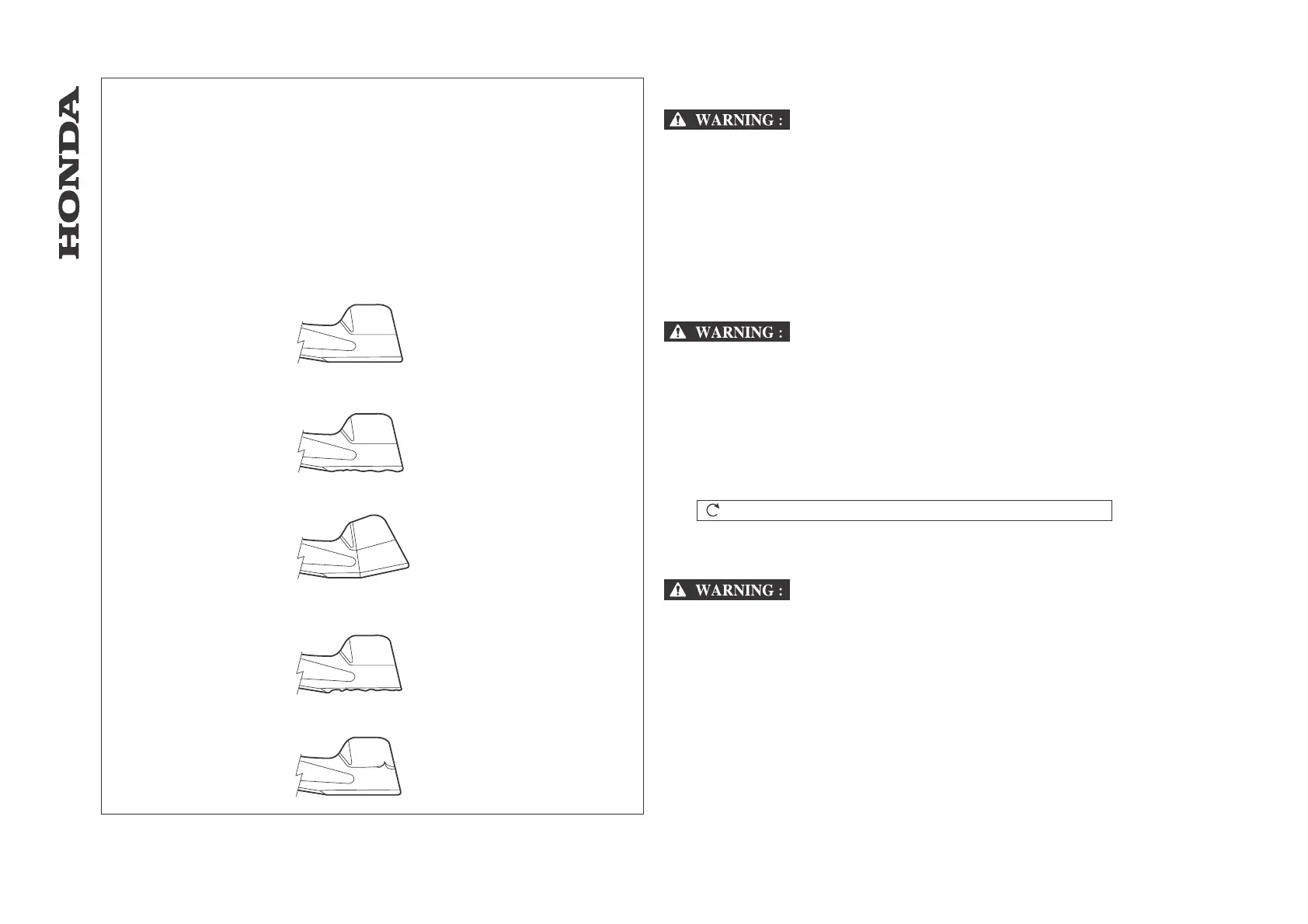

[1] NORMAL
[2] DULL CUTTING EDGE
[3] BENT
[4] EXCESSIVE WORN
[5] CRACKED
-30-
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
- MAINTENANCE

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
