13. FRONT WHEEL / REAR WHEEL

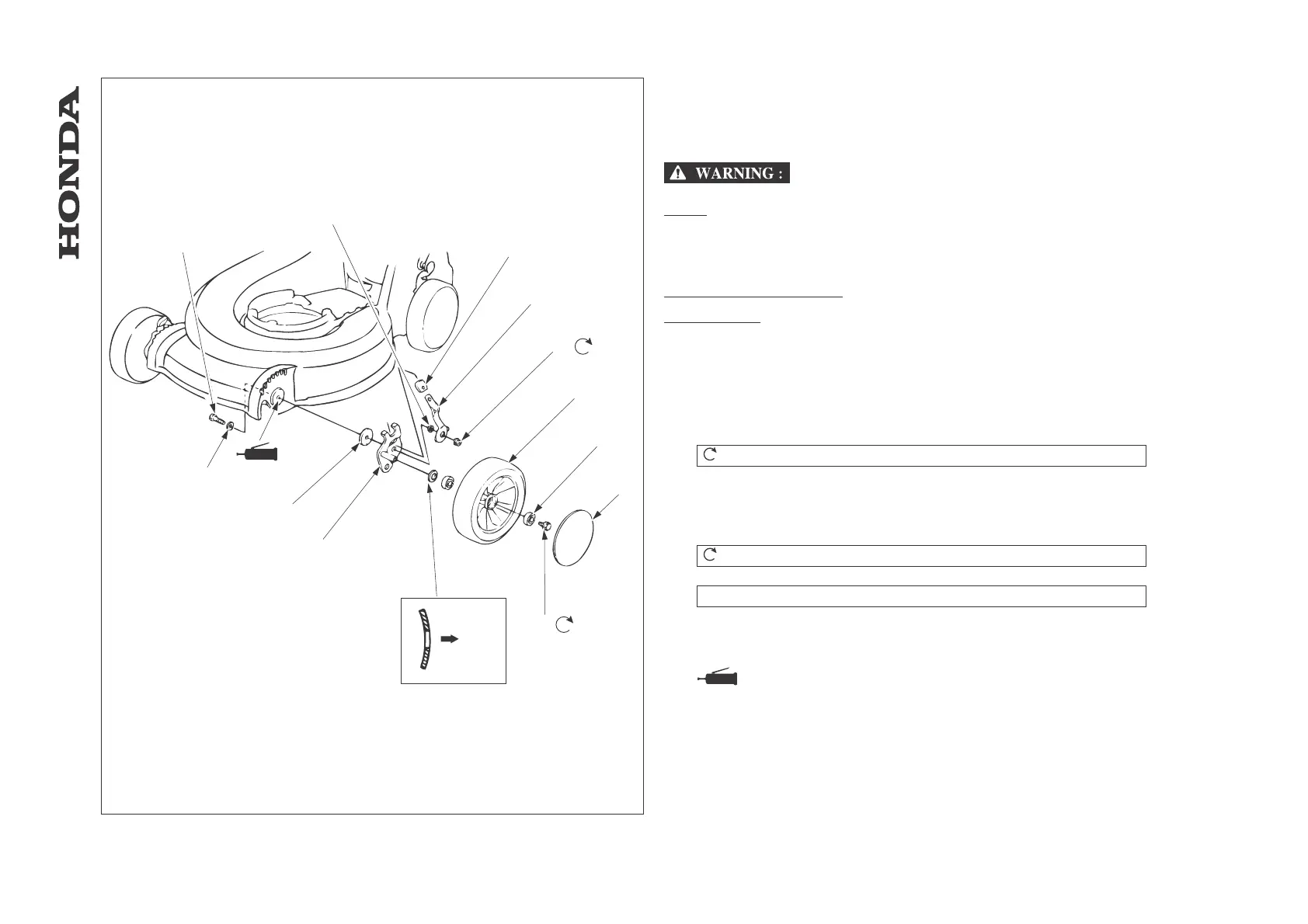

13.1 Front wheel
a. Disassembly / Reassembly
Wear heavy gloves to protect your hand when servicing near the blade.
NOTE:
The front wheels servicing can be done with the engine on the cutter housing.
Place the mower on wooden blocks and support the housing securely.
Do not turn upside down.
HRD535/K1 (except Q type)
HRD536/K1/K2
[1] ADJUSTER CENTER SCREW, 8 mm (2)
[2] COLLAR (2)
[3] ADJUSTER GRIP (2)
[4] FRONT ADJUSTER LEVER (2)
[5] FLANGE NUT, 8 mm (2)
TIGHTNING TORQUE: 25 N.m
[6] FRONT WHEEL ASSEMBLY (2)
[7] WHEEL BEARING (4)
[8] FRONT WHEEL CAP (2)
[9] WHEEL SCREW (2)
TIGHTNING TORQUE: 24 N.m
[10] WHEEL WASHER (2)
REASSEMBLY: Install the washer as shown.
[10]-1 WHEEL SIDE
[11] FRONT ADJUSTER ARM (2)
[12] WASHER, 42 x 8.5 mm (2)
[13]
8 mm WASHER (2)
-82-
HRA536 - HRD535 - HRD536
GREASE
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8
]
[9]
[10]
[10]-1
[11]
[12]
[13]
24
25
- FRONT WHEEL / REAR WHEEL
GREASE
