15.3 Control lever

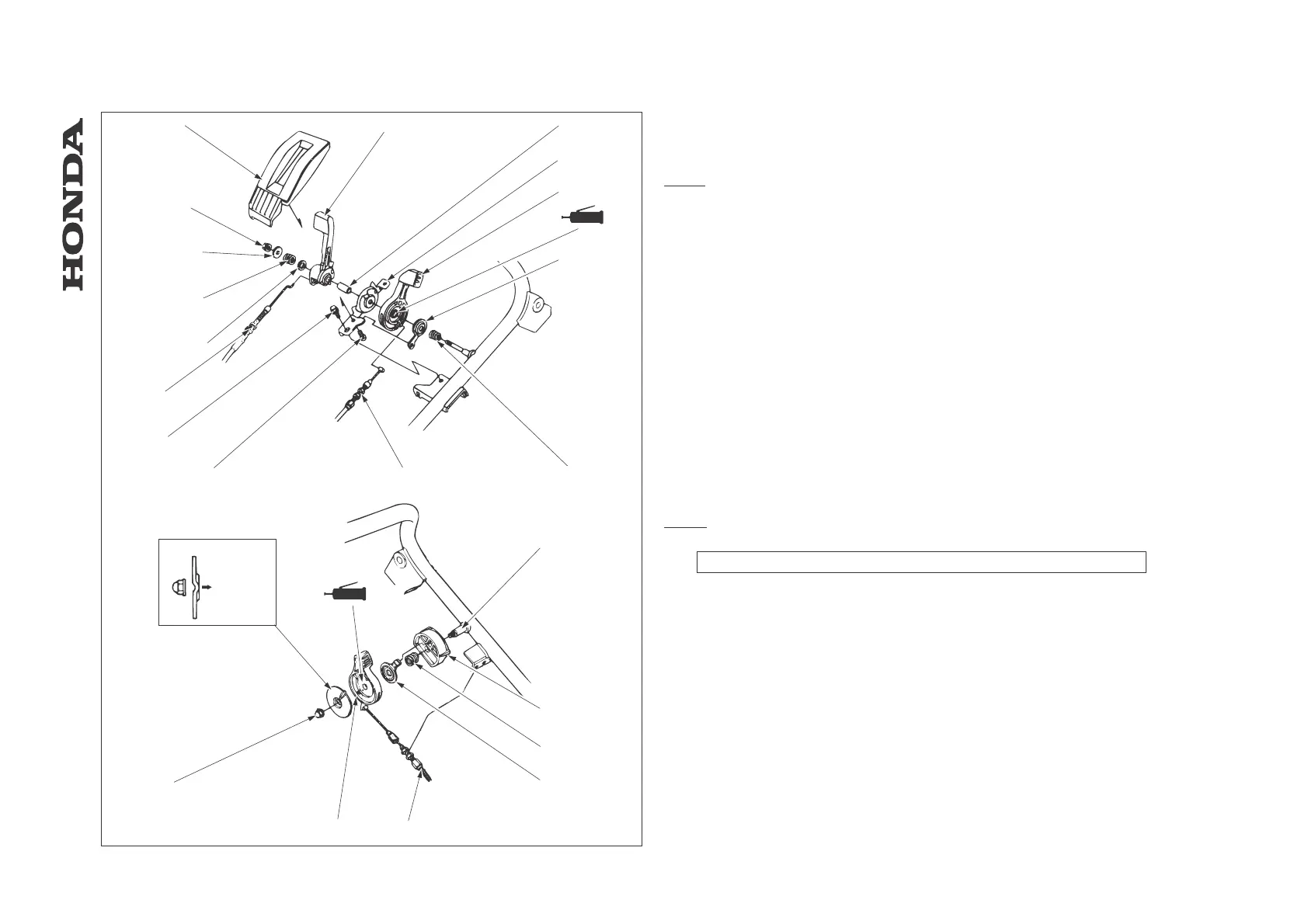

a. Disassembly / Reassembly
S type
[1] CONTROL COVER
[2] SHIFT LEVER
[3] COLLAR
[4] STOPPER PLATE
[5] THROTTLE LEVER
[6] SPRING SEAT
[7] SPRING
[8] THROTTLE CABLE
[9] TAPPING SCREW,5x12mm(2)
[10] SCREW,6x10mm
[11] SHIFT CABLE
[12] PLAIN WASHER, 10 mm
[13] SHIFT LEVER SPRING
[14] PLAIN WASHER, 6 mm
[15] FLANGE NUT, 6 mm
Q type
[16] THROTTLE LEVER PLATE
REASSEMBLY: Align the cut-out in the throttle shaft as shown.
[16]-1 THROTTLE LEVER SIDE
[17] THROTTLE LEVER SHAFT
[18] CONTROL COVER
[19] SPRING
[20] SPRING SEAT
[21] THROTTLE CABLE
[22] THROTTLE LEVER
[23] CAP NUT, 6 mm
- 109 -
HRA536 - HRD535 - HRD536
GREASE
GREASE
[1]
[
2
]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[
22
]
[23]
[16]-1
- HANDLE / CONTROL LEVERS
