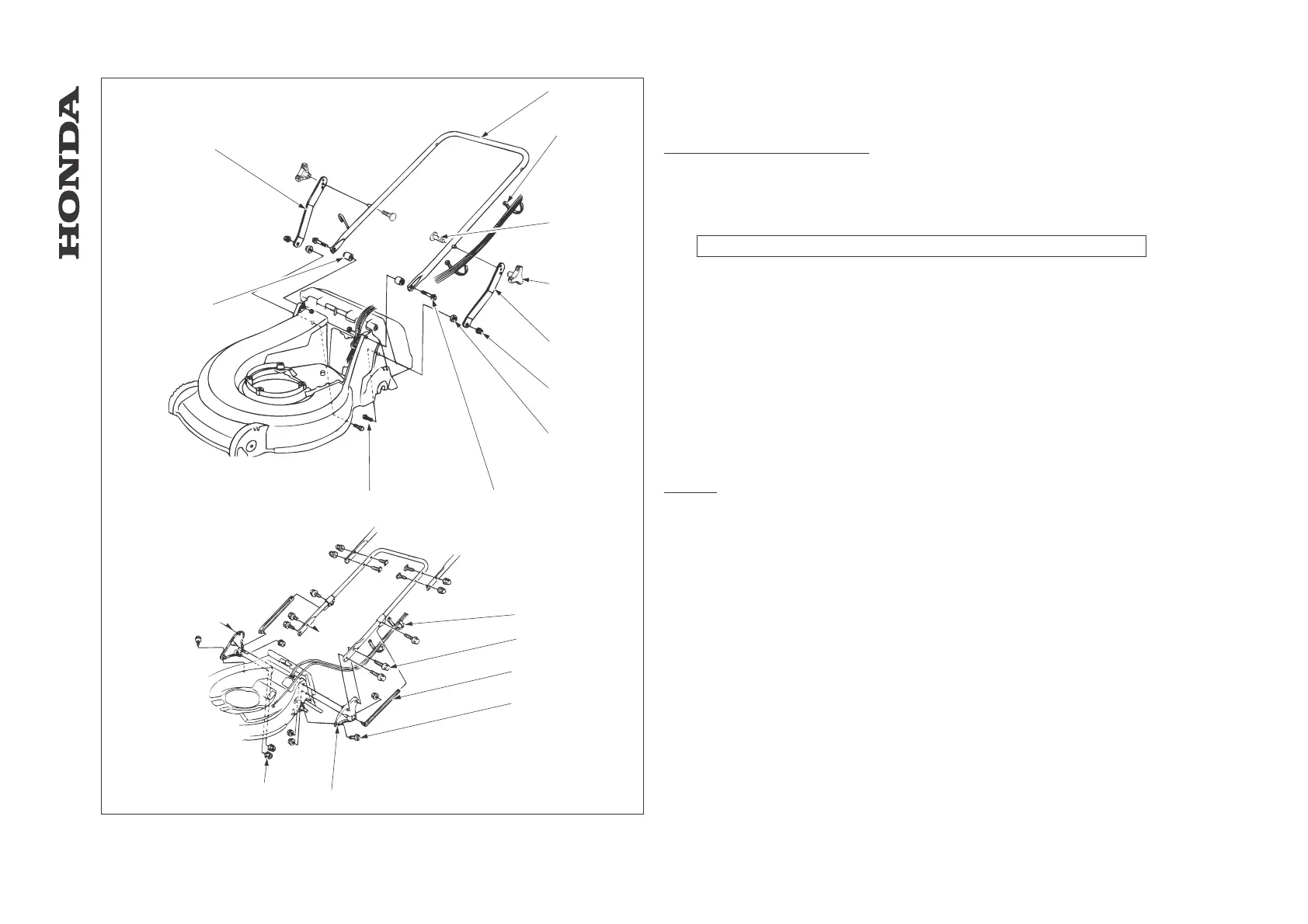

15.2 Lower handle
a. Disassembly / Reassembly
HRD535/K1/K2 - HRD536/K1/K2
[1] RIGHT HANDLE SUPPORT
[2] LOWER HANDLE
[3] WIRE BAND (2)
REASSEMBLY: ch. 15.4
[4]
HANDLE HOLDER SCREW (2) (HRD535 F/N 8021986 ~ HRD536 F/N 8010818 ~) - HRD535K1/K2
[5]
HANDLE JOINT KNOB (2) (HRD535 F/N 8021986 ~ HRD536 F/N 8010818 ~) - HRD535K1/K2
[6] LEFT HANDLE SUPPORT
[7] SELF-LOCKING NUT, 8 mm (2)
[8] HANDLE SUPPORT COLLAR
[9] SCREW,8x55mm(2)
[10] SCREW,8x25mm(2)
[11] LOWER HANDLE COLLAR (2)
HRA536
[12] WIRE BAND
[13] SCREW,8x16mm(2)
[14] HANDLE SUPPORT STAY
[15] SCREW,8x16mm(2)
[16] LEFT HANDLE SUPPORT
[17] NUT, 8 mm (4)
- 108 -
HRA536 - HRD535 - HRD536
[1]
[
2
]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[
16
]
[17]
- HANDLE / CONTROL LEVERS

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
