Honda HRD536 User Manual

2.6 Special tools
TOOL NAME TOOL NUMBER APPLICATION
[1]
Float level gauge 07401-0010000 Float level inspection
[2]
Attachment, 37 x 40 mm 07746-0010200
Crankshaft oil seal installation
(HRD535/K1/K2)
[3]
Attachment, 42 x 47 mm 07746-0010300
Crankshaft oil seal installation
(HRA536 - HRD536/K1/K2)
[4]
Attachment, 52 x 55 mm 07746-0010400 Crankshaft bearing installation
[5]
Pilot, 22 mm 07746-0041000
Crankshaft bearing installation
(HRD535/K1/K2)
[6]
Pilot, 25 mm 07746-0040600
Crankshaft bearing installation
(HRA536 - HRD536/K1/K2)
[7]
Driver handle 07749-0010000 Driver for tools 2, 3, 4, 7 and 8
[8]
Valve seat cutter, 45°
07780-0010200
07780-0012800
Valve seat reconditioning
(HRD535/K1/K2)
Valve seat reconditioning
(HRA536 - HRD536/K1/K2)
[9]
Valve seat cutter, 32°
07780-0012800
07780-0012100
Valve seat reconditioning
(HRD535/K1/K2)
Valve seat reconditioning
(HRA536 - HRD536/K1/K2)
[10]
Valve seat cutter, 60°
07780-0014300
07780-0014000
Valve seat reconditioning
(HRD535/K1/K2)
Valve seat reconditioning
(HRA536 - HRD536/K1/K2)
[11]
Cutter holder 07781-0010101
[12]
Valve guide driver 07942-8920000 Valve guide replacement
[13]
Valve guide reamer 07984-2000001 Valve guide reaming
[14]
Rotor puller
07935-8050004
Flywheel removal (HME, QME, SME,
TME types)
[15]
Pin driver 5 mm 07744-0010500 Starter pin removal
[16]
Screw driver Resistorix (T25)
07703-0010500 or
commercially available
Engine maximum speed adjustment
[17]
Screw driver handle 07703-0010300
[18]
Digital multimeter
KS-AHM-33-003 or
commercially available
Electrical parts testing
-14-
HRA536 - HRD535 - HRD536
- SERVICE INFORMATION

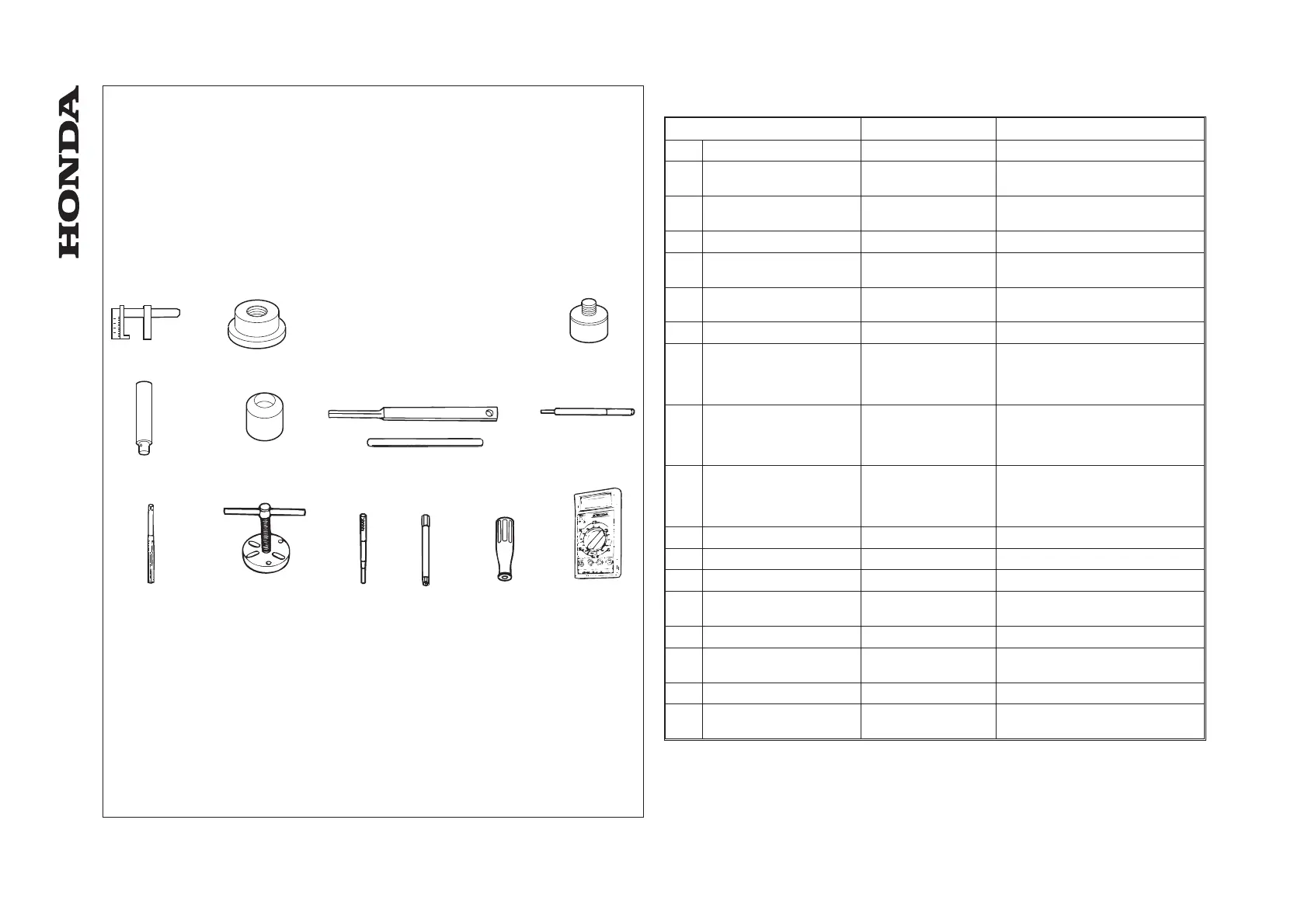

[1] [3][2] [4] [5] [6]
[7] [9][8] [10] [11] [12]
[13] [14] [15] [16] [17] [18]
