Installation - Mounting and Dimensions
Fusion4 MSC-L Part No.: 4418309_Rev09
4 - 4 Installation & Operation Manual
Honeywell
7. Lifting eyes facility for easy installation, as illustrated in the following
figure. (This facility is
not allowed for permanent mounting as it is used
only for installation purpose).

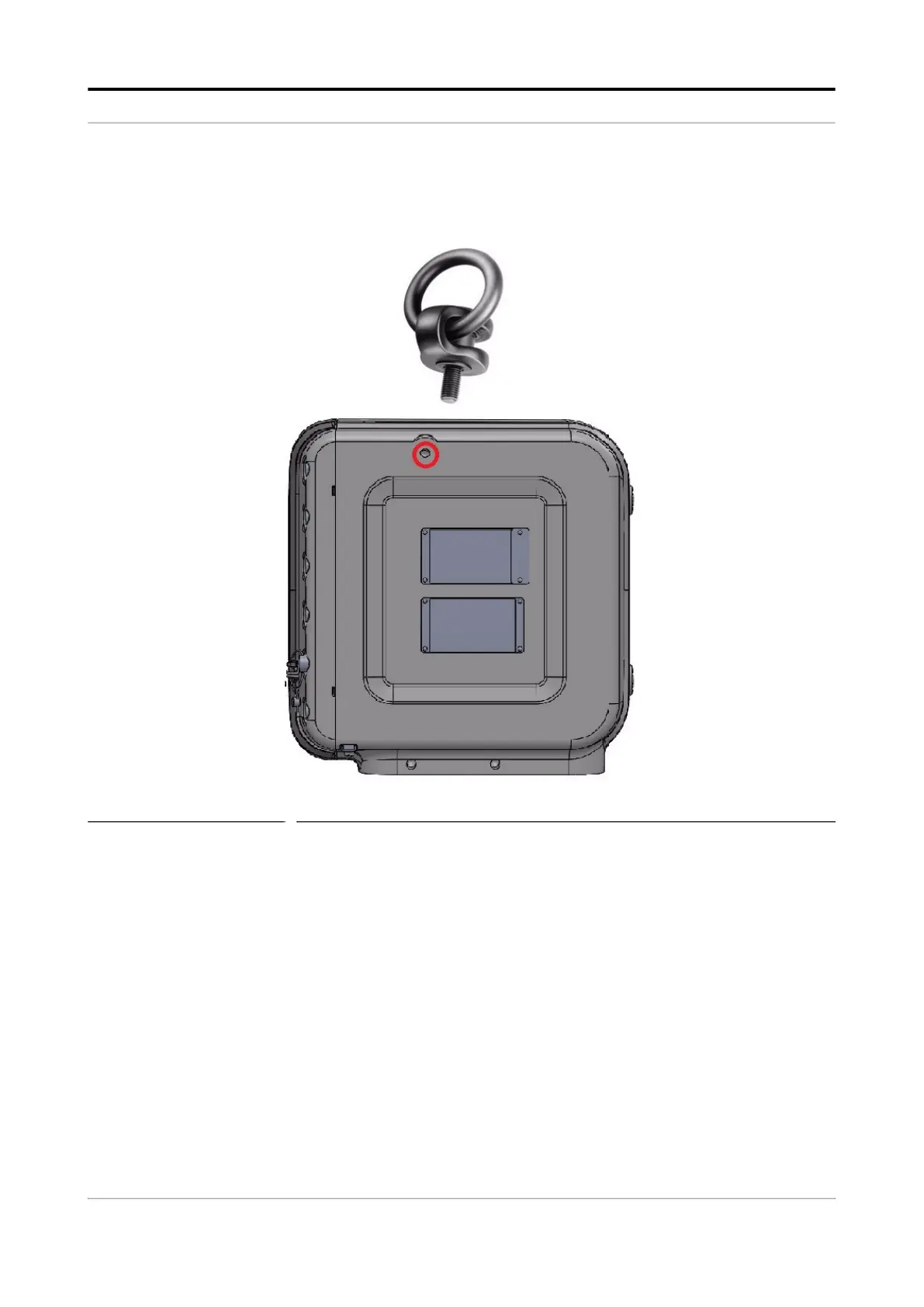

FIGURE 4-1 Lifting eyes facility for easy installation
NOTE: The ring bolt is rotatable, therefore the load direction
is adjustable and unintended tightening or loosening
is negated. The higher load rating ring bolts allows
for smaller connection threads.
The lifting eye thread size is M10.
8. Three external grounding facilities are available to ground the MSC-L
enclosure with an external ground reference/point. See , for more
information.
9. Internal grounding is available for each gland entry to ground the
internal electronics and ground/earth signal of the cables. See for
more information.
10. Metric or the NPT cable entry layout. See section 4.2 - Gland Entries,
for more information.
