Model 2701 User’s Manual Basic DMM Operation 3-9

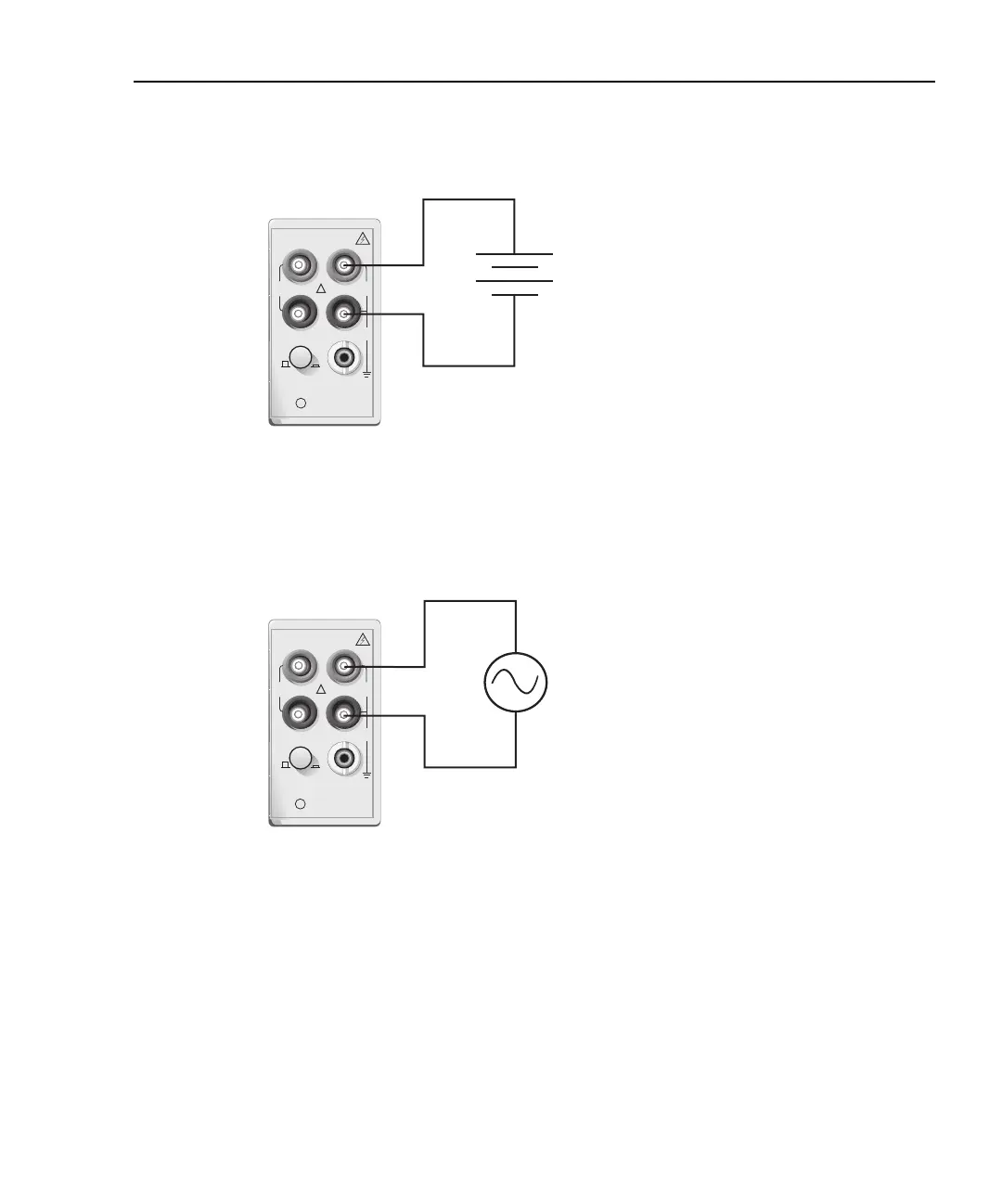

Figure 3-2
DCV and ACV connections using front panel inputs
Input Impedance = 1MΩ || <100pF
Caution: Maximum Input = 750V RMS, 1000V peak, 8 x 10
7
V • Hz
Input Resistance = 10MΩ on 1000V and 100V ranges;
>10GΩ on 10V, 1V, and 100mV ranges.
Caution: Maximum Input = 1000V peak
A. DCV Connections
B. ACV Connections
Model 2701
DC
Voltage
Source
Model 2701
AC
Voltage
Source
!
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
R
!
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
R
CAT I
CAT I
