Model 2701 User’s Manual
Model 7700 Connection Guide
B-9

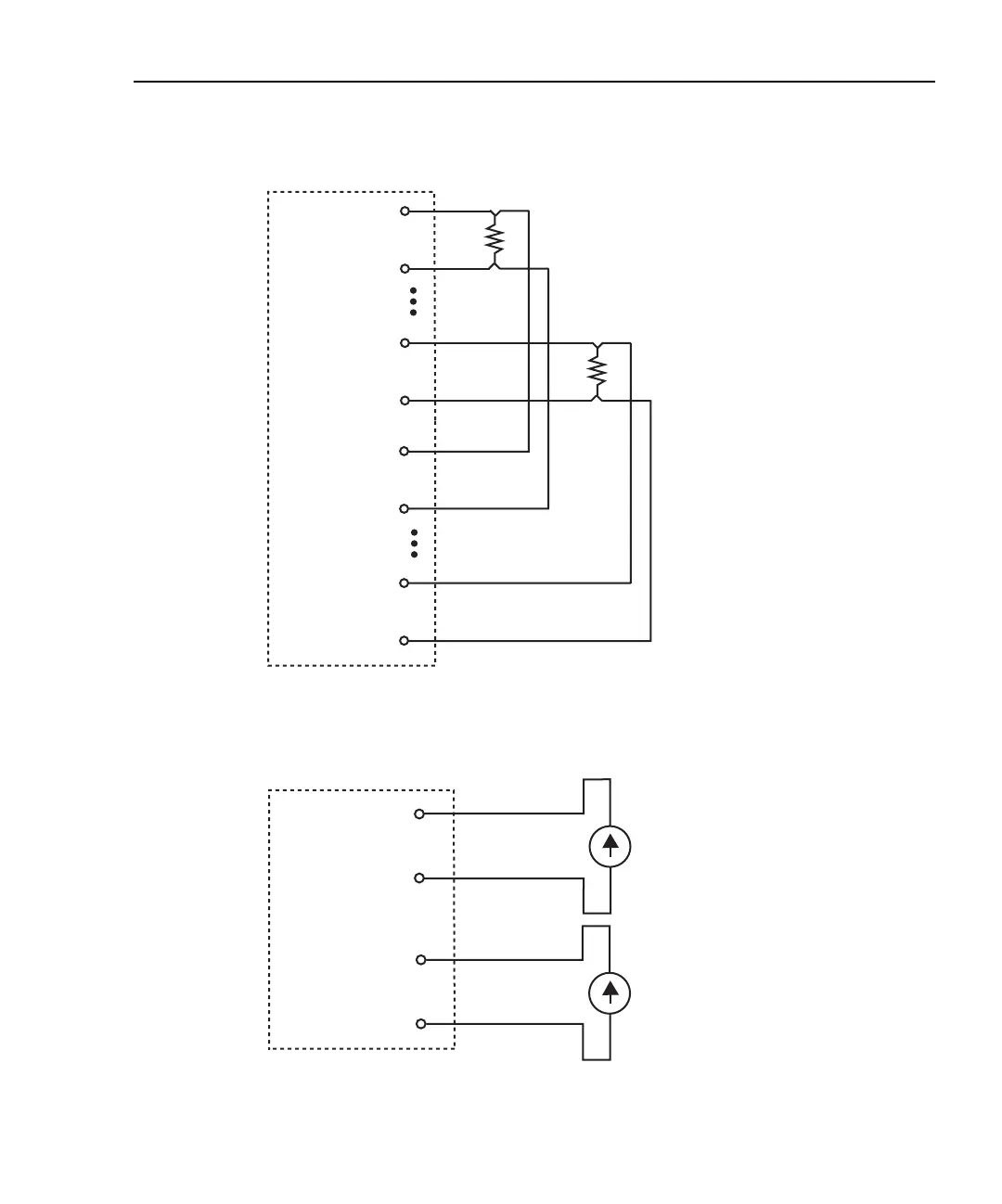

Figure B-7
Ω
4-Wire and RTD connections
Figure B-8
Current connections (AC or DC)
Channel 1
HI
LO
Channel 10
HI
LO
(Channels 2-9)
Channel 11
HI
LO
Channel 20
HI
LO
(Channels 12-19)
Resistor or
4-Wire R
TD
Resistor or
4-Wire R
TD
Channel 21
HI
LO
Channel 22
HI
LO
428
430
