1-14 Getting Started Model 2701 User’s Manual
7 Front panel inputs:
INPUT HI and LO Used for DCV, ACV, Ω2, CONT, FREQ, PERIOD, and thermocouple/thermistor
TEMP measurements.
SENSE HI and LO Use with INPUT HI and LO for Ω4 and RTD TEMP measurements.
AMPS Use with INPUT LO for DCI and ACI measurements.
Amps fuse holder Holds current fuse for front panel amps input.
Rear panel summary
The rear panel of Model 2701 is shown in Figure 1-2. As shown, a slot cover is installed
on slot 2.

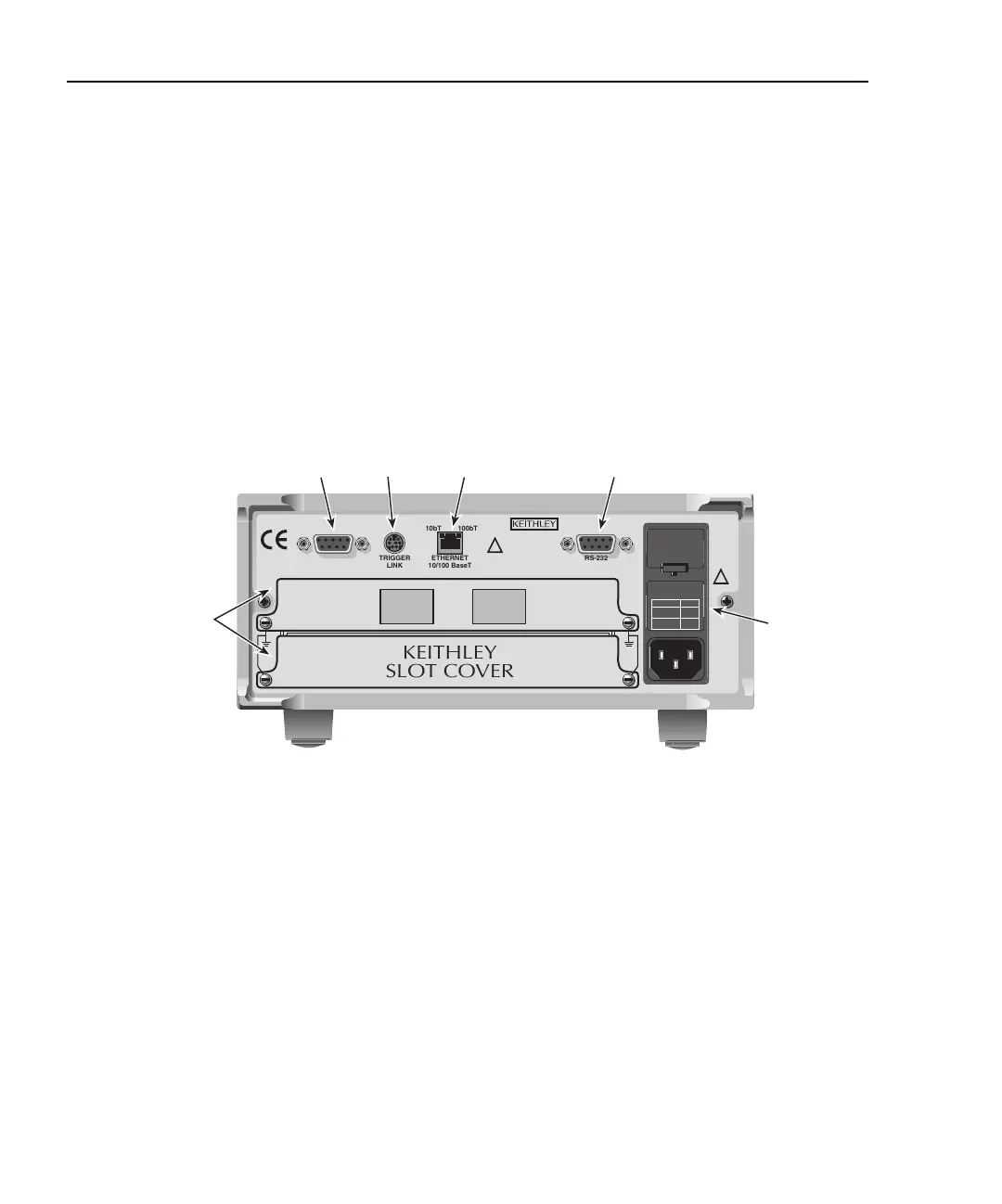

Figure 1-2
Model 2701 rear panel
5
6
1
2
3
4
KEITHLEY
SLOT COVER
TRIGGER
LINK
ETHERNET
10/100 BaseT
10bT 100bT
RS-232
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
!
!
SLT
2
SLT
1
DIGITAL I/O
(EXT. TRIG.)
CAT I
~LINE RATING
50, 60, 400Hz
80VA MAX
250mAT
125mAT
220V
240V
100V
120V
FUSE LINE
