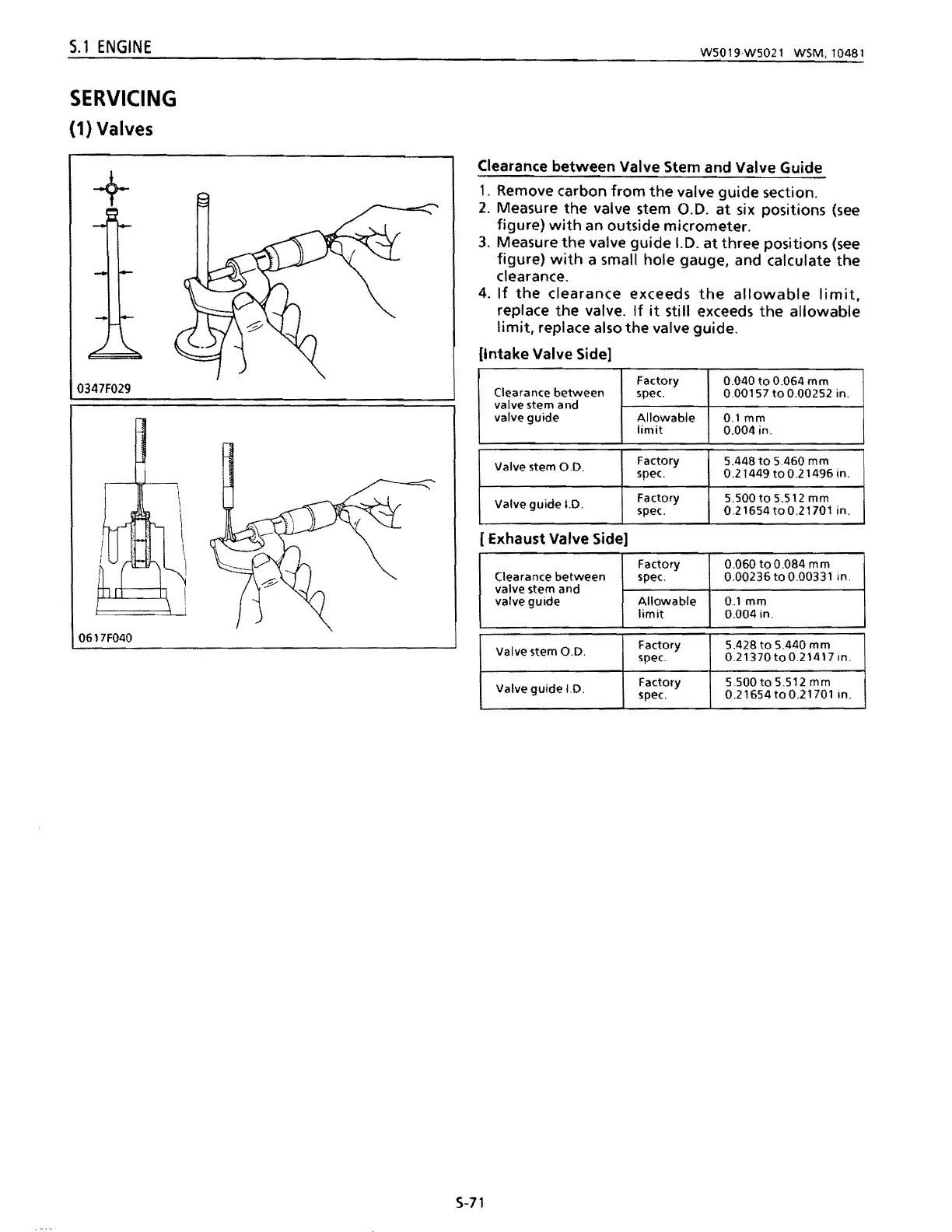

Kubota W5019-T User Manual

S.l ENGINE
W5019W5021 WSM.10481
SERVICING
(1) Valves
+
0347F029
0617F040
Clearance between Valve Stem and Valve Guide
1. Remove carbon from the valve guide section.
2. Measure the valve stem O.D. at six positions (see
figure) with an outside micrometer.
3. Measure the valve guide I.D. at three positions (see
figure) with a small hole gauge, and calculate the
clearance.
4. If the clearance exceeds the allowable limit.
replace the valve. If it still exceeds the allowable
limit, replace also the valve guide.
[Intake Valve Side]
Clearance between
Factory
spec.
0.040 to 0.064 mm
0.00157 to 0.00252 in.
valve stem and
valve guide
Allowable
limit
0.1 mm
0.004 in.
Valve stem
0.0.
Factory
spec.
5.448 to 5.460 mm
0.21449
to 0.21496 in.
Valve guide
1.0.
Factory
spec.
5.500 to 5.512 mm
0.21654
to 0.21701 in.
[ Exhaust Valve Side]
Clearance between
valve stem and
valve guide
Factory
spec.
Allowable
limit
0.060 to 0.084 mm
0.00236 to 0.00331 in.
0.1 mm
0.004 in.
Valve stem
0.0.
Factory
spec.
5.428
to 5.440 mm
0.21370to021417 in.
Valve guide
1.0.
Factory
spec.
5500to5.512mm
0.21654toO.21701m.
S-71
