S.l ENGINE
WS019WS021 WSM,10481

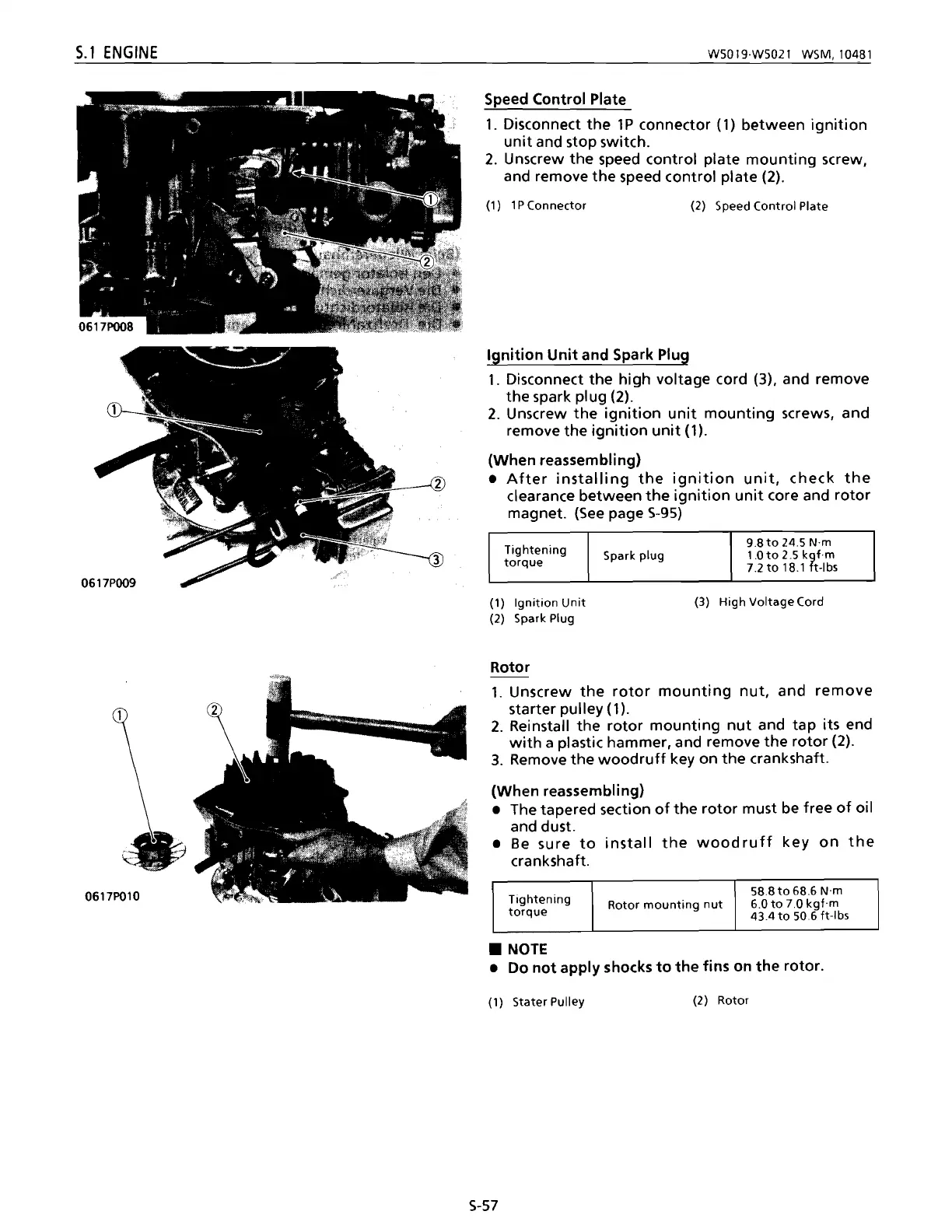

Speed Control Plate
1. Disconnect the 1 P connector (1) between ignition
unit and stop switch.
2. Unscrew the speed control plate mounting screw,
and remove
the speed control plate (2).
(1) 1 P Connector
(2) Speed
Control Plate
Ignition Unit and Spark Plug
1. Disconnect the high voltage cord (3), and remove
the spark plug (2).
2. Unscrew the ignition unit mounting screws, and
remove the ignition unit (1).
(When reassembling)
• After installing the ignition unit, check the
clearance between the ignition unit core and rotor
magnet. (See page 5-95)
Tightening
torque
Spark plug
9.8 to 24.5 N·m
1.0
to 2.5 kff.m
7.2to18.1 t·lbs
(1) Ignition Unit
(3) High Voltage Cord
(2) Spark Plug
Rotor
1. Unscrew the rotor mounting nut, and remove
starter pulley (1).
2. Reinstall the rotor mounting nut and tap its end
with a plastic hammer, and remove the rotor (2).
3. Remove the woodruff key on the crankshaft.
(When reassembling)
• The tapered section
of the rotor must be free of oil
and dust .
•
Be sure to install the woodruff key on the
crankshaft.
Tightening
torque
Rotor mounting nut
58.8 to 68.6 N·m
6.0
to 7.0 kgf·m
43.4 to 50.6 ft-Ibs
• NOTE
• Do not apply shocks to the fins on the rotor.
(1) Stater pulley
(2) Rotor
5-57
