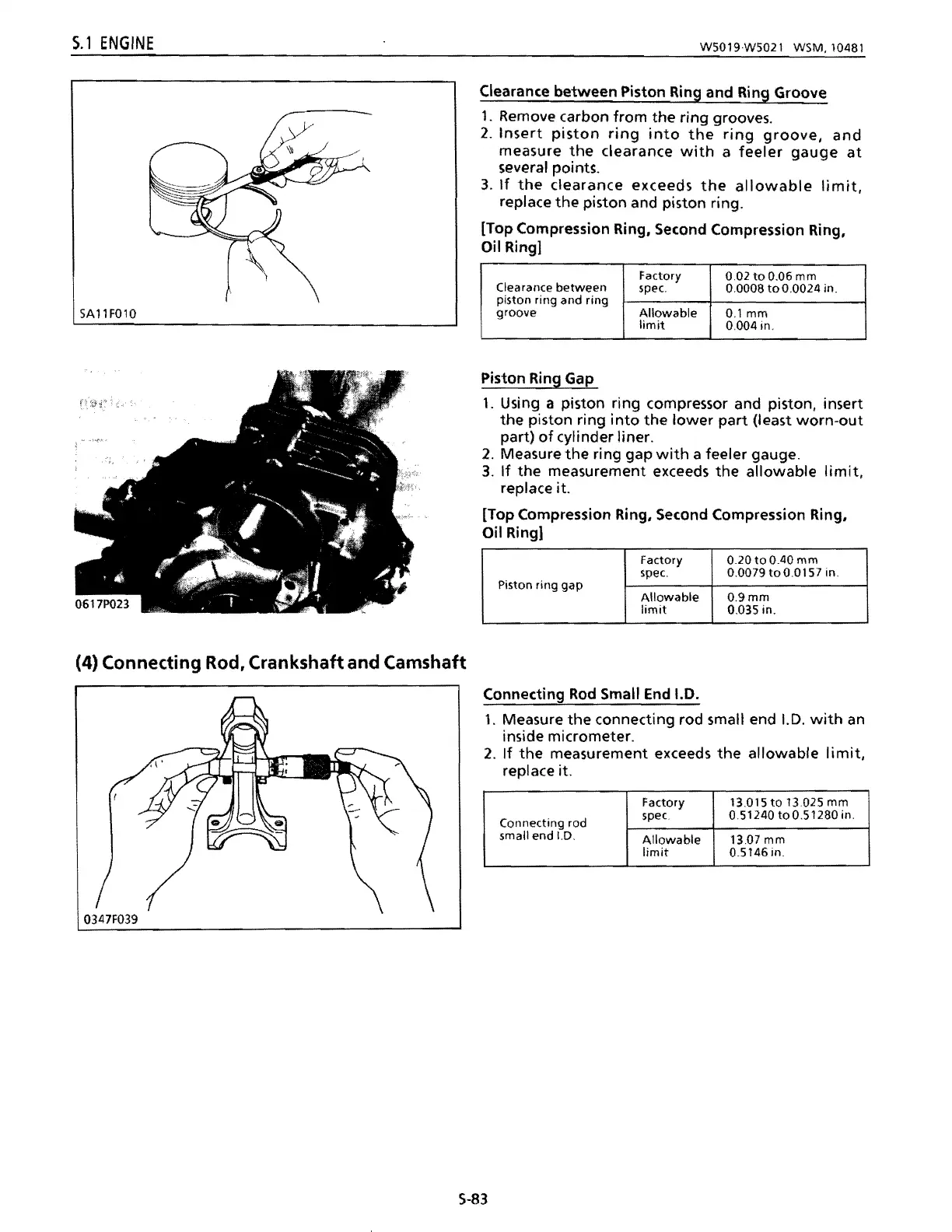

S.l ENGINE
W5019W5021 WSM,10481
SAllF010
Clearance between Piston Ring and Ring Groove
1. Remove carbon from the ring grooves.
2. Insert piston ring into the ring groove. and
measure the clearance with a feeler gauge at
several points.
3. If the clearance exceeds the allowable limit.
replace the piston and piston ring.
[Top Compression Ring. Second Compression Ring.
Oil Ring]
Clearance
between
piston ring
and ring
Factory
spec.
0.02
to 0.06 mm
0.0008
to 0.0024 in.
groove
Allowable
limit
0.1 mm
0.004 in.
Piston Ring Gap
1. Using a piston ring compressor and piston, insert
the piston ring into the lower part (least worn-out
part) of cylinder liner.
2. Measure the ring gap with a feeler gauge.
3. If the measurement exceeds the allowable limit,
replace it.
[Top Compression Ring. Second Compression Ring.
Oil Ring}
Piston ring gap
Factory
spec.
0.20
to 0.40 mm
0.0079 to 0.0157 in.
Allowable
limit
0.9mm
0.035 in.
(4) Connecting Rod, Crankshaft and Camshaft
Connecting Rod Small End 1.0.
1. Measure the connecting rod small end 1.0. with an
inside micrometer.
2. If the measurement exceeds the allowable limit.
replace it.
Connecting rod
Factory
spec
13015 to 13.025 mm
051240 to 0.51280 in.
small end 1.0.
Allowable
limit
1307 mm
0.SI46in.
0347F039
5-83
